Robosub Power PCB layout, top view — open source board by ryos17

About the Robosub Power PCB

Robosub Power is an open source PCB design by ryos17, published on GitHub. It is a 2-layer board measuring 120 × 60 mm, with 45 components from 23 distinct parts.

Other key parts include the INA300AIDSQT, SN74LVC1G97DBVR, AUIR3241STR, BSC0702LSATMA1 and NVTR01P02LT1G. By type, the board carries 11 connectors, 11 resistors, 8 ICs, 6 capacitors, 3 diodes and 2 jumpers.

It belongs with the power & battery designs in this gallery.

From the project

Stanford Robosub Electrical Repository

The first hardware generation of the Stanford RoboSub vehicle. This generation is deprecated — the physical sub no longer exists — and the design files are kept here for reference only. New work happens in gen2/ (current platform) and gen3/ (in progress).

The three gen 1 boards live under PCBs/:

- ComputePowerBoard/ — regulated power supply for the compute stack. - PowerDistributionBoard/ — takes battery input and distributes it to the vehicle's power rails. - TeensyBoard/`** — Teensy 4.0 carrier with the audio shield, the main microcontroller board for this generation.

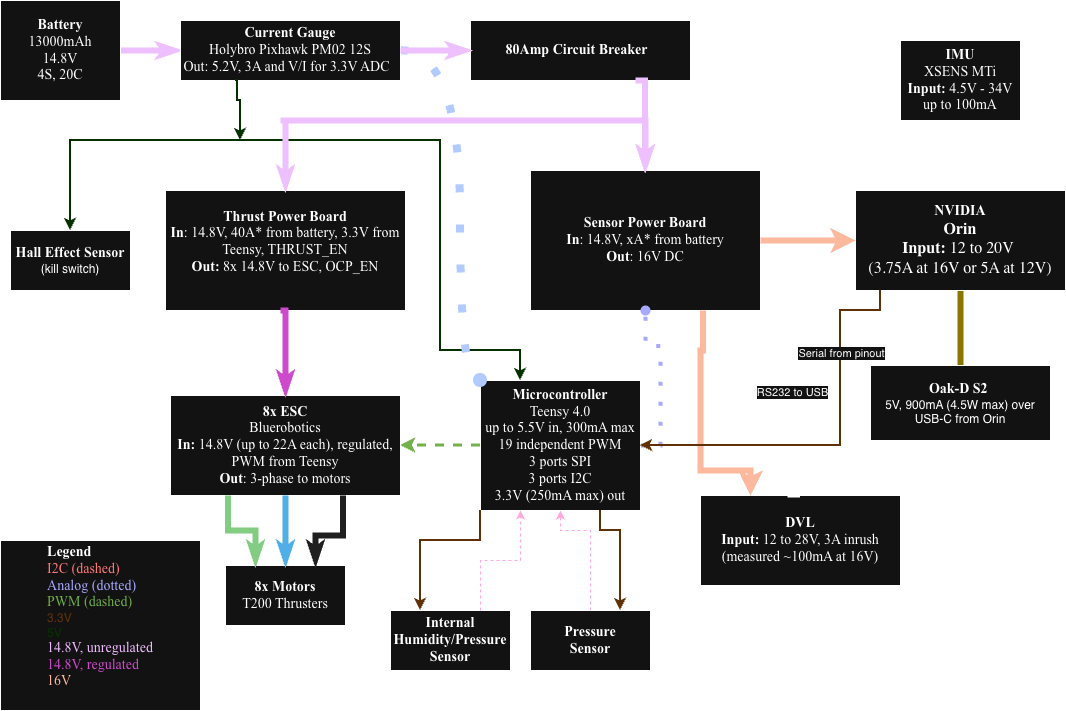

Robosub Power, from the project README
From the project README

Main components on the Robosub Power

INA300AIDSQTSN74LVC1G97DBVRAUIR3241STRBSC0702LSATMA1NVTR01P02LT1G

Robosub Power bill of materials (BOM)

45 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
INA300AIDSQT
Texas Instruments
U1
1
SN74LVC1G97DBVR
Texas Instruments
U2
1
AUIR3241STR
Infineon Technologies
U3
3
BSC0702LSATMA1
Infineon Technologies
U4, U5, U6
2
NVTR01P02LT1G
onsemi
U7, U8
10
1135333
Pheonix Contact
J1, J2, J3, J4, J5, J6, J7, J8 +2
1
Conn_01x05_Pin
J11
1
SBRT15U50SP5-13
Diodes Incorporated
CR1
2
SOLDERJUMPER_2_OPEN
SolderJumper_2_Open
JP4, JP5
2
2mOhm
Vishay Dale
WSLP59312L000FEA_1, WSLP59312L000FEA_2
1
1SMA5931BT3
onsemi
D1
2
IR26-21C_L110_TR8
Everlight Electronics Co Ltd
D2, D3
1
74477420
Würth Elektronik
L1
2
0.1U
0.1u
YAGEO
C1, C2
2
1UF
1uF
Knowles Syfer
C3, C4
2
1u (electrolytic)
Nichicon
C5, C6
3
10K
10k
YAGEO
R1, R3, R4
1
3k
TE Connectivity Passive Product
R2
1
10
YAGEO
R5
1
100
YAGEO
R6
Show 3 more
QtyPartRefs
2
100
110
Susumu
R7, R8
1
0 (100A)
Bourns Inc.
R9
2
110
Susumu
R10, R11

Robosub Power design files

The KiCad project lives in the ryos17/robosub-ee repository on GitHub; these links point at the commit this page was built from.
