Sbc6802
About the Sbc6802 PCB
Sbc6802 is an open source PIC PCB design by ryu10, published on GitHub. It is a 2-layer board measuring 98.3 × 75.6 mm, with 29 components from 19 distinct parts.
Its main chip is the PIC12F1822-IP, from the PIC family. Other key parts include the MC6802, 74LS04, 74LS00, 74LS138 and 28C256 EEPROM. By type, the board carries 12 capacitors, 8 ICs, 4 resistors, 2 connectors, 1 crystal and 1 jumper.

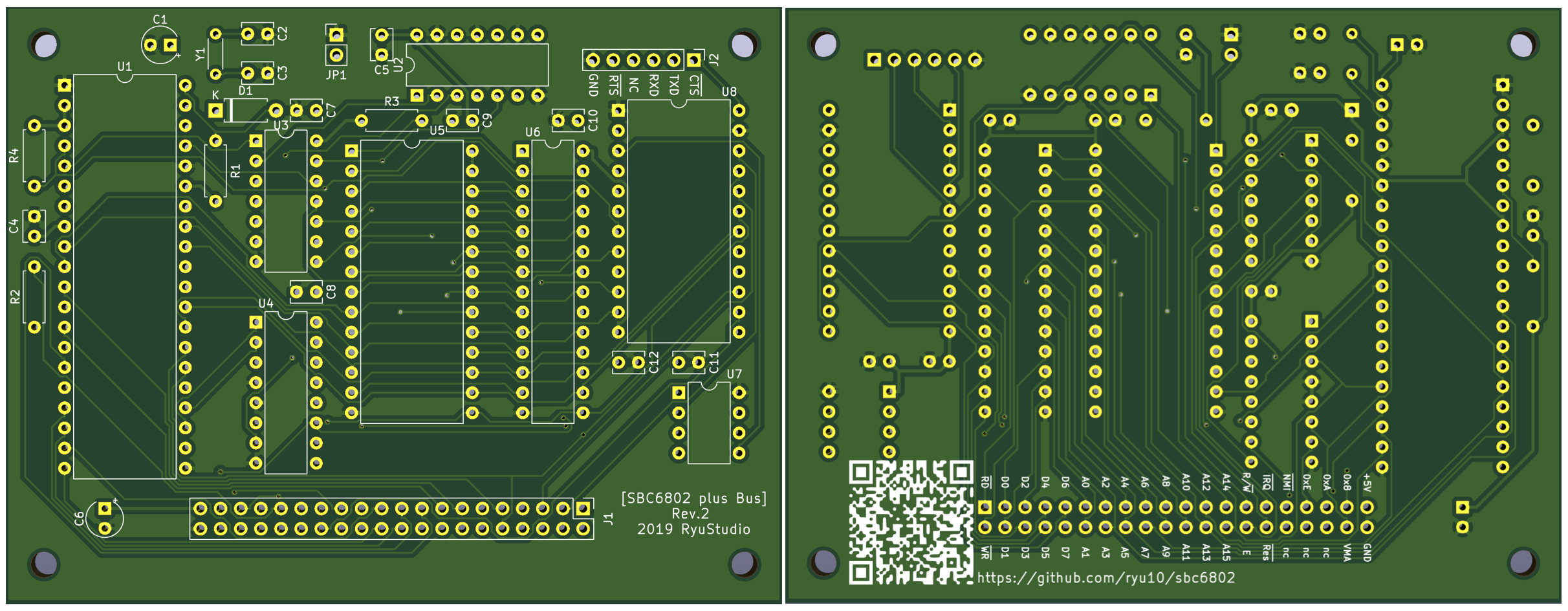

From the project
Single Board Computer based on Motorola 6802
An MC6802-based single board computer. The board design is derived from SBC6800 and SBC6809.
MC6802 1MHz RAM 32KB (0x0000 - 0x7fff) ROM 16KB (0xc000 - 0xffff x two banks, selectable using JP1) ACIA (0x8018/0x8019) * SBC-Bus 2.0 Connector
The following files are included, along with the KiCAD project:
PIC12F1822（U7）can be programmed with found in SBC6800 datapack to generate the clock for 6850 ACIA. The serial port will operate at 9600 bps. ## SBC-Bus
Main components on the Sbc6802
Sbc6802 bill of materials (BOM)
29 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC6802 | DIP-40_W15.24mm | U1 |
| 1 | 74LS04 | DIP-14_W7.62mm | U2 |
| 1 | 74LS00 | DIP-14_W7.62mm | U3 |
| 1 | 74LS138 | DIP-16_W7.62mm | U4 |
| 1 | 28C256 EEPROM | DIP-28_W15.24mm | U5 |
| 1 | 71256 32KB SRAM | DIP-28_W7.62mm | U6 |
| 1 | PIC12F1822-IP | DIP-8_W7.62mm | U7 |
| 1 | MC6850 | DIP-24_W15.24mm | U8 |
| 1 | 4MHz | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | Y1 |
| 1 | Conn_02x20_Odd_Even | PinHeader_2x20_P2.54mm_Vertical | J1 |
| 1 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J2 |
| 1 | Jumper_NO_Small | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | D | D_A-405_P7.62mm_Horizontal | D1 |
| 1 | 10u | CP_Radial_Tantal_D4.5mm_P2.50mm | C1 |
| 2 | 22p | C_Disc_D3.8mm_W2.6mm_P2.50mm | C2, C3 |
| 8 | 0.1u | C_Disc_D3.8mm_W2.6mm_P2.50mm | C4, C5, C7, C8, C9, C10, C11, C12 |
| 1 | 100u | CP_Radial_Tantal_D4.5mm_P2.50mm | C6 |
| 1 | 47k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 3 | 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R3, R4 |
Sbc6802 design files
The KiCad project lives in the ryu10/sbc6802 repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCAD/sbc6802.kicad_pcb
Sbc6802: common questions
What microcontroller does the Sbc6802 use?
The Sbc6802 is built around the PIC12F1822-IP, from the PIC family.
How big is the Sbc6802 PCB?
The Sbc6802 measures 98.3 × 75.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sbc6802?
29 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the Sbc6802 design files?
From the ryu10/sbc6802 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Sbc6802 design in my own project?
The repository has no license, so all rights stay with ryu10. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Sbc6802 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
