Sensor mipi PCB layout, top view — open source FPGA board by ryuz

About the Sensor mipi PCB

Sensor mipi is an open source FPGA PCB design by ryuz, published on GitHub. It is a 4-layer board measuring 44 × 77 mm, with 197 components from 52 distinct parts.

Its main chip is the XC7S6-2FTGB196C, from the FPGA family. Other key parts include the IS25LP016D-JULE, AP3401DNTR-G1, TPS22918DBV, NOIP1SN0300A-QTI and TPS7A2033PDBVR. By type, the board carries 96 resistors, 63 capacitors, 11 ICs, 7 test points, 6 connectors and 6 inductors.

It belongs with the sensors designs in this gallery.

From the project

[KiCAD] Global Shutter High-Speed MIPI-Camera Board (PYTHON300 + Spartan7)

こちらで紹介しておりますグローバルシャッターMIPI高速度カメラの KiCAD による設計データです。

オンセミコンダクター社 PYTHON300イメージセンサー と AMD(Xilinx) の Spartan7 FPGA を用いた研究開発向けの小型のカメラモジュールです。

データシート上は VGA サイズながら 815fps の高速度撮影が可能と記載されているセンサーを利用しており、当方では KV260 と Zybo Z7 に接続して 320x320 サイズで 1000fps 撮像が出来ております。

https://rtc-lab.com/products/rtcl-cam-p3s7-mipi/

他に速度を落として ZYBO と接続できる事や、MIPI-CSI に準拠することも可能なことを確認していますが、まだプロジェクトとして準備できておりませんので今後にご期待ください。

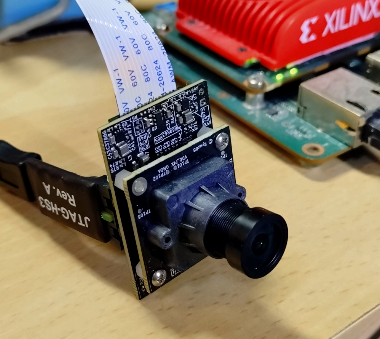

Sensor mipi, from the project README
From the project README

Main components on the Sensor mipi

XC7S6-2FTGB196CIS25LP016D-JULEAP3401DNTR-G1TPS22918DBVNOIP1SN0300A-QTITPS7A2033PDBVRTPS22918DBVRAPX803STPS610995DRVR

Sensor mipi bill of materials (BOM)

197 components, 52 distinct parts — part numbers from the project's BOM.
