Solarcast Geiger Module

Safecast·Solarcast·geiger-module/kicad/geiger-module.kicad_pcb

Solarcast Geiger Module layout, top view — open source Nordic nRF board by Safecast

About the Solarcast Geiger Module

Solarcast Geiger Module is an open source Nordic nRF PCB design by Safecast, published on GitHub under the Custom license license. It is a 2-layer board measuring 92 × 65 mm, with 40 components from 17 distinct parts.

Its main chip is the nRF52832, from the Nordic nRF family. Other key parts include the iRover, TPS79133 and BME280. By type, the board carries 12 capacitors, 10 resistors, 5 ICs, 5 diodes, 4 jumpers and 2 transistors.

It belongs with the sensors, power & battery and iot & wireless designs in this gallery.

From the project

Safecast Solarcast sensor device

nRF52832 module Pin 3: P0.23 LED-RED Pin 5: P0.25 TWI-SDA Pin 6: P0.26 TWI-SCL Pin 7: P0.28 GEIGER0 Pin 8: P0.29 GEIGER1 Pin 18: 3.3V Pin 19: GND Pin 21: SWCLK/TCK Pin 22: SWDIO/TMS

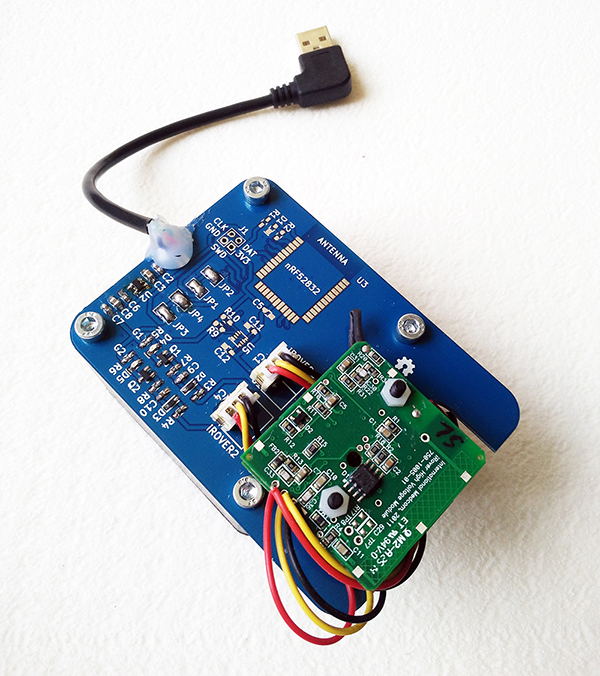

Solarcast Geiger Module, from the project README
From the project README

Main components on the Solarcast Geiger Module

iRoverTPS79133nRF52832BME280

Solarcast Geiger Module bill of materials (BOM)

40 components, 17 distinct parts.

QtyPartRefs
2
iRover
U1, U4
1
TPS79133
U2
1
nRF52832
U3
1
BME280
U5
2
BC847C
Q1, Q2
1
ARM_SWD_SMALL
J1
1
USB_OTG
P1
4
JUMPER
JP1, JP2, JP3, JP4
3
LED
D1, D4, D5
2
1N4148
D2, D3
9
100nF
C1, C2, C4, C5, C7, C9, C10, C11 +1
2
10uF
C3, C8
1
10nF
C6
3
10K
R1, R9, R10
3
100R
R2, R5, R6
2
1K
R3, R4
2
100K
R7, R8

Solarcast Geiger Module design files

The KiCad project lives in the Safecast/Solarcast repository on GitHub; these links point at the commit this page was built from.

Solarcast Geiger Module: common questions

What microcontroller does the Solarcast Geiger Module use?

The Solarcast Geiger Module is built around the nRF52832, from the Nordic nRF family.

How big is the Solarcast Geiger Module?

The Solarcast Geiger Module measures 92 × 65 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Solarcast Geiger Module?

40 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Solarcast Geiger Module design files?

From the Safecast/Solarcast repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Solarcast Geiger Module design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Solarcast Geiger Module without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
