Practice2 PCB layout, top view — open source board by Salvarado16

About the Practice2 PCB

Practice2 is an open source PCB design by Salvarado16, published on GitHub. It is a 2-layer board measuring 134.6 × 121.9 mm, with 63 components from 15 distinct parts.

Other key parts include the MCP9700A and MAX232. By type, the board carries 17 resistors, 10 jumpers, 9 diodes, 8 switches, 5 capacitors and 2 ICs.

It belongs with the sensors designs in this gallery.

From the project

Develop the connection diagrams (layout) from the schematic diagram.

Develop the connection diagrams (layout) from the schematic diagram.

Microcontrollers are all around he world. Each day, Microcontrollers, are more present in the many aspects of our lives: in our work, inside our houses, and in more. We can find them controlling small devices like cellphones, microwaves, washing machines, and televisions.

A microcontroller is one device or chip that is used to govern one or more processes. For example, the controller that regulates the room temperature of an air conditioner; it has a sensor that continuously measures the internal temperature and, when the…

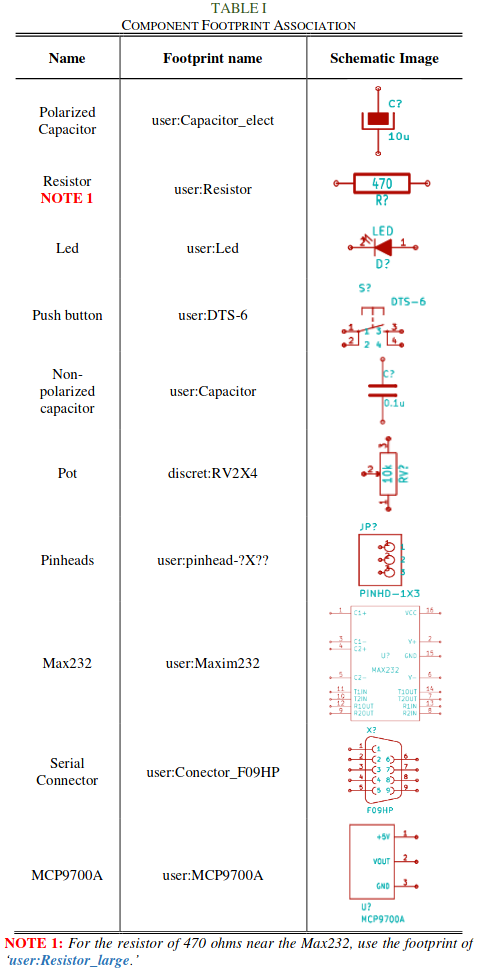

Practice2, from the project README
From the project README

Main components on the Practice2

MCP9700AMAX232

Practice2 bill of materials (BOM)

63 components, 15 distinct parts.

QtyPartRefs
1
MCP9700A
U3
1
MAX232
U4
1
F09HP
X2
4
PINHD-1X8
JP2, JP3, JP11, JP14
1
PINHD-1X2
JP5
3
PINHD-1X3
JP9, JP10, JP15
1
PINHD-1X14
JP12
1
PINHD-1X11
JP13
8
1k
RL2, RL3, RL4, RL5, RL6, RL7, RL8, RL9
3
10k
RV1, RV2, RV3
8
DTS-6
S2, S3, S4, S5, S6, S7, S8, S9
9
LED
D1, D2, D3, D4, D5, D6, D7, D8 +1
5
10u
C6, C7, C9, C10, C11
9
470
R3, R4, R5, R6, R7, R8, R9, R10 +1
8
4.7k
R20, R21, R22, R23, R24, R25, R26, R27

Practice2 design files

The KiCad project lives in the Salvarado16/Practice2 repository on GitHub; these links point at the commit this page was built from.

Practice2: common questions

How big is the Practice2 PCB?

The Practice2 measures 134.6 × 121.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Practice2?

63 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Practice2 design files?

From the Salvarado16/Practice2 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Practice2 design in my own project?

The repository has no license, so all rights stay with Salvarado16. Use it as a reference, and ask the author before reusing the design.
