Olivetti-Philos-44-Retro-Build PCB layout, top view — open source RP2040/RP2350 board by salvas2011

About the Olivetti-Philos-44-Retro-Build PCB

Olivetti-Philos-44-Retro-Build is an open source RP2040/RP2350 PCB design by salvas2011, published on GitHub. It is a 2-layer board measuring 54.5 × 52 mm, with 13 components from 9 distinct parts.

Its main chip is the XIAO-RP2040-SMD, from the RP2040/RP2350 family. Other key parts include the MCP23017. By type, the board carries 4 connectors, 4 resistors, 3 ICs and 2 capacitors.

It belongs with the retro computing designs in this gallery.

From the project

A retro-computing project built around an Olivetti Philos 44, combining its original vintage hardware and design with modern electronics.

A retro-computing project built around an Olivetti Philos 44, combining its original vintage hardware and design with modern electronics.

The goal of this project is to restore and modernize the Olivetti Philos 44 while keeping its original retro appearance.

One of the main parts of the project is a custom USB keyboard PCB, designed to replace the original keyboard interface and allow the Olivetti keyboard to be used as a standard USB keyboard with a modern computer.

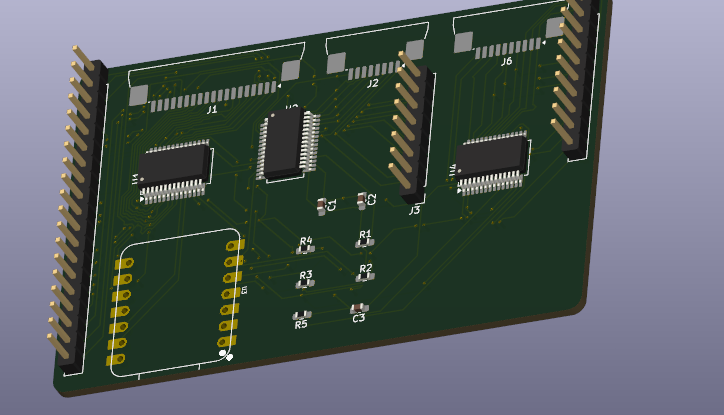

Olivetti-Philos-44-Retro-Build, from the project README
From the project README

Main components on the Olivetti-Philos-44-Retro-Build

MCP23017XIAO-RP2040-SMD

Olivetti-Philos-44-Retro-Build bill of materials (BOM)

13 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
MCP23017
MCP23017x-x-SS
U1, U2
1
XIAO-RP2040-SMD
U3
1
Conn_01x19
J1
1
Conn_01x08
J2
1
Conn_01x08
J3
1
Conn_01x19
J4
2
100NF
C
C1, C2
2
10K
R1, R3
2
4.7k
R2, R4

Olivetti-Philos-44-Retro-Build design files

The KiCad project lives in the salvas2011/Olivetti-Philos-44-Retro-Build repository on GitHub; these links point at the commit this page was built from.

Olivetti-Philos-44-Retro-Build: common questions

What microcontroller does the Olivetti-Philos-44-Retro-Build use?

The Olivetti-Philos-44-Retro-Build is built around the XIAO-RP2040-SMD, from the RP2040/RP2350 family.

How big is the Olivetti-Philos-44-Retro-Build PCB?

The Olivetti-Philos-44-Retro-Build measures 54.5 × 52 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Olivetti-Philos-44-Retro-Build?

13 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Olivetti-Philos-44-Retro-Build design files?

From the salvas2011/Olivetti-Philos-44-Retro-Build repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Olivetti-Philos-44-Retro-Build design in my own project?

The repository has no license, so all rights stay with salvas2011. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Olivetti-Philos-44-Retro-Build without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
