About the SAPPTEK-HackPad PCB
SAPPTEK-HackPad is an open source RP2040/RP2350 PCB design by Sappling-Chores, published on GitHub. It is a 2-layer board measuring 99.9 × 68.4 mm, with 35 components from 5 distinct parts.
Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 11 switches, 11 LEDs, 11 diodes and 2 ICs.
It belongs with the displays & leds designs in this gallery.
From the project

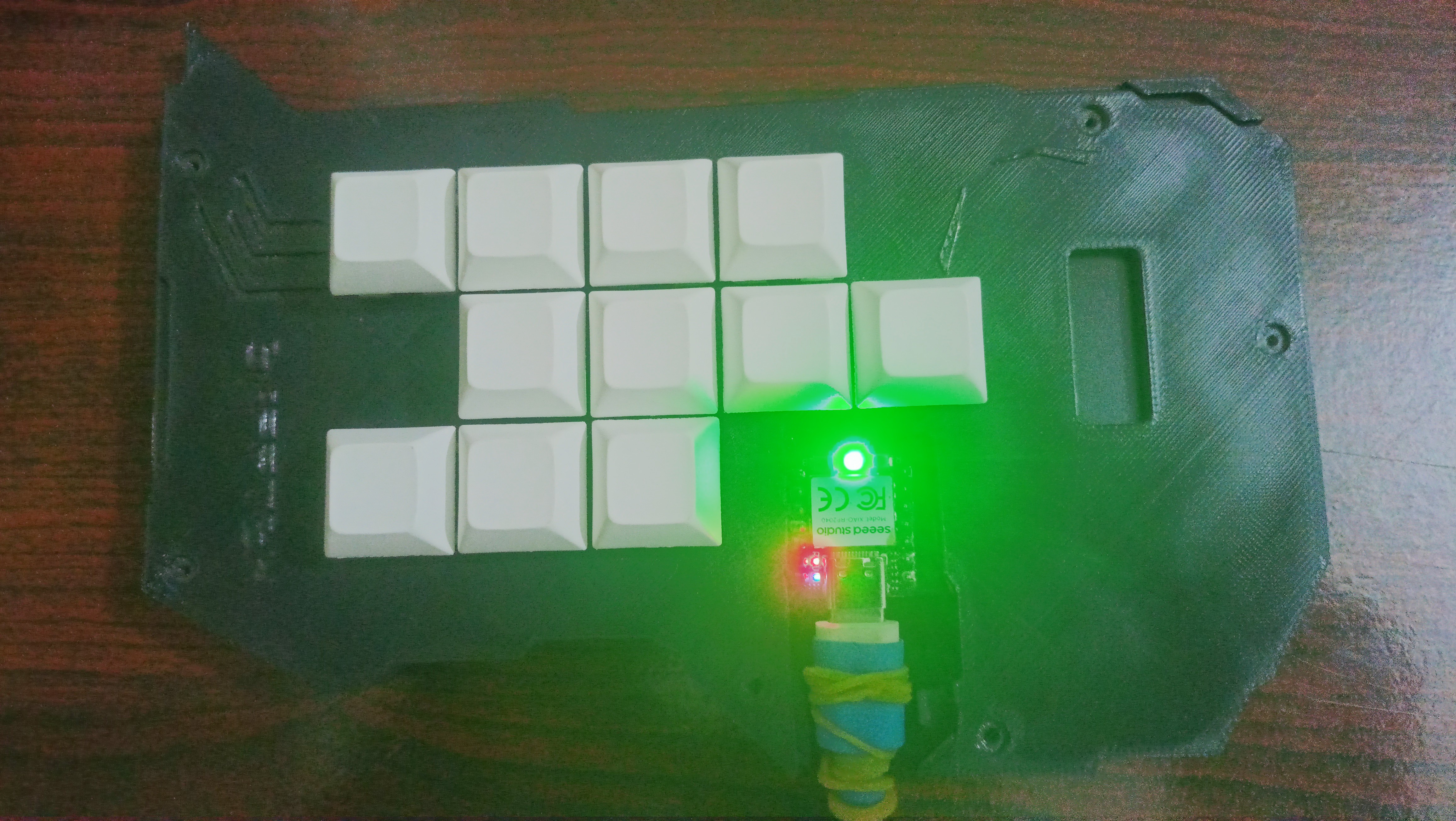

This is a Cyberpunk Themed HackPad Containing 11 programmable keys controlled Using XIAO RP2040 DIP.
Note* I am using qmk firmware, although I have just started to learn about it.
Note* I will connect the Oled using wire outside the pcb.
Kicad (for pcb and shematics) Fusion 360 (for case designing) * Qmk msys and VS code studio (for firmware.)

Main components on the SAPPTEK-HackPad
SAPPTEK-HackPad bill of materials (BOM)
35 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-RP2040-DIP | Seeed_XIAO_RP2040 | U1 |
| 1 | ~ | OLED_128x32 | U2 |
| 11 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +3 |
| 11 | SK6812MINI-E | MX_SK6812MINI-E_REV | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +3 |
| 11 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +3 |
SAPPTEK-HackPad design files
The KiCad project lives in the Sappling-Chores/SAPPTEK-HackPad repository on GitHub; these links point at the commit this page was built from.
SAPPTEK-HackPad: common questions
What microcontroller does the SAPPTEK-HackPad use?
The SAPPTEK-HackPad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.
How big is the SAPPTEK-HackPad PCB?
The SAPPTEK-HackPad measures 99.9 × 68.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SAPPTEK-HackPad?
35 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SAPPTEK-HackPad design files?
From the Sappling-Chores/SAPPTEK-HackPad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SAPPTEK-HackPad design in my own project?
The repository has no license, so all rights stay with Sappling-Chores. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the SAPPTEK-HackPad without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
