Amplifier RD15HVF1

SatcomRadio·Amplifier_RD15HVF1·Kicad/Amplifier.kicad_pcb

Amplifier RD15HVF1 PCB layout, top view — open source board by SatcomRadio

About the Amplifier RD15HVF1 PCB

Amplifier RD15HVF1 is an open source PCB design by SatcomRadio, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 50 mm, with 23 components from 18 distinct parts.

Other key parts include the L7809. By type, the board carries 12 capacitors, 2 connectors, 2 inductors, 2 resistors, 1 IC and 1 transistor.

It belongs with the audio designs in this gallery.

From the project

RD15HVF1 Amplifier Board

This repo consists of a board that uses the RD15HVF1 amplifier at satcom frequency range (280-320Mhz).

- Do not put more than 6W of input RF power. The max power output of this PA is around 20W. Check the datasheet. - You will need a tx/rx swith if you want to recieve when using this amplifier and also a lowpass filter to avoid it's harmonics! - The recomended vias voltage is 2.7v. Before soldering the amplifier adjust the potentiometer!

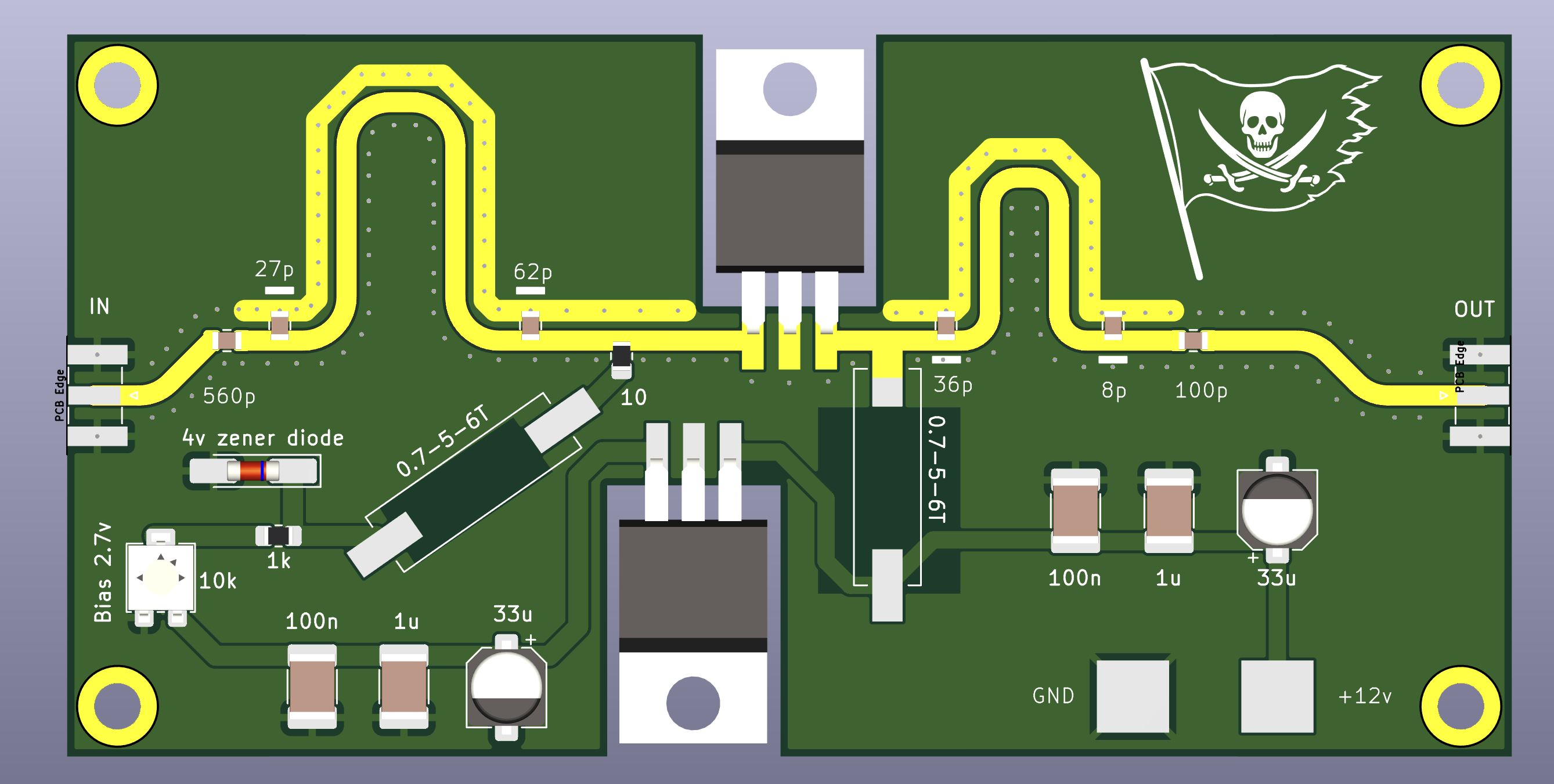

Amplifier RD15HVF1, from the project README — From the project README

Main components on the Amplifier RD15HVF1

Amplifier RD15HVF1 bill of materials (BOM)

23 components, 18 distinct parts.

Qty	Part	Footprint	Refs
1	L7809	TO-220 SMD	U1
1	RD15HVF1	TO-220 SMD	Q1
2	~	SMA_Samtec_SMA-J-P-X-ST-EM1_EdgeMount	J1, J2
1	Conn_01x02_Socket	Power_Conn	PWR1
1	10k	Potentiometer_Bourns_3314G_Vertical	RV1
1	D_Zener	D_MiniMELF_Handsoldering	D1
2	300n	Wound_Inductor_L	L1, L2
1	560p	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C1
1	27p	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C2
1	62p	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C3
2	33u	CP_Elec_5x5.4	C4, C9
2	1u	C_1812_4532Metric_Pad1.57x3.40mm_HandSolder	C5, C8
2	100n	C_1812_4532Metric_Pad1.57x3.40mm_HandSolder	C6, C7
1	36p	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C10
1	8p	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C11
1	100p	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C12
1	10	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R1
1	1k	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R2

Amplifier RD15HVF1 design files

The KiCad project lives in the SatcomRadio/Amplifier_RD15HVF1 repository on GitHub; these links point at the commit this page was built from.

LayoutKicad/Amplifier.kicad_pcb
SchematicKicad/Amplifier.kicad_sch
