About the Dac attack PCB
Dac attack is an open source PCB design by saybur, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 71.8 × 26 mm, with 62 components from 25 distinct parts.
Other key parts include the CS8416-xZZ, PCM5100, SD6210A, XC6206P332MR and TCM809. By type, the board carries 28 capacitors, 18 resistors, 7 connectors, 6 ICs, 2 test points and 1 inductor.
It belongs with the audio and retro computing designs in this gallery.
From the project
S/PDIF to line-level audio board for use with retro computer device emulators, such as ZuluSCSI and friends.
A small S/PDIF to line-level audio adapter design. The intended use case is with some versions of ZuluSCSI, though the design should work with any S/PDIF compatible output source generating a TTL-compatible signal.
Used with a compatible board, and the appropriate firmware, this allows sending audio to a retro computer. See later sections for usage information.

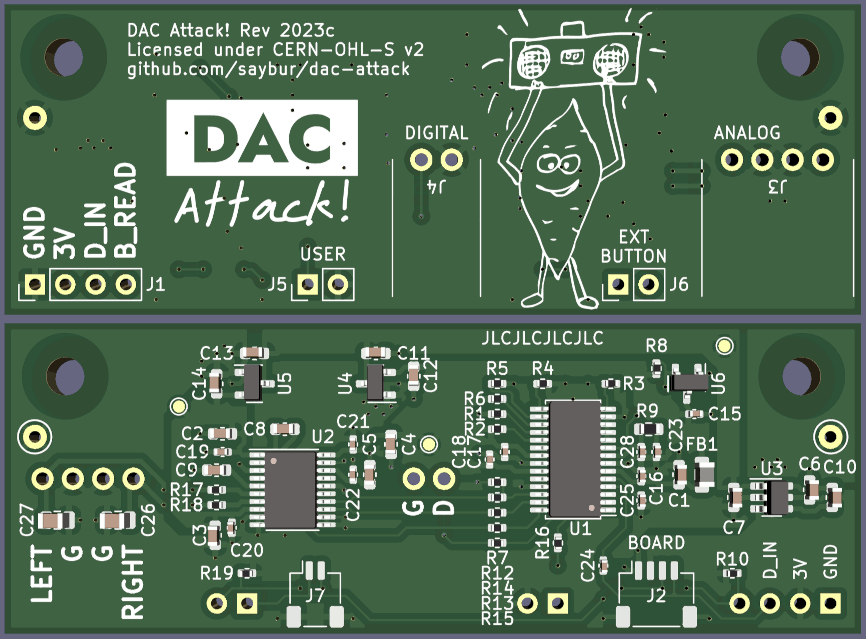

Main components on the Dac attack
Dac attack bill of materials (BOM)
62 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CS8416-xZZ | TSSOP-28_4.4x9.7mm_P0.65mm | U1 |
| 1 | PCM5100 | TSSOP-20_4.4x6.5mm_P0.65mm | U2 |
| 1 | SD6210A | SOT-23-6 | U3 |
| 2 | XC6206P332MR | SOT-23 | U4, U5 |
| 1 | TCM809 | SOT-23 | U6 |
| 1 | BOARD | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | BOARD | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J2 |
| 1 | ANALOG | 0705530003 | J3 |
| 1 | DIGITAL | 0705530001 | J4 |
| 1 | USER | PinHeader_1x02_P2.54mm_Vertical | J5 |
| 1 | BTN | PinHeader_1x02_P2.54mm_Vertical | J6 |
| 1 | BTN | JST_SH_SM02B-SRSS-TB_1x02-1MP_P1.00mm_Horizontal | J7 |
| 2 | GND | TestPoint_Keystone_5000-5004_Miniature | TP1, TP2 |
| 1 | GZ2012D601TF | L_0805_2012Metric | FB1 |
| 7 | 10uF | C_0603_1608Metric | C1, C2, C3, C4, C5, C6, C7 |
| 7 | 2.2uF | C_0603_1608Metric | C8, C9, C10, C11, C12, C13, C14 |
| 8 | 100nF | C_0402_1005Metric | C15, C16, C17, C18, C19, C20, C21, C22 |
| 3 | 22nF | C_0402_1005Metric | C23, C24, C25 |
| 2 | 2.2nF | C_0805_2012Metric | C26, C27 |
| 1 | 1nF | C_0402_1005Metric | C28 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | 47K | R_0402_1005Metric | R1, R2, R3, R4, R5, R6, R7, R8 |
| 1 | 3K | R_0603_1608Metric | R9 |
| 1 | 10K | R_0402_1005Metric | R10 |
| 5 | 22 | R_0402_1005Metric | R12, R13, R14, R15, R16 |
| 3 | 470 | R_0402_1005Metric | R17, R18, R19 |
Dac attack design files
The KiCad project lives in the saybur/dac-attack repository on GitHub; these links point at the commit this page was built from.
- Layoutdac-attack.kicad_pcb
- Schematicdac-attack.kicad_sch
- BOMbom-full.csv
Dac attack: common questions
How big is the Dac attack PCB?
The Dac attack measures 71.8 × 26 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Dac attack?
62 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Dac attack design files?
From the saybur/dac-attack repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Dac attack design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which saybur chose for the repository.
