About the Vape light PCB
Vape light is an open source PCB design by sbyd-space, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 58.3 × 15 mm, with 33 components from 27 distinct parts.
Other key parts include the DW01A, LTC4054ES5-4.2, LM27313XMF, 74LVC2G14 and 74LVC1G175. By type, the board carries 11 resistors, 7 ICs, 7 capacitors, 4 diodes, 2 inductors and 1 transistor.
From the project

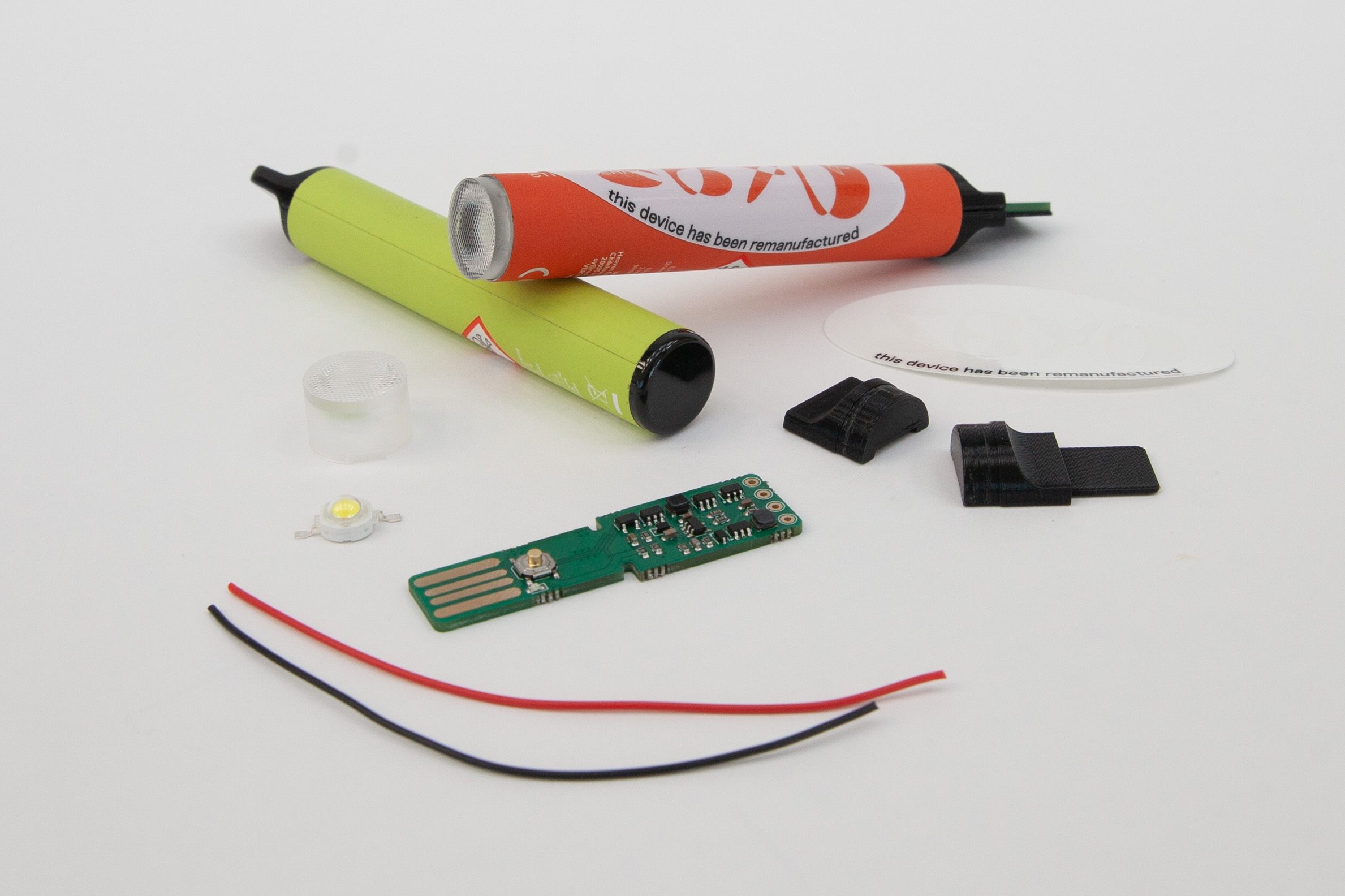

An educational DIY kit for converting a disposable vape into a rechargeable flashlight
The kit is used in workshops to educate about: environmental and social impact of resource extraction resource consumption of electronics and disposable products * basic hands-on soldering skills
It is accompanied by a [zine][zine] containing contextual information about these topics and instructions for assembly.
The pcbs were developed with [KiCad 8.0][kicad]. [KiKit 1.6.0][kikit] was used for the panelization of the PCBs for production. Visualizations were made with [Blender 4.2][blender] and [pcb2blender 2.15][pcb2blender]. The fabrication files were generated with [Fabrication Toolkit…

Main components on the Vape light
Vape light bill of materials (BOM)
33 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DW01A | SOT-23-6 | U1 |
| 1 | LTC4054ES5-4.2 | SOT-23-5 | U2 |
| 1 | LM27313XMF | SOT-23-5 | U3 |
| 1 | 74LVC2G14 | SOT-23-6 | U4 |
| 1 | 74LVC1G175 | SOT-23-6 | U5 |
| 1 | AL8860WT | TSOT-23-5 | U6 |
| 1 | 74LVC1G02 | SOT-23-5 | U7 |
| 1 | FS8205A | SOT-23-6 | Q1 |
| 1 | SW_Push | SW_Push_1P1T_XKB_TS-1187A | SW1 |
| 1 | LED | LED_0603_1608Metric | D2 |
| 3 | D_Schottky | D_SOD-323 | D3, D4, D5 |
| 1 | 47uH | L_3x3 | L1 |
| 1 | 10uH | L_3x3 | L2 |
| 3 | 100n | C_0603_1608Metric | C1, C6, C7 |
| 1 | 1u | C_0603_1608Metric | C2 |
| 1 | 10u | C_0603_1608Metric | C3 |
| 1 | 150p | C_0603_1608Metric | C4 |
| 1 | 2u2 | C_0603_1608Metric | C5 |
| 2 | 1k | R_0603_1608Metric | R1, R3 |
| 1 | 5k6 | R_0603_1608Metric | R2 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100 | R_0603_1608Metric | R4 |
| 2 | 10k | R_0603_1608Metric | R5, R9 |
| 1 | 680m | R_0603_1608Metric | R6 |
| 1 | 13K | R_0603_1608Metric | R7 |
| 1 | 150k | R_0603_1608Metric | R8 |
| 1 | 1 | R_0603_1608Metric | R10 |
| 1 | 330m | R_0603_1608Metric | R11 |
Vape light design files
The KiCad project lives in the sbyd-space/vape-light repository on GitHub; these links point at the commit this page was built from.
Vape light: common questions
How big is the Vape light PCB?
The Vape light measures 58.3 × 15 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Vape light?
33 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Vape light design files?
From the sbyd-space/vape-light repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Vape light design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which sbyd-space chose for the repository.
