BreakoutBoardPCB test

sdmay24-21·ASIC-GuitarPedal·breakout_board_PCB/BreakoutBoardPCB/BreakoutBoardPCB_test.kicad_pcb

BreakoutBoardPCB test PCB layout, top view — open source board by sdmay24-21

About the BreakoutBoardPCB test PCB

BreakoutBoardPCB test is an open source PCB design by sdmay24-21, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 76.2 × 73.8 mm, with 30 components from 14 distinct parts.

Other key parts include the AD5676BRUZ, ADS1178IPAPT, 23K256T-I/SN and caravel-M.2-card. By type, the board carries 8 resistors, 7 ICs, 6 capacitors, 4 connectors, 2 test points and 2 diodes.

It belongs with the audio and dev boards & breakouts designs in this gallery.

From the project

https://shop.karoryfer.com/pages/free-samples

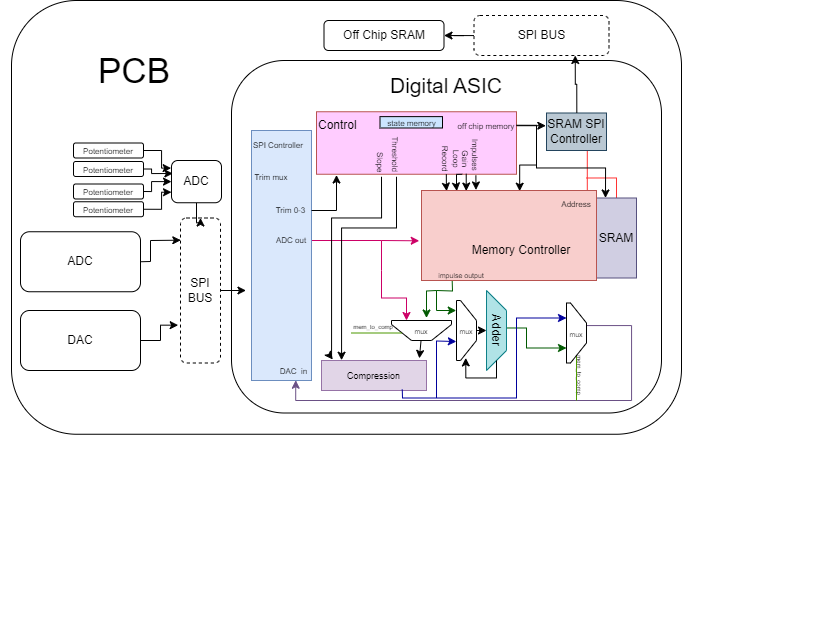

BreakoutBoardPCB test, from the project README — From the project README

Main components on the BreakoutBoardPCB test

AD5676BRUZADS1178IPAPT23K256T-I/SNcaravel-M.2-card

BreakoutBoardPCB test bill of materials (BOM)

30 components, 14 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	AD5676BRUZ	SOP65P640X120-20N	IC1
1	ADS1178IPAPT	QFP50P1200X1200X120-65N	IC2
4	23K256T-I/SN 23K256T-I_SN	SOIC127P600X175-8N	IC3, IC4, IC5, IC6
1	caravel-M.2-card	M.2-CONNECTOR-E	U8
1	Conn_01x02_Male	PinHeader_1x02_P2.54mm_Vertical	J3
1	CONN_01X06_FEMALE Conn_01x06_Female	PinHeader_1x06_P2.54mm_Vertical	J7
1	CONN_01X27_FEMALE Conn_01x27_Female	PinHeader_1x28_P2.54mm_Vertical	J10
1	CONN_01X28_PIN Conn_01x20_Female	PinHeader_1x28_P2.54mm_Vertical	J11
1	MICROMOD-Standoff	MicroMod-Standoff	H1
2	TestPoint	TestPoint_Bridge_Pitch2.54mm_Drill1.0mm	TP1, TP2
2	LED - 17-215SURC/S530-A2/TR8	LED_1206_3216Metric	D3, D4
6	0.1uf - CC0805KRX7R9BB104	C_0805_2012Metric	C1, C2, C3, C4, C5, C17
6	10k - RC0805FR-0710KL	R_0805_2012Metric	R7, R8, R9, R10, R12, R13
2	82 - 0805W8F820JT5E	R_0805_2012Metric	R11, R14

BreakoutBoardPCB test design files

The KiCad project lives in the sdmay24-21/ASIC-GuitarPedal repository on GitHub; these links point at the commit this page was built from.

BreakoutBoardPCB test: common questions

How big is the BreakoutBoardPCB test PCB?

The BreakoutBoardPCB test measures 76.2 × 73.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BreakoutBoardPCB test?

30 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BreakoutBoardPCB test design files?

From the sdmay24-21/ASIC-GuitarPedal repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the BreakoutBoardPCB test design in my own project?

Yes, under the terms of its Apache-2.0 license, which sdmay24-21 chose for the repository.
