MagicQuartz-TechDemo PCB layout, top view — open source board by sebmate

About the MagicQuartz-TechDemo PCB

MagicQuartz-TechDemo is an open source PCB design by sebmate, published on GitHub. It is a 2-layer board measuring 82.6 × 50.2 mm, with 29 components from 22 distinct parts.

Other key parts include the MEGA_2560_PRO and LM358. By type, the board carries 9 resistors, 7 capacitors, 4 connectors, 4 switches, 2 ICs and 1 jumper.

It belongs with the audio and test & measurement designs in this gallery.

From the project

Turntable speedbox implementation for the MagicQuartz firmware

This repository contains an open source hardware design of a turntable speedbox that is capable of running the MagicQuartz firmware. The hardware design consists of two parts:

An OpenSCAD model that can be used for generating a 3D-printable enclosure. A KiCad design for the mainboard, comprising schematic and PCB.

The speedbox implements an AC power inverter based on a class-D audio amplifier and a toroidal transformer to step-up the voltage. The speed of the record player is controlled by changing the generated AC frequency. This enables electronic switching between the standard record…

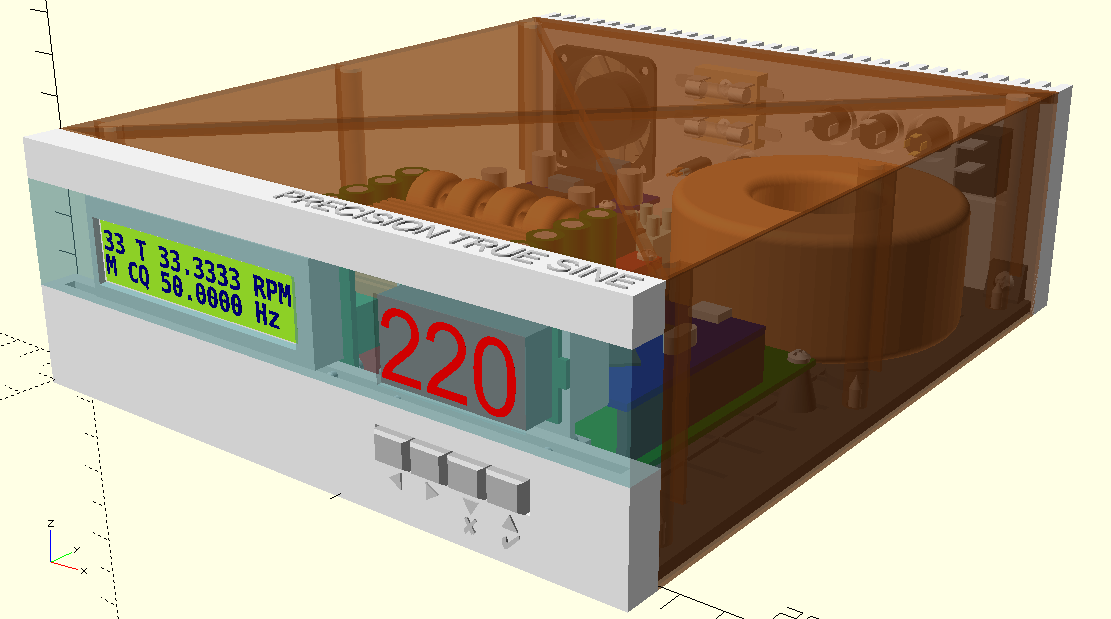

MagicQuartz-TechDemo, from the project README
From the project README

Main components on the MagicQuartz-TechDemo

MEGA_2560_PROLM358

MagicQuartz-TechDemo bill of materials (BOM)

29 components, 22 distinct parts.

QtyPartRefs
1
MEGA_2560_PRO
U1
1
LM358
U2
1
Analog Out
J1
1
Power
J2
1
DC/DC
J3
1
Sensor
J4
1
Enable APM
JP1
1
10k
RV1
1
Left
SW1
1
Right
SW2
1
Down
SW3
1
Up
SW4
1
Display 16x2
D1
6
1uF
C1, C2, C3, C4, C5, C6
1
330n
C7
2
1k
R1, R2
1
10
R3
1
0.15 / 3W
R4
2
100k
R5, R7
1
4.7k
R6
Show 2 more
QtyPartRefs
1
180
R8
1
47k
R9

MagicQuartz-TechDemo design files

The KiCad project lives in the sebmate/MagicQuartz-TechDemo repository on GitHub; these links point at the commit this page was built from.

MagicQuartz-TechDemo: common questions

How big is the MagicQuartz-TechDemo PCB?

The MagicQuartz-TechDemo measures 82.6 × 50.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MagicQuartz-TechDemo?

29 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the MagicQuartz-TechDemo design files?

From the sebmate/MagicQuartz-TechDemo repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MagicQuartz-TechDemo design in my own project?

The repository has no license, so all rights stay with sebmate. Use it as a reference, and ask the author before reusing the design.
