About the Rp2350-gpio card PCB

Rp2350-gpio card is an open source RP2040/RP2350 PCB design by semitov, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 26 × 30 mm, with 36 components from 18 distinct parts.

Its main chip is the RP2350_60QFN, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS and AP2127K-3.3. By type, the board carries 20 capacitors, 8 resistors, 3 ICs, 3 connectors, 1 crystal and 1 inductor.

From the project

Framework Expansion Card based on RP2350 providing GPIO to the mainboard (OSHWA UID: IT000024).

* Render of card with Molex 1054440011 (Framework template)

* Render of card with TYPEC-950-ARP24 (NextPCB template)

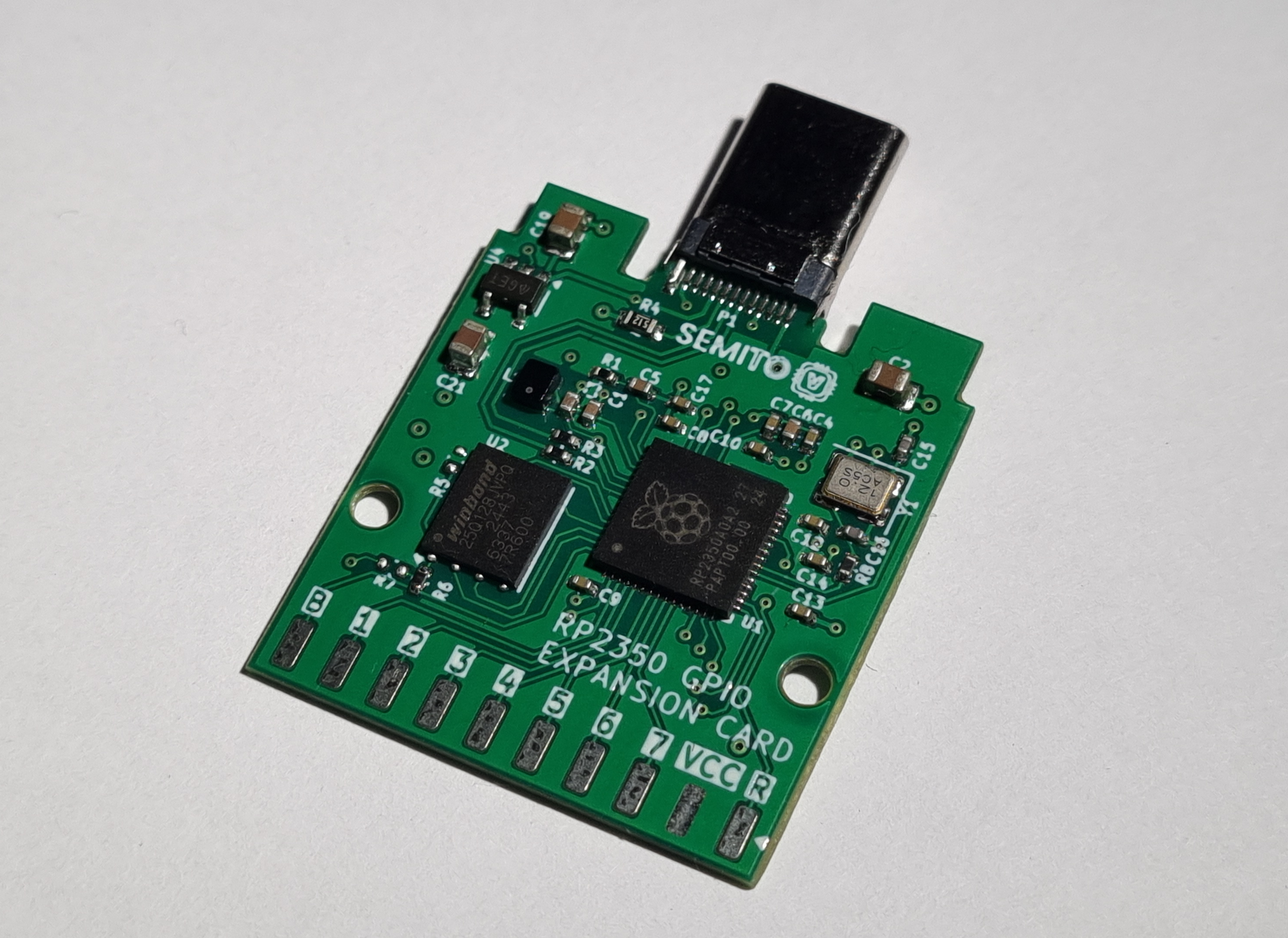

Rp2350-gpio card, from the project README — From the project README

Main components on the Rp2350-gpio card

RP2350_60QFN W25Q128JVS AP2127K-3.3

Rp2350-gpio card bill of materials (BOM)

36 components, 18 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2350_60QFN	RP2350-QFN-60-1EP_7x7_P0.4mm_EP3.4x3.4mm_ThermalVias	U1
1	W25Q128JVS	WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm	U2
1	AP2127K-3.3	SOT-23-5	U4
1	ABM8-272-T3	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
2	Conn_01x10_Pin	Custom_Harwin_M20-89010xx_1x10_P2.54mm_Horizontal	J1, J2
1	USB_C_Plug_USB2.0	USB_C_Plug_Molex_105444	P1
1	3.3u	L_pol_2016	L1
2	4.7u	C_0402_1005Metric_small_pads	C1, C3
3	10u	C_0805_2012Metric	C2, C19, C21
11	100n	C_0402_1005Metric	C4, C7, C8, C9, C10, C11, C12, C13 +3
2	4.7u	C_0402_1005Metric	C5, C6
2	15p	C_0402_1005Metric	C15, C16
1	33	R_0402_1005Metric	R1
2	27	R_0402_1005Metric	R2, R3
1	5.1k	R_0402_1005Metric	R4
2	DNF	R_0402_1005Metric	R5, R7
1	0	R_0402_1005Metric	R6
1	1k	R_0402_1005Metric	R8

Rp2350-gpio card design files

The KiCad project lives in the semitov/rp2350-gpio-card repository on GitHub; these links point at the commit this page was built from.

Rp2350-gpio card: common questions

What microcontroller does the Rp2350-gpio card use?

The Rp2350-gpio card is built around the RP2350_60QFN, from the RP2040/RP2350 family.

How big is the Rp2350-gpio card PCB?

The Rp2350-gpio card measures 26 × 30 mm, has 2 copper layers and is 1.659981 mm thick.

How many components are on the Rp2350-gpio card?

36 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rp2350-gpio card design files?

From the semitov/rp2350-gpio-card repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rp2350-gpio card design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which semitov chose for the repository.
