About the Robot PCB

Robot is an open source NXP PCB design by sidstuff, published on GitHub under the MIT license. It is a 2-layer board measuring 63 × 68.5 mm, with 71 components from 35 distinct parts.

Its main chip is the Teensy4.0, from the NXP family. Other key parts include the ADXL343, TPS610997DRV, MPU-6050, Inverter_Schmitt_Dual and L293D. By type, the board carries 29 resistors, 12 capacitors, 11 connectors, 9 ICs, 4 transistors and 2 diodes.

It belongs with the robotics & motion and power & battery designs in this gallery.

From the project

A KiCad PCB for an obstacle avoiding robot.

A common type is the micromouse, a small robot which tries to solve a maze. I.e., it tries to reach the center of a maze made up of a 16×16 grid of cells, each 180 mm square with walls 50 mm high.

While picking parts, ensure that the voltage/current/power ratings of componenets are not exceeded. Also, lithium cells have a nominal voltage of 3.7V (although it can go up to 4.2V when fully charged, and can be discharged until 3V), so their batteries are going to be multiples of the same.

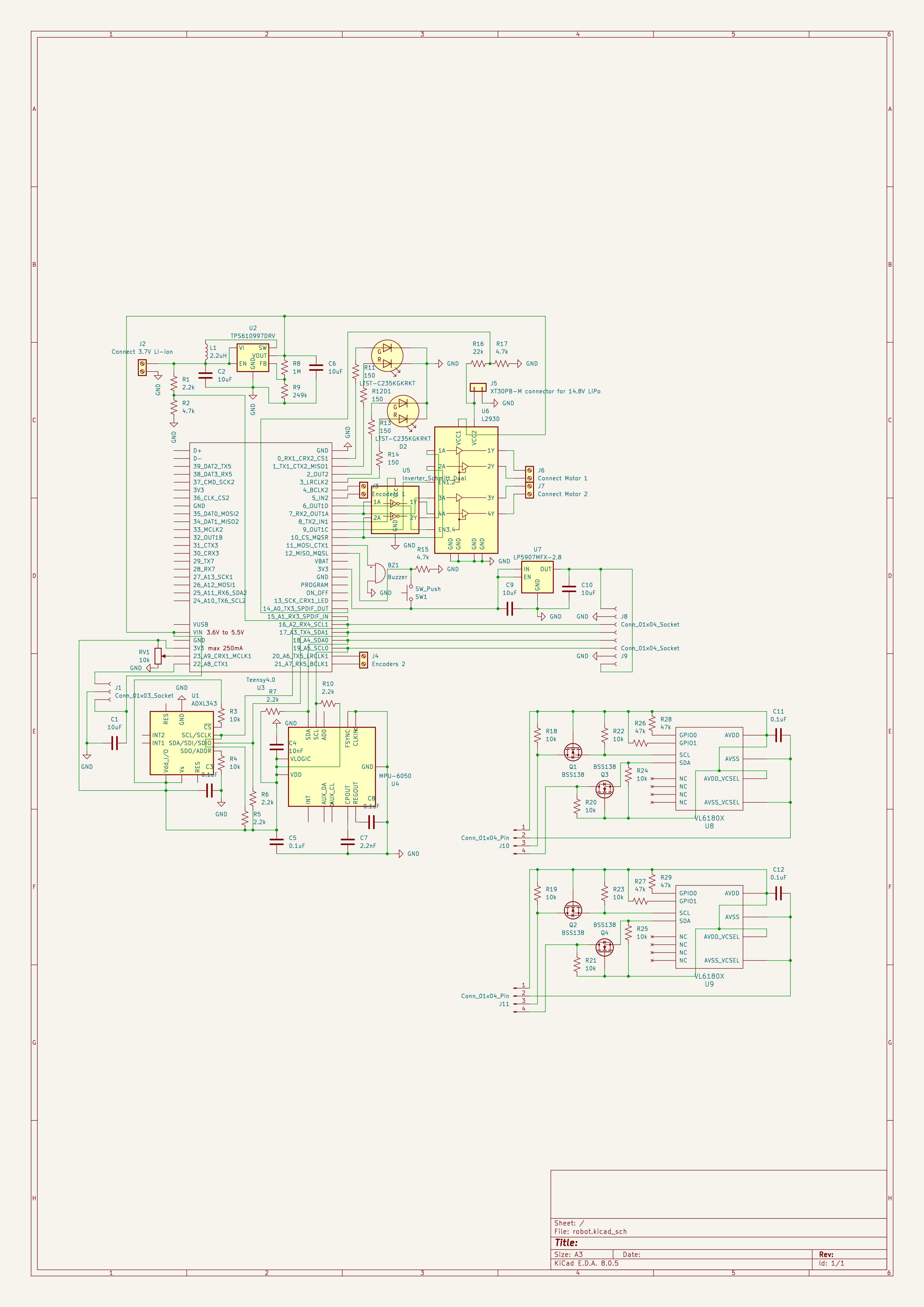

Robot, from the project README
From the project README

Main components on the Robot

Robot bill of materials (BOM)

71 components, 35 distinct parts.

QtyPartRefs
1
ADXL343
U1
1
TPS610997DRV
U2
1
Teensy4.0
U3
1
MPU-6050
U4
1
Inverter_Schmitt_Dual
U5
1
L293D
U6
1
LP5907MFX-2.8
U7
2
VL6180X
U8, U9
4
BSS138
Q1, Q2, Q3, Q4
1
Conn_01x03_Socket
J1
1
Connect 3.7V Li-ion
J2
1
Encoders 1
J3
1
Encoders 2
J4
1
XT30PB-M connector for 14.8V LiPo
J5
1
Connect Motor 1
J6
1
Connect Motor 2
J7
2
Conn_01x04_Socket
J8, J9
2
Conn_01x04_Pin
J10, J11
1
Buzzer
BZ1
1
10k
RV1
Show 15 more
QtyPartRefs
1
SW_Push
SW1
2
LTST-C235KGKRKT
D1, D2
1
2.2uH
L1
5
10uF
C1, C2, C6, C9, C10
5
0.1uF
C3, C5, C8, C11, C12
1
10nF
C4
1
2.2nF
C7
5
2.2k
R1, R5, R6, R7, R10
3
4.7k
R2, R15, R17
10
10k
R3, R4, R18, R19, R20, R21, R22, R23 +2
1
1M
R8
1
249k
R9
4
150
R11, R12, R13, R14
1
22k
R16
4
47k
R26, R27, R28, R29

Robot design files

The KiCad project lives in the sidstuff/robot repository on GitHub; these links point at the commit this page was built from.

Robot: common questions

What microcontroller does the Robot use?

The Robot is built around the Teensy4.0, from the NXP family.

How big is the Robot PCB?

The Robot measures 63 × 68.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Robot?

71 components, from 35 distinct parts. The full bill of materials is listed on this page.

Where can I download the Robot design files?

From the sidstuff/robot repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Robot design in my own project?

Yes, under the terms of its MIT license, which sidstuff chose for the repository.
