DC34-Cyberdeck by skitz0

skitzo2000·DC34-Cyberdeck-by-skitz0·hardware/backplane/kicad/a7s_backplane_routed.kicad_pcb

DC34-Cyberdeck by skitz0 PCB layout, top view — open source RP2040/RP2350 board by skitzo2000

About the DC34-Cyberdeck by skitz0 PCB

DC34-Cyberdeck by skitz0 is an open source RP2040/RP2350 PCB design by skitzo2000, published on GitHub under the Custom license license. It is a 2-layer board measuring 86.2 × 74.1 mm, with 20 components from 13 distinct parts.

Its main chip is the RP2040-Zero, from the RP2040/RP2350 family. By type, the board carries 11 connectors, 4 switches, 2 fuses, 2 capacitors and 1 module.

It belongs with the rf & radio and dev boards & breakouts designs in this gallery.

From the project

Information on building your cyberdeck and next steps.

A hand-solderable shield for the Radxa Cubie A7S. It takes the A7S's 45 header pins and fans them into the deck's I/O: two swappable radio sockets, an input microcontroller, a touchscreen, and a Flipper-compatible expansion header.

Two layers, all through-hole, DRC-clean, routed with zero unconnected nets.

Nothing here is demanding. Defaults are correct at every house:

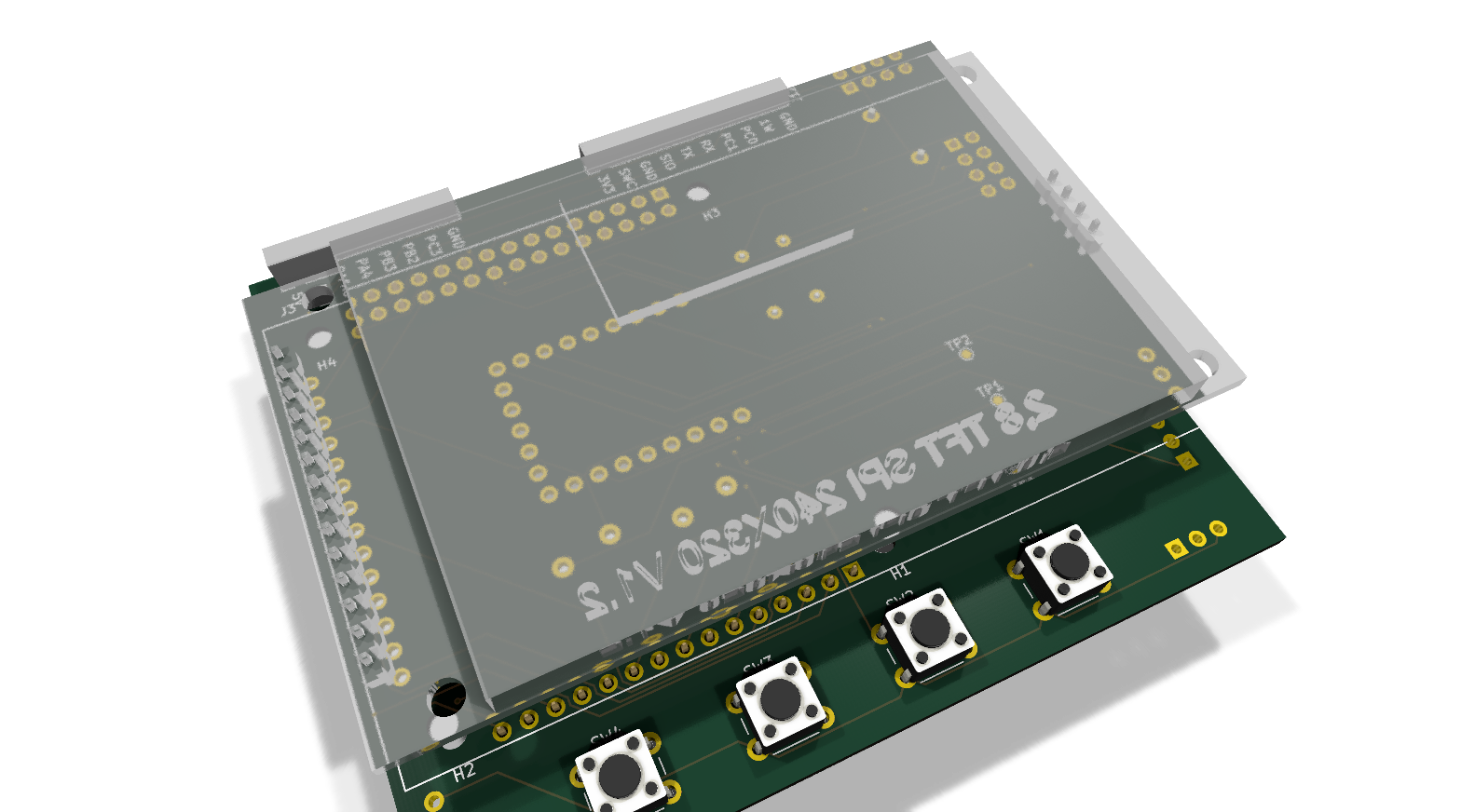

DC34-Cyberdeck by skitz0, from the project README
From the project README

Main components on the DC34-Cyberdeck by skitz0

RP2040-Zero

DC34-Cyberdeck by skitz0 bill of materials (BOM)

20 components, 13 distinct parts.

QtyPartRefs
1
RP2040-Zero
A1
1
Conn_02x15_Odd_Even
J1
1
Conn_01x15
J2
1
Conn_01x14
J3
2
Conn_02x04_Odd_Even
J5, J6
2
Conn_01x01
J5b, J6b
1
JOY
J8
1
ENC
J10
1
BTN5_6
J11
1
FLIPPER
J12
2
MF-R050 0.5A
F1, F2
4
SW_Push
SW1, SW2, SW3, SW4
2
0.1uF
C1, C2

DC34-Cyberdeck by skitz0 design files

The KiCad project lives in the skitzo2000/DC34-Cyberdeck-by-skitz0 repository on GitHub; these links point at the commit this page was built from.

DC34-Cyberdeck by skitz0: common questions

What microcontroller does the DC34-Cyberdeck by skitz0 use?

The DC34-Cyberdeck by skitz0 is built around the RP2040-Zero, from the RP2040/RP2350 family.

How big is the DC34-Cyberdeck by skitz0 PCB?

The DC34-Cyberdeck by skitz0 measures 86.2 × 74.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DC34-Cyberdeck by skitz0?

20 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the DC34-Cyberdeck by skitz0 design files?

From the skitzo2000/DC34-Cyberdeck-by-skitz0 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the DC34-Cyberdeck by skitz0 design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
