About the Mobile-Whip PCB

Mobile-Whip is an open source PCB design by skuep, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 200 × 22 mm, with 52 components from 33 distinct parts.

Other key parts include the LTC6268IS6, TP4054, LP2985-3.3 and TLV431. By type, the board carries 19 resistors, 11 capacitors, 6 diodes, 4 ICs, 4 inductors and 2 transistors.

It belongs with the power & battery and rf & radio designs in this gallery.

From the project

A Mini-Whip clone capable of lower supply voltages or battery powered

- Operates on a single lithium cell, 5V USB Supply, 4.0V RTL-SDR V4 Bias-Tee or 12V-15V Mini-Whip Bias-Tee - Includes lithium battery charger - Uses a LTC6268 ultra-low input capacitance OPAMP instead of JFET input - Requires only 20mA (instead of roughly 50mA) - (Probably) Has better large signal interferer resiliency (causing intermodulation) so it might perform better indoors - Designed for 0.1MHz to 30MHz, but works reasonably well also for listening on FM Radio (100MHz) and VHF bands (150MHz) - Can be easily mounted on a HT (such as the UV-K5 with HF mod) or mobile scanner and is thus…

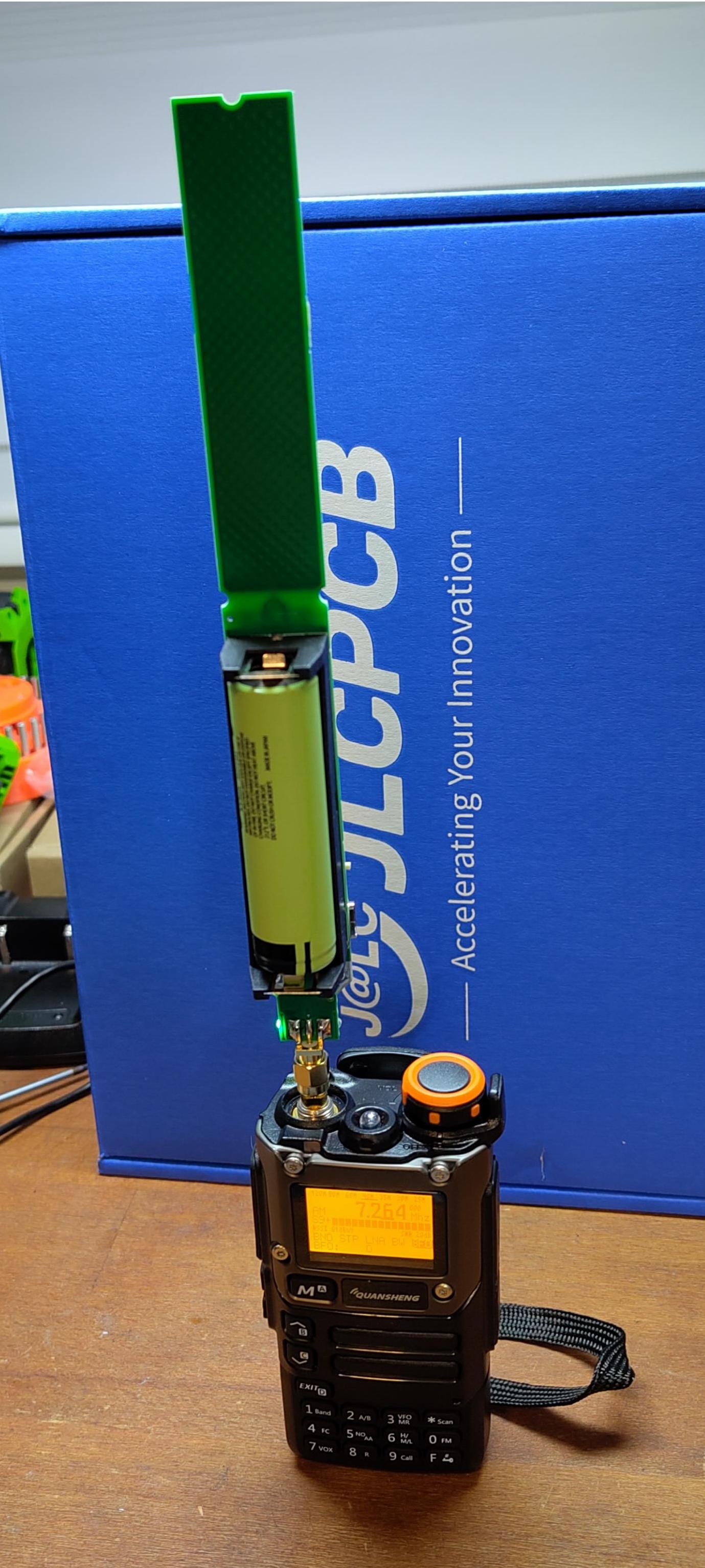

Mobile-Whip, from the project README
From the project README

Main components on the Mobile-Whip

LTC6268IS6TP4054LP2985-3.3TLV431

Mobile-Whip bill of materials (BOM)

52 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LTC6268IS6
U1
1
TP4054
U2
1
LP2985-3.3
U3
1
TLV431
U4
2
SI2301CDS-T1-GE3
Q1, Q2
1
SMA Edge Mount Male
J1
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J2
1
BHC-18650-1P
BT1
2
MountingHole
H3, H4
1
MK-12C02-G025
SW1
1
XL-3210UGC
D1
1
XL-3210SURC
D2
1
1SMA4744A
D3
2
N.M.
D4, D6
1
C8598
B5819W SL
D5
2
BLM18PG121SN1D
FB1, FB2
1
C17477
0R
L1
1
FHW1812IF471KST
L2
2
10UF/6V3
10uF/6V3
C1, C9
1
10UF/6V3
10uF/25V
C2
Show 13 more
QtyPartRefs
2
N.M.
C3, C4
2
100NF
100nF
C5, C11
1
10UF/6V3
10uF
C6
3
10NF
10nF
C7, C8, C10
4
1MEG
1Meg
R1, R2, R3, R4
3
2K
R5, R6, R12
1
1K
R7
1
51R
R9
2
220R
R10, R11
4
5.1K
R13, R14, R17, R20
1
C25271
1R
R15
1
220K
R16
2
100K
R18, R19

Mobile-Whip design files

The KiCad project lives in the skuep/Mobile-Whip repository on GitHub; these links point at the commit this page was built from.

Mobile-Whip: common questions

How big is the Mobile-Whip PCB?

The Mobile-Whip measures 200 × 22 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Mobile-Whip?

52 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Mobile-Whip design files?

From the skuep/Mobile-Whip repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Mobile-Whip design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which skuep chose for the repository.
