About the RGB-LED-Fire-Exit-Light PCB

RGB-LED-Fire-Exit-Light is an open source ESP8266 PCB design by Slush-Code, published on GitHub under the Apache-2.0 license. It is a board, with 11 components from 11 distinct parts.

Its main chip is the WeMos_D1_mini, from the ESP8266 family. Other key parts include the 74AHCT125 and LM2596S. By type, the board carries 2 ICs, 2 connectors, 2 resistors, 1 module, 1 transistor and 1 fuse.

It belongs with the power & battery designs in this gallery.

From the project

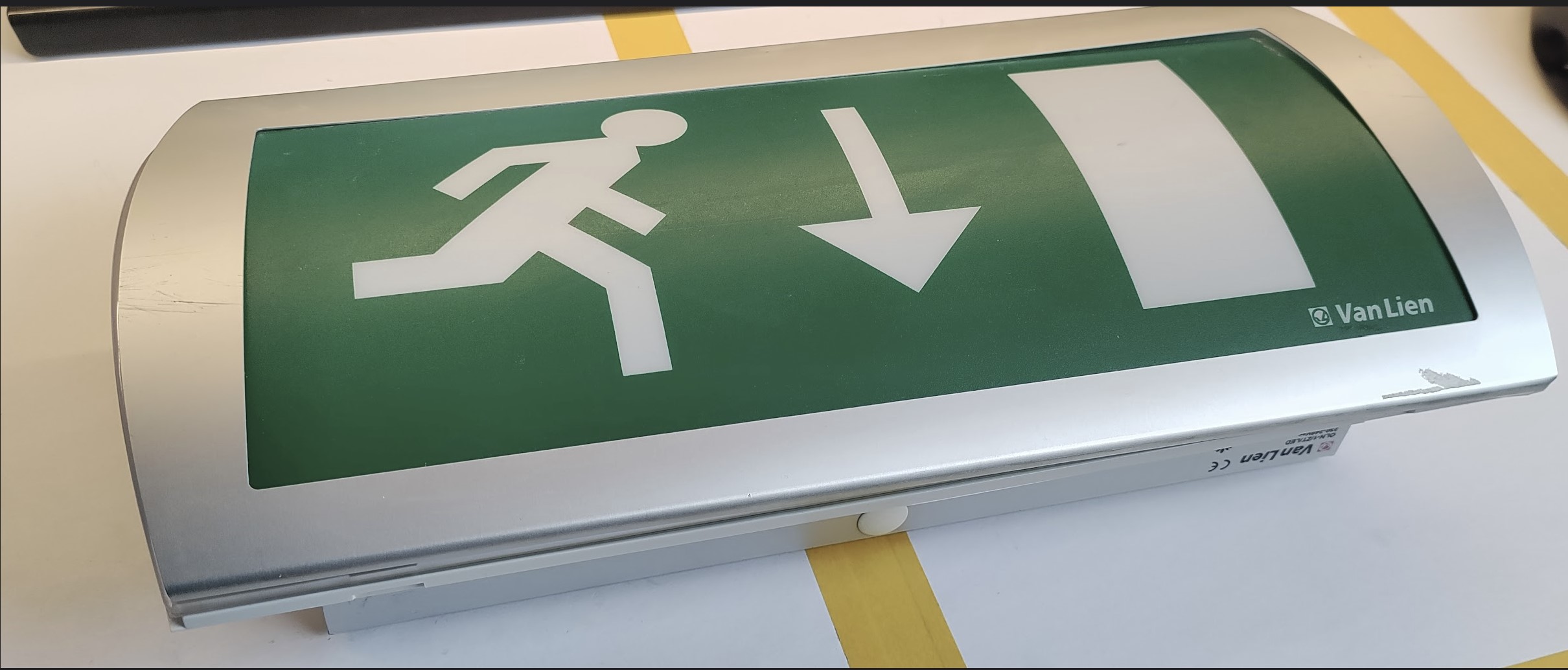

This is how I made a RGB fire exit light

All the supplies I used: |Parts list| |--| |Fire light| |12V 2A power supply| |Barrel jack socket| |Buck converter| |12V ledstrip WS2811S 1 meter (39 3/8 Inch)| |Wemos D1 Mini ESP8266| |0.5A 30V Polyfuse| |100n capacitator| |SN74AHCT125N quadruple 3-state buffers| |IRLML2502 logic-level power MOSFET 20V 3.6A|

First I removed all of the old electronics.

Set the buck converter module output to 5V.

Main components on the RGB-LED-Fire-Exit-Light

WeMos_D1_mini74AHCT125LM2596S

RGB-LED-Fire-Exit-Light bill of materials (BOM)

11 components, 11 distinct parts.

QtyPartRefs
1
WeMos_D1_mini
U1
1
74AHCT125
U2
1
LM2596S
A1
1
IRLML2502
Q1
1
Barrel_Jack_Switch
J1
1
Conn_01x03_Pin
J2
1
Polyfuse 0.5A 30V
F1
1
SW_Push
SW1
1
100n
C1
1
100R
R1
1
12k
R2
