RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot

solarmon·RGBtoHDMI-CDTV-v2·RGBtoHDMI CDTV v2/RGBtoHDMI CDTV v2.kicad_pcb

RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot PCB layout, top view — open source Raspberry Pi board by solarmon
Simulate this board

About the RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot PCB

RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot is an open source Raspberry Pi PCB design by solarmon, published on GitHub. It is a 2-layer board measuring 94 × 121.6 mm, with 20 components from 14 distinct parts.

Its main chip is the Raspberry_Pi_2_3, from the Raspberry Pi family. Other key parts include the XC9572XL-10VQ44C or XC9572XL-10VQG44C. By type, the board carries 4 connectors, 3 battery holders, 3 capacitors, 2 resistors, 1 IC and 1 module.

It belongs with the retro computing designs in this gallery.

From the project

RGBtoHDMI CDTV v2

This is version 2 of the RGBtoHDMI CDTV solution.

Full sized HDMI port DB9 mouse and joystick ports * JP15 toggle switch

This is an RGBtoHDMI solution is based on the original work by hoglet67 and IanSB:

hoglet67: https://github.com/hoglet67/RGBtoHDMI

IanSB: https://github.com/IanSB/RGBtoHDMI

The solution is based on the RGBtoHDMI CPLD based hardware design by LinuxJedi:

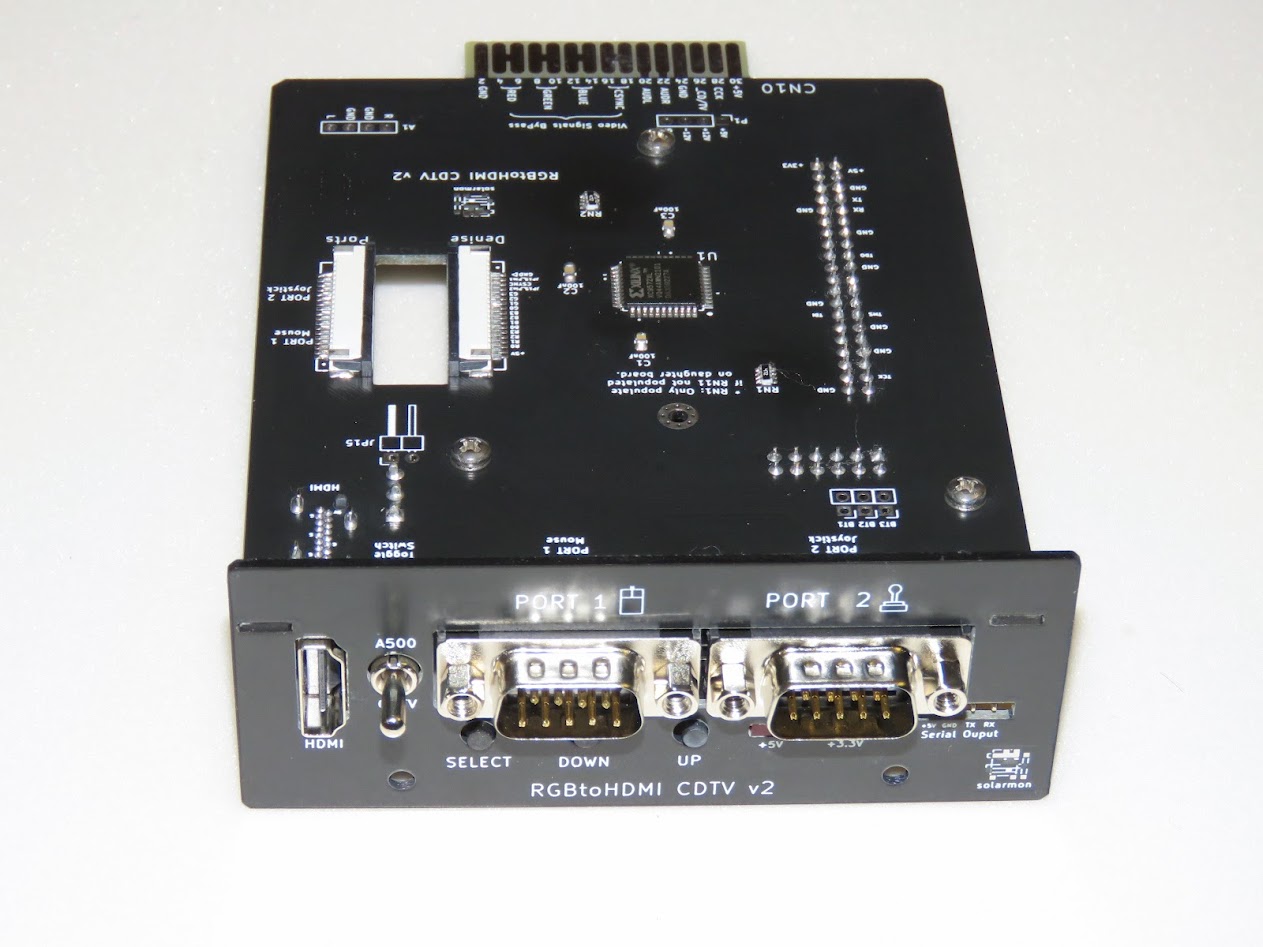

RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot, from the project README
From the project README

Main components on the RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot

XC9572XL-10VQ44C or XC9572XL-10VQG44C

RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot bill of materials (BOM)

20 components, 14 distinct parts.

QtyPartRefs
1
XC9572XL-10VQ44C or XC9572XL-10VQG44C
U1
1
Conn_01x04
A1
1
Conn_02x06_Odd_Even
CN1
1
HDMI_A
CN2
1
Conn_02x15_Odd_Even
CN10
1
Conn_01x04
P1
3
Jumper_2_Open
BT1, BT2, BT3
2
Conn_01x18
FFC1, FFC2
1
Conn_01x20
FPV20
1
Conn_01x02
JP15
1
Raspberry_Pi_2_3
Pi0
1
SW_SPDT
TS1
3
100nF
C1, C2, C3
2
4K7
RN1, RN2

RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot design files

The KiCad project lives in the solarmon/RGBtoHDMI-CDTV-v2 repository on GitHub; these links point at the commit this page was built from.

RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot: common questions

What microcontroller does the RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot use?

The RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot is built around the Raspberry_Pi_2_3, from the Raspberry Pi family.

How big is the RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot PCB?

The RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot measures 94 × 121.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot?

20 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot design files?

From the solarmon/RGBtoHDMI-CDTV-v2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot design in my own project?

The repository has no license, so all rights stay with solarmon. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RGBtoHDMI Amiga Denise CPLD FFC - CDTV Video Slot without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
