Li ion charger

SolderedElectronics·Li-ion-charger-hardware-design·CAD/V1.2.0/Li-ion charger.kicad_pcb

Li ion charger PCB layout, top view — open source board by SolderedElectronics
Simulate this board

About the Li ion charger PCB

Li ion charger is an open source PCB design by SolderedElectronics, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 38 × 22 mm, with 25 components from 15 distinct parts.

Other key parts include the TP4056M. By type, the board carries 7 relays, 6 resistors, 3 jumpers, 2 diodes, 2 capacitors and 1 IC.

It belongs with the power & battery designs in this gallery.

From the project

Hardware design, BOM, gerbers and 3D files for Li-ion-charger designed by Soldered Electronics.

Lithium batteries can’t be charged as regular batteries or devices. Instead, you’ll need a li-ion charger such as this one. Integrated with the CC/CV charging technology, it is the simplest way to charge a lithium-ion battery.

The board has a USB Type-C connector for power, a JST-type connector for batteries, the charging circuit, and two status LEDs.

All Soldered Electronics hardware designed in KiCAD, and repositories are organized in the following way:

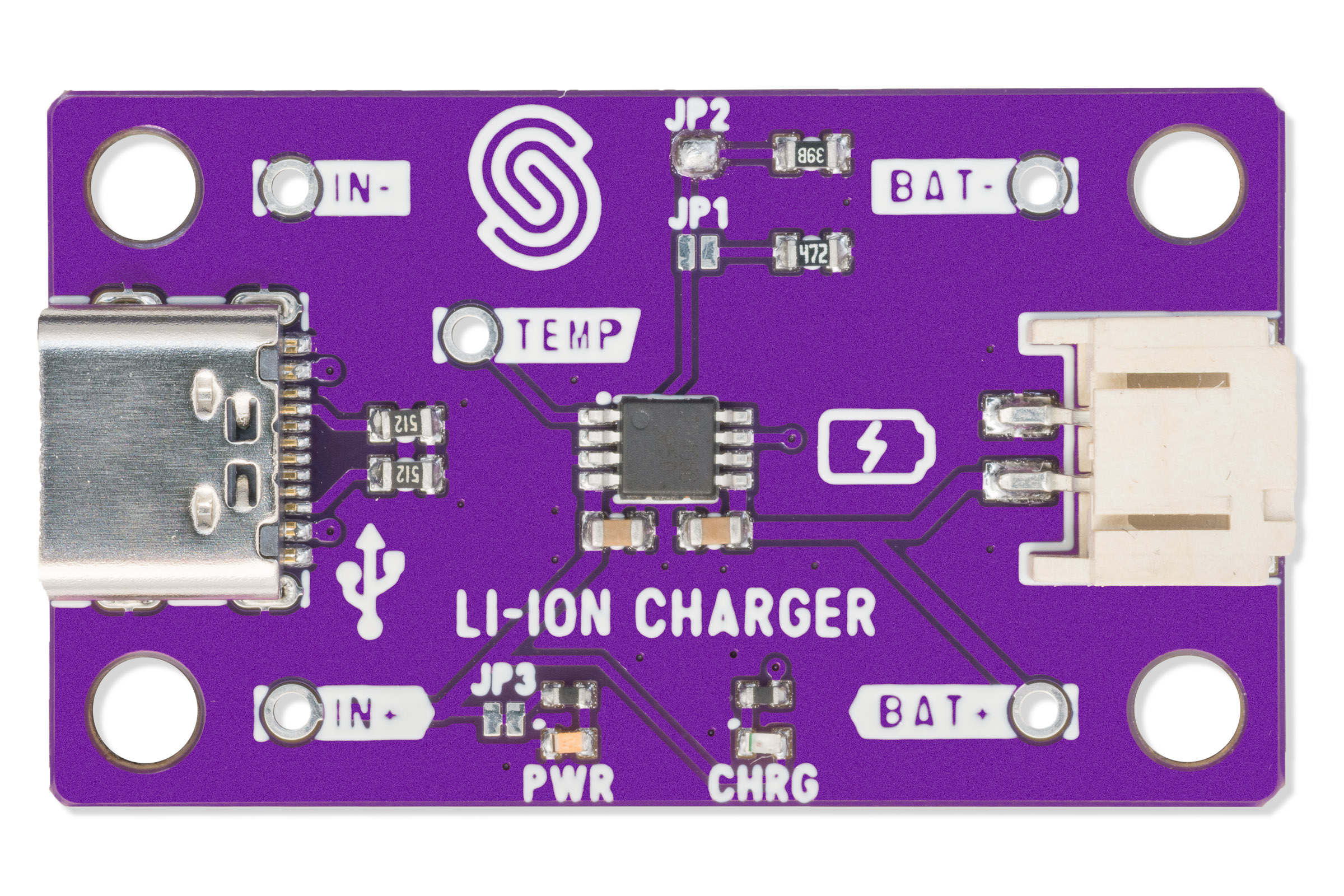

Li ion charger, from the project README
From the project README

Main components on the Li ion charger

TP4056M

Li ion charger bill of materials (BOM)

25 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TP4056M
U1
4
HOLE_3.2mm
H1, H2, H3, H4
1
SMD_JUMPER
JP1
1
SMD-JUMPER-CONNECTED
JP2
1
SMD-JUMPER-CONNECTED_TRACE_SLODERMASK
JP3
1
U262-161N-4BVC11
K1
5
HEADER_MALE_1X1
K2, K3, K4, K5, K6
1
JST-2pin-SMD
K7
1
red
D1
1
purple
D2
2
2.2uF
C1, C2
2
5.1k
R1, R2
1
4.7k
R3
1
2k49
R4
2
2k2
R5, R6

Li ion charger design files

The KiCad project lives in the SolderedElectronics/Li-ion-charger-hardware-design repository on GitHub; these links point at the commit this page was built from.

Li ion charger: common questions

How big is the Li ion charger PCB?

The Li ion charger measures 38 × 22 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Li ion charger?

25 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Li ion charger design files?

From the SolderedElectronics/Li-ion-charger-hardware-design repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Li ion charger design in my own project?

Yes, under the terms of its TAPR-OHL-1.0 license, which SolderedElectronics chose for the repository.
