Infrared gun PCB layout, top view — open source STM32 board by souptik-samanta
Simulate this board

About the Infrared gun PCB

Infrared gun is an open source STM32 PCB design by souptik-samanta, published on GitHub. It is a 2-layer board measuring 36 × 40 mm, with 38 components from 24 distinct parts.

Its main chip is the STM32F103C8TX, from the STM32 family. Other key parts include the AMS1117-3.3 and SRV05-4. By type, the board carries 13 capacitors, 10 resistors, 4 connectors, 3 ICs, 3 diodes and 2 crystals.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

non contact thermometer made by souptik samanta

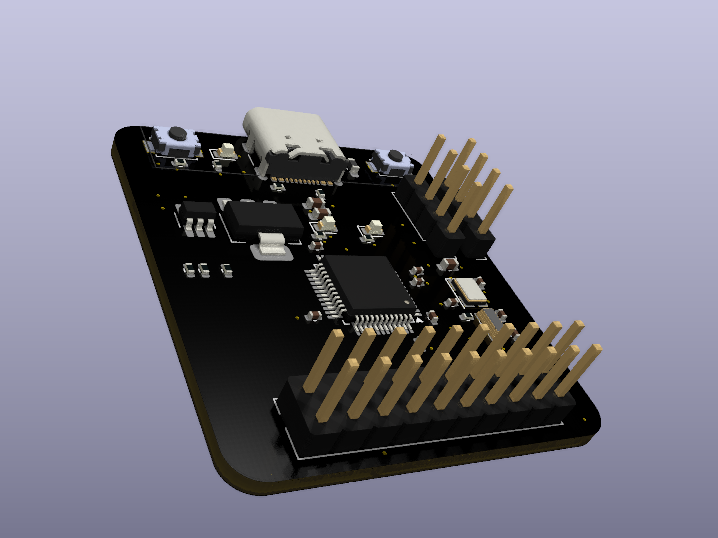

Infrared gun, from the project README
From the project README

Main components on the Infrared gun

STM32F103C8TXAMS1117-3.3SRV05-4

Infrared gun bill of materials (BOM)

38 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F103C8TX
STM32F103C8Tx
U1
1
AMS1117-3.3
U2
1
SRV05-4
U3
1
8MHZ
8Mhz
Y1
1
Crystal
Y3
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
1
MLX90614
J2
1
OLED
J3
1
CONN_02X10_COUNTER_CLOCKWISE
Conn_02x10_Counter_Clockwise
J5
1
BOOTSEL
SW1
1
RST
SW2
3
LED
D1, D2, D3
1
FerriteBead_Small
FB1
4
20PF
20pF
C1, C2, C3, C4
1
100NF
100nF
C5
5
100NF
100nF
C6, C7, C8, C9, C10
1
1UF
1uF
C11
2
22UF
22uF
C12, C13
1
10K
R1
1
0
R3
Show 4 more
QtyPartRefs
3
330
R4, R10, R11
2
20R
R5, R6
1
1.5K
R7
2
5.1K
5.1k
R8, R9

Infrared gun design files

The KiCad project lives in the souptik-samanta/Infrared-gun repository on GitHub; these links point at the commit this page was built from.

Infrared gun: common questions

What microcontroller does the Infrared gun use?

The Infrared gun is built around the STM32F103C8TX, from the STM32 family.

How big is the Infrared gun PCB?

The Infrared gun measures 36 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Infrared gun?

38 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Infrared gun design files?

From the souptik-samanta/Infrared-gun repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Infrared gun design in my own project?

The repository has no license, so all rights stay with souptik-samanta. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Infrared gun without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
