Keyboard PCB layout, top view — open source RP2040/RP2350 board by souptik-samanta

About the Keyboard PCB

Keyboard is an open source RP2040/RP2350 PCB design by souptik-samanta, published on GitHub. It is a 2-layer board measuring 404.8 × 142.9 mm, with 367 components from 23 distinct parts.

Its main chip is the RASPBERRY_PI_PICO, from the RP2040/RP2350 family. By type, the board carries 168 diodes, 97 capacitors, 92 switches, 6 resistors, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Below is an example Bill of Materials (BOM) for Soup_pad 88‐key keyboard build. This BOM lists the main electronic components, mechanical parts (switches, keycaps, stabilizers), and other necessary hardware ---

Below is an example Bill of Materials (BOM) for Soup_pad 88‐key keyboard build. This BOM lists the main electronic components, mechanical parts (switches, keycaps, stabilizers), and other necessary hardware ---

- keycaps - ssd1306 oled .96" - rpi pico - 79 ws2812b neopixel 5050 - below parts bought from grant (20$) - C1 805 1 1uf - C2, C3, C4, C5 805 4x 20 uf - C6 CPRadialD6.3mmP2.50mm 1x 100uF - usb c Receptacle - R1, R2 805 2x 4.7kΩ - R3 805 1x 220Ω - R4 805 1x 100Ω - R5, R6 805 2x 5.1k - S1, S3, S4 StabilizerCherryMX2.00u 3x MXstab - S2 StabilizerCherryMX6.25u 1x MXstab - S5…

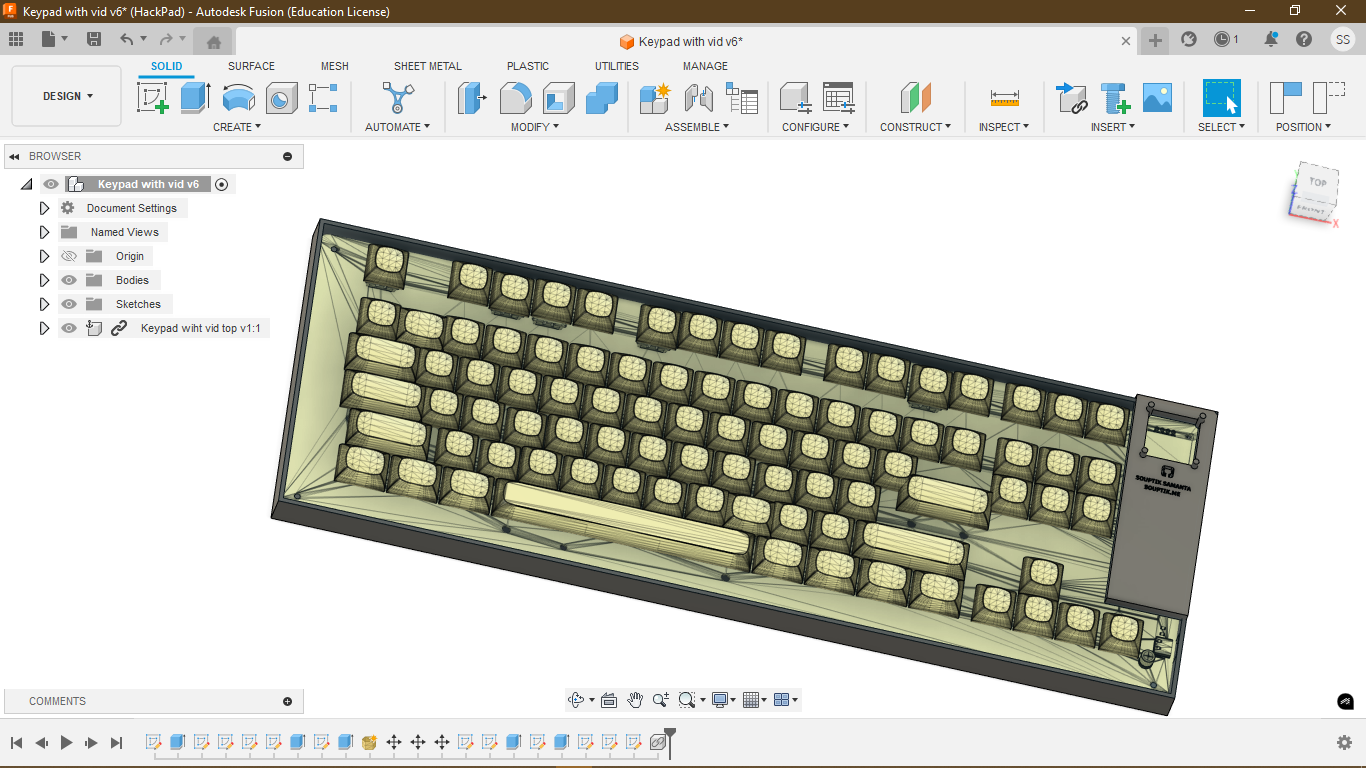

Keyboard, from the project README
From the project README

Main components on the Keyboard

RASPBERRY_PI_PICO

Keyboard bill of materials (BOM)

367 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RASPBERRY_PI_PICO
U1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
3
MX_stab
S1, S3, S4
1
MX_stab
S2
1
MX_stab
S5
4
SW_Push
SW1, SW3, SW70, SW72
76
SW_Push
SW2, SW5, SW7, SW8, SW9, SW10, SW11, SW13 +68
1
SW_Push
SW4
6
SW_Push
SW6, SW12, SW18, SW55, SW61, SW66
1
—
ref4
1
SSD1306
Brd1
87
D
D1, D2, D3, D4, D5, D6, D7, D8 +79
79
WS2812B
D89, D90, D91, D92, D93, D94, D95, D96 +71
2
Green LED
D168, D169
1
1UF
1uf
C1
4
C_Small
C2, C3, C4, C5
1
100UF
100uF
C6
80
10uF
C7, C8, C9, C10, C11, C12, C13, C14 +72
11
100uF
C87, C88, C89, C90, C91, C92, C93, C94 +3
2
4.7kΩ
R1, R2
Show 3 more
QtyPartRefs
1
220Ω
R3
1
100Ω
R4
2
5.1K
5.1k
R5, R6

Keyboard design files

The KiCad project lives in the souptik-samanta/Kommie-keeb repository on GitHub; these links point at the commit this page was built from.

Keyboard: common questions

What microcontroller does the Keyboard use?

The Keyboard is built around the RASPBERRY_PI_PICO, from the RP2040/RP2350 family.

How big is the Keyboard PCB?

The Keyboard measures 404.8 × 142.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keyboard?

367 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Keyboard design files?

From the souptik-samanta/Kommie-keeb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Keyboard design in my own project?

The repository has no license, so all rights stay with souptik-samanta. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
