About the Dvaboard PCB

Dvaboard is an open source RP2040/RP2350 PCB design by Sp1me, published on GitHub under the MIT license. It is a 2-layer board measuring 333.2 × 127.2 mm, with 186 components from 13 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 122 diodes, 62 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

My first custom keyboard. It's kind of scuffed.

The original spreadsheet is also available as BOM.csv.

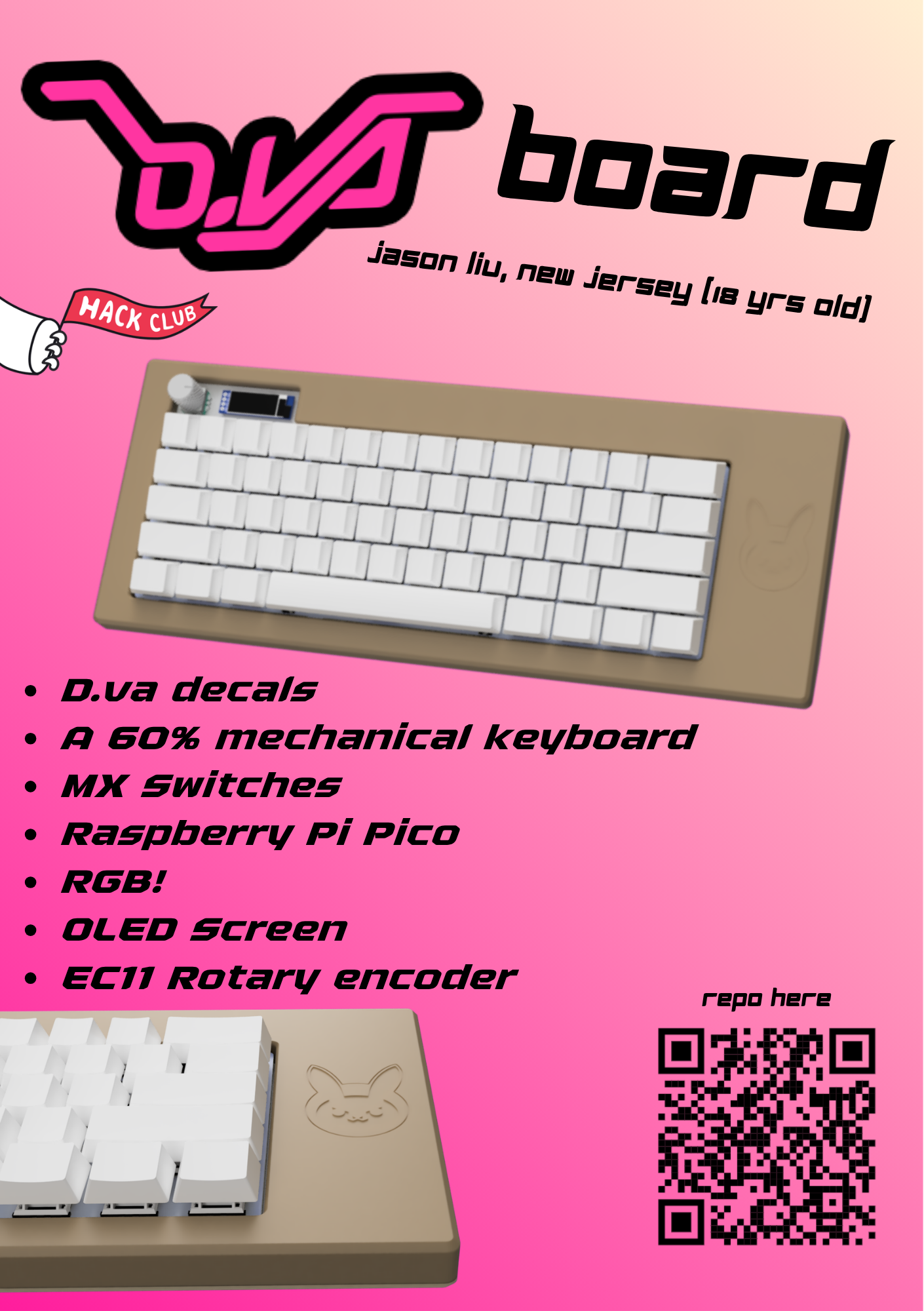

Dvaboard, from the project README — From the project README

Main components on the Dvaboard

Pico

Dvaboard bill of materials (BOM)

186 components, 13 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	Pico	RPi_Pico_SMD_TH	U1
1	OLED_128x32	OLED_128x32	J2
46	~	MX_PCB_1.00u_Keycap2	S1, S2, S3, S4, S5, S6, S7, S8 +38
1	~	MX_PCB_2.00u_Keycap	S14
2	~	MX_PCB_1.50u_Keycap	S15, S28
1	~	MX_PCB_1.75u_Keycap	S29
2	~	MX_PCB_2.25u_Keycap	S41, S42
1	~	MX_PCB_2.75u_Keycap	S53
7	~	MX_PCB_1.25u_Keycap	S54, S55, S56, S58, S59, S60, S61
1	~	MX_PCB_Spacebar_Keycap	S57
1	RotaryEncoder_Switch	Encoder_EC11_MX_with_knob	SW1
61	~	Diode_DO-35	D1, D2, D3, D4, D5, D6, D7, D8 +53
61	LED_WS2812B	LED_SK6812MINI-E_3.2x2.8mm_P1.5mm_ReverseMount	D62, D63, D64, D65, D66, D67, D68, D69 +53

Dvaboard design files

The KiCad project lives in the Sp1me/dvaboard repository on GitHub; these links point at the commit this page was built from.

Dvaboard: common questions

What microcontroller does the Dvaboard use?

The Dvaboard is built around the Pico, from the RP2040/RP2350 family.

How big is the Dvaboard PCB?

The Dvaboard measures 333.2 × 127.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Dvaboard?

186 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Dvaboard design files?

From the Sp1me/dvaboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Dvaboard design in my own project?

Yes, under the terms of its MIT license, which Sp1me chose for the repository.

Can I test firmware for the Dvaboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
