Deauther andromeda

SpacehuhnTech·deauther-andromeda-pcb·KiCad files/deauther-andromeda.kicad_pcb

Deauther andromeda PCB layout, top view — open source ESP32 board by SpacehuhnTech
Simulate this board

About the Deauther andromeda PCB

Deauther andromeda is an open source ESP32 PCB design by SpacehuhnTech, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 43 × 16 mm, with 31 components from 18 distinct parts.

Its main chip is the ESP-WROOM-02U, from the ESP32 family. Other key parts include the AP2112-3.3 and FT231XS. By type, the board carries 12 resistors, 8 capacitors, 3 ICs, 3 connectors, 2 transistors and 2 switches.

It belongs with the iot & wireless designs in this gallery.

From the project

The board files for the long range deauther

Format is KiCad project. KiCad version 5.1.4 is used during developmen prosess.

A USB-powered WiFi pentesting tool based on the ESP8266. Optimized for the ESP8266 Deauther V3 and Huhnitor.

Hardware features include: SMA antenna connector USB-A plug ESP8266 WROOM 4MB Module FTDI serial chip

Watch our video about the making-of: [](https://www.youtube.com/watch?v=-opemq-5bIY)

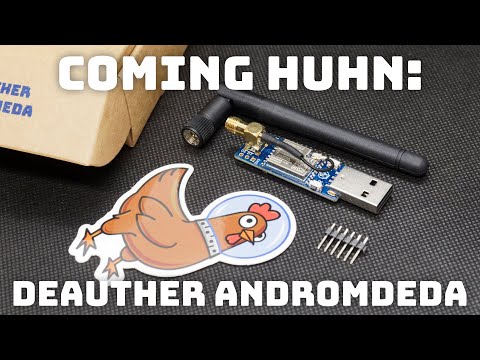

Deauther andromeda, from the project README
From the project README

Main components on the Deauther andromeda

AP2112-3.3FT231XSESP-WROOM-02U

Deauther andromeda bill of materials (BOM)

31 components, 18 distinct parts.

QtyPartRefs
1
AP2112-3.3
U1
1
FT231XS
U2
1
ESP-WROOM-02U
U3
2
BC847
Q1, Q2
1
USB_A
J1
2
Conn_01x03_Male
J2, J3
1
SW_RST
SW1
1
SW_Flash
SW2
1
Ferrite_Bead
FB1
1
10nF
C1
2
47pF
C2, C3
2
100nF
C4, C8
2
10uF
C5, C7
1
4.7uF
C6
6
10K
R1, R8, R9, R10, R11, R12
2
27R
R2, R3
2
4K7
R4, R5
2
470
R6, R7

Deauther andromeda design files

The KiCad project lives in the SpacehuhnTech/deauther-andromeda-pcb repository on GitHub; these links point at the commit this page was built from.

Deauther andromeda: common questions

What microcontroller does the Deauther andromeda use?

The Deauther andromeda is built around the ESP-WROOM-02U, from the ESP32 family.

How big is the Deauther andromeda PCB?

The Deauther andromeda measures 43 × 16 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Deauther andromeda?

31 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Deauther andromeda design files?

From the SpacehuhnTech/deauther-andromeda-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Deauther andromeda design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which SpacehuhnTech chose for the repository.

Can I test firmware for the Deauther andromeda without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
