24v esp32-greenhouse controller kicad

About the 24v esp32-greenhouse controller kicad PCB

24v esp32-greenhouse controller kicad is an open source PCB design by SpeedUp-Tech, published on GitHub under the CERN-OHL-P-2.0 license. It is a board, with 41 components from 19 distinct parts.

Other key parts include the ADS1115IDGSR, AD8641ARZ and TPS2553DBVR. By type, the board carries 14 resistors, 13 capacitors, 6 diodes, 4 ICs and 4 connectors.

It belongs with the sensors and iot & wireless designs in this gallery.

From the project

An editable hierarchical KiCad schematic for a 24V ESP32-S3 greenhouse and hydroponics controller with watering, nutrient dosing, lighting, pH, EC, level, and temperature interfaces, generated with SpeedUp for engineering review.

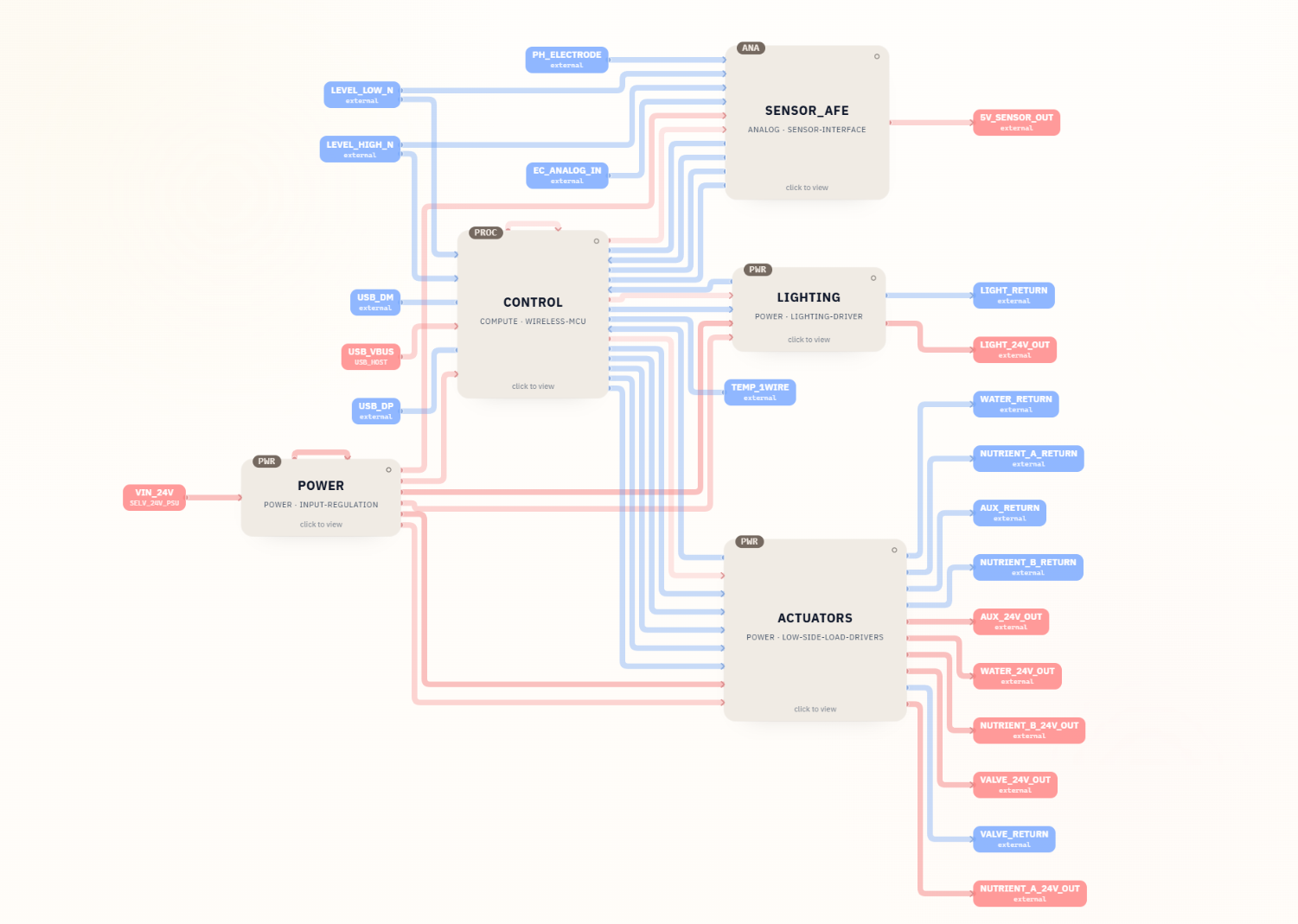

Generated with SpeedUp from a product requirement, this repository contains an editable hierarchical KiCad schematic for a 24V greenhouse and hydroponics controller built around the ESP32-S3. It separates power, control, sensing, lighting, and actuator functions into reviewable engineering sheets.

Download v0.1.1 · Open the live demo · Read the project case study

Main components on the 24v esp32-greenhouse controller kicad

ADS1115IDGSR AD8641ARZ TPS2553DBVR

24v esp32-greenhouse controller kicad bill of materials (BOM)

41 components, 19 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	ADS1115IDGSR	MSOP-10_L3.0-W3.0-P0.50-LS5.0-BL	U6
2	AD8641ARZ	SOIC-8_L4.9-W3.9-P1.27-LS6.0-BL	U7, U8
1	TPS2553DBVR	SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BR	U9
1	FA1-NCRP-PCB-8	SMA-TH_FA1-NCRP-PCB-8	J3
3	2EDGVC-5.08-3P	TerminalBlock_HanElectricity_2EDGVC-5.08-3P_P5.08mm	J4, J5, J6
5	ESD8472MUT5G	WLL-2-3_L0.6-W0.3-P0.36-BI	D2, D3, D4, D5, D6
1	BAT54A	SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BL-1	D7
1	1u 10V X7R	C_0603_1608Metric	C15
10	100n 10V X7R	C_0603_1608Metric	C16, C17, C18, C20, C21, C22, C23, C24 +2
1	10n 25V C0G	C_0603_1608Metric	C19
1	47u 10V X7R	C_1210_3225Metric	C26
2	100k 0.1%	R_0603_1608Metric	R24, R25
1	1M 1%	R_0603_1608Metric	R26
4	1k 1%	R_0603_1608Metric	R27, R28, R32, R33
3	10k 1%	R_0603_1608Metric	R29, R34, R35
1	33ohm 1%	R_0603_1608Metric	R30
1	4.7k 1%	R_0603_1608Metric	R31
1	232k 1%	R_0603_1608Metric	R36
1	0OHM 0ohm	R_0603_1608Metric	R37

24v esp32-greenhouse controller kicad design files

The KiCad project lives in the SpeedUp-Tech/24v-esp32-greenhouse-controller-kicad-schematic repository on GitHub; these links point at the commit this page was built from.

Schematichardware/modules/SENSOR_AFE.kicad_sch
BOMbom/BillOfMaterials.csv

24v esp32-greenhouse controller kicad: common questions

How many components are on the 24v esp32-greenhouse controller kicad?

41 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 24v esp32-greenhouse controller kicad design files?

From the SpeedUp-Tech/24v-esp32-greenhouse-controller-kicad-schematic repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the 24v esp32-greenhouse controller kicad design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which SpeedUp-Tech chose for the repository.
