About the Capybully PCB
Capybully is an open source STM32 PCB design by sporkus, published on GitHub under the CERN-OHL-W-2.0 license. It is a 4-layer board measuring 257.2 × 89.2 mm, with 36 components from 14 distinct parts.
Its main chip is the STM32F072CBT6, from the STM32 family. Other key parts include the 74HC4051, XC6206PXXXMR-REGULATOR_LINEAR and OPA354. By type, the board carries 16 resistors, 14 capacitors, 5 ICs and 1 connector.
It belongs with the keyboards designs in this gallery.

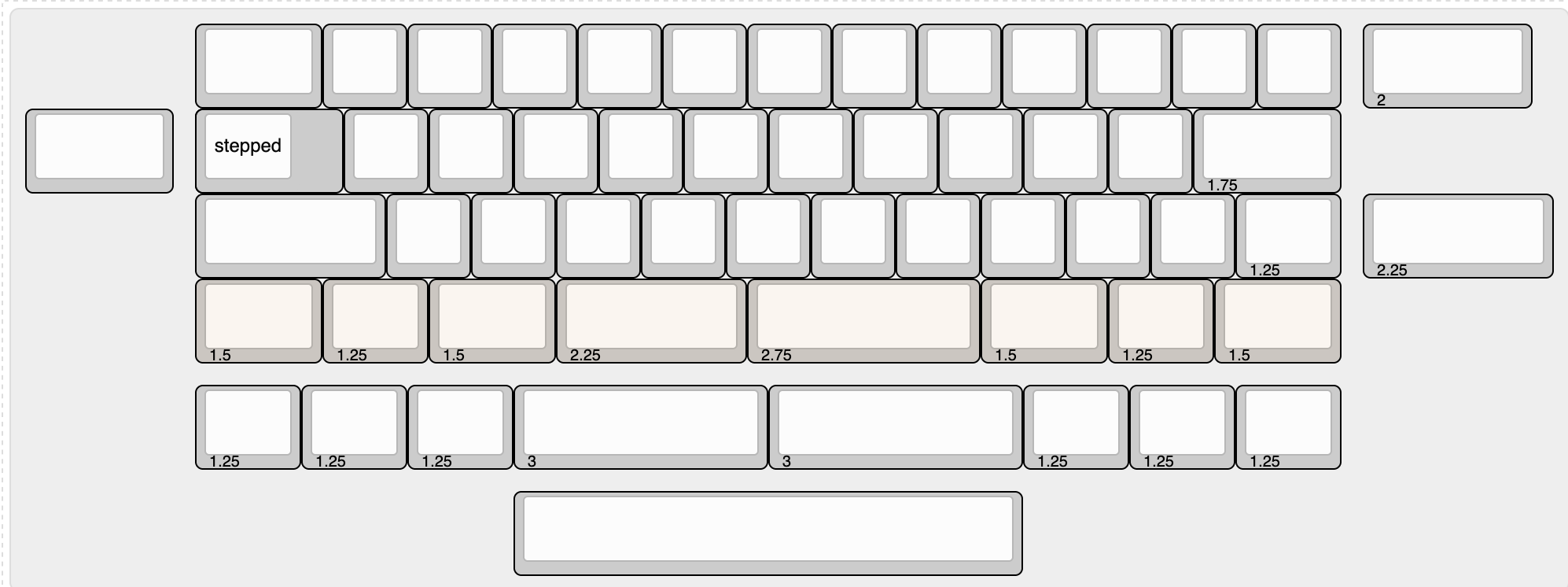

From the project
Capactive sensing (EC) pcb for Bully keyboard
Open source capactive sensing pcb for Bully keyboard.

Main components on the Capybully
Capybully bill of materials (BOM)
36 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F072CBT6 | LQFP-48_7x7mm_P0.5mm | U1 |
| 2 | 74HC4051 | TSSOP-16_4.4x5mm_P0.65mm | U2, U3 |
| 1 | XC6206PXXXMR-REGULATOR_LINEAR XC6206PxxxMR-Regulator_Linear | SOT-23 | U4 |
| 1 | OPA354 | SOT-23-5 | U5 |
| 1 | SM04B-SRSS-TB(LF)(SN) | JST-SR-4 | J1 |
| 5 | 100NF 100nF | C_0402_1005Metric | C1, C2, C3, C4, C10 |
| 4 | 100N 100n | C_0402_1005Metric | C5, C9, C11, C12 |
| 1 | 10UF 10uF | C_0603_1608Metric | C6 |
| 2 | 1UF 1uF | C_0402_1005Metric | C7, C8 |
| 1 | C1530 220pF NP0 | C_0402_1005Metric | C13 |
| 1 | 1u | C_0402_1005Metric | C15 |
| 14 | 100K 100k | R_0402_1005Metric | R1, R2, R4, R5, R6, R7, R8, R9 +6 |
| 1 | 10K 10k | R_0402_1005Metric | R3 |
| 1 | 1k | R_0402_1005Metric | R16 |
Capybully design files
The KiCad project lives in the sporkus/capybully_keyboard repository on GitHub; these links point at the commit this page was built from.
Capybully: common questions
What microcontroller does the Capybully use?
The Capybully is built around the STM32F072CBT6, from the STM32 family.
How big is the Capybully PCB?
The Capybully measures 257.2 × 89.2 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Capybully?
36 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Capybully design files?
From the sporkus/capybully_keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Capybully design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which sporkus chose for the repository.
Can I test firmware for the Capybully without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
