HM-LC-Bl1-FM-DC PCB layout, top view — open source AVR/Arduino board by stan23

About the HM-LC-Bl1-FM-DC PCB

HM-LC-Bl1-FM-DC is an open source AVR/Arduino PCB design by stan23, published on GitHub. It is a 2-layer board measuring 53.1 × 26.9 mm, with 32 components from 19 distinct parts.

Its main chip is the ATMEGA328P-AU, from the AVR/Arduino family. Other key parts include the CC1101 and AM1S-2403S. By type, the board carries 8 capacitors, 8 resistors, 4 diodes, 3 ICs, 2 transistors and 2 crystals.

It belongs with the rf & radio and usb & debug tools designs in this gallery.

From the project

Nachbau HM-LC-Bl1-FM Rollladenaktor für Gleichstrommotoren (z.B. Plissee)

Er verhält sich wie ein Rolloaktor, treibt aber einen 12/24 V Gleichstrommotor. Dieser wird je nach Fahrtrichtung umgepolt.

Dies basiert auf der hervorragenden Arbeit von pa-pa, Jérôme und micha68.

Bauteil | Bestellnummer | Anzahl | Kommentar ------------------------ | --------------- | ------ | --------- C6 | X5R-G0603 10/6 | 1 | - C1, C2, C3, C8, C21, C22 | X7R-G0603 100N | 6 | - C7 | TAJ 3528 3,3/35 | 1 | - R22, R24 | RND 0603 1 47 | 1 | - R2 | RND 0603 1 1,5K | 2 | - R11, R12 | RND 0603 1 2,7K | 2 | - R1, R21, R23 | RND 0603 1 10K | 3 | - D1 | SLO SMD-Y0603-0 | 1 | - D2, D11, D12 | 1N…

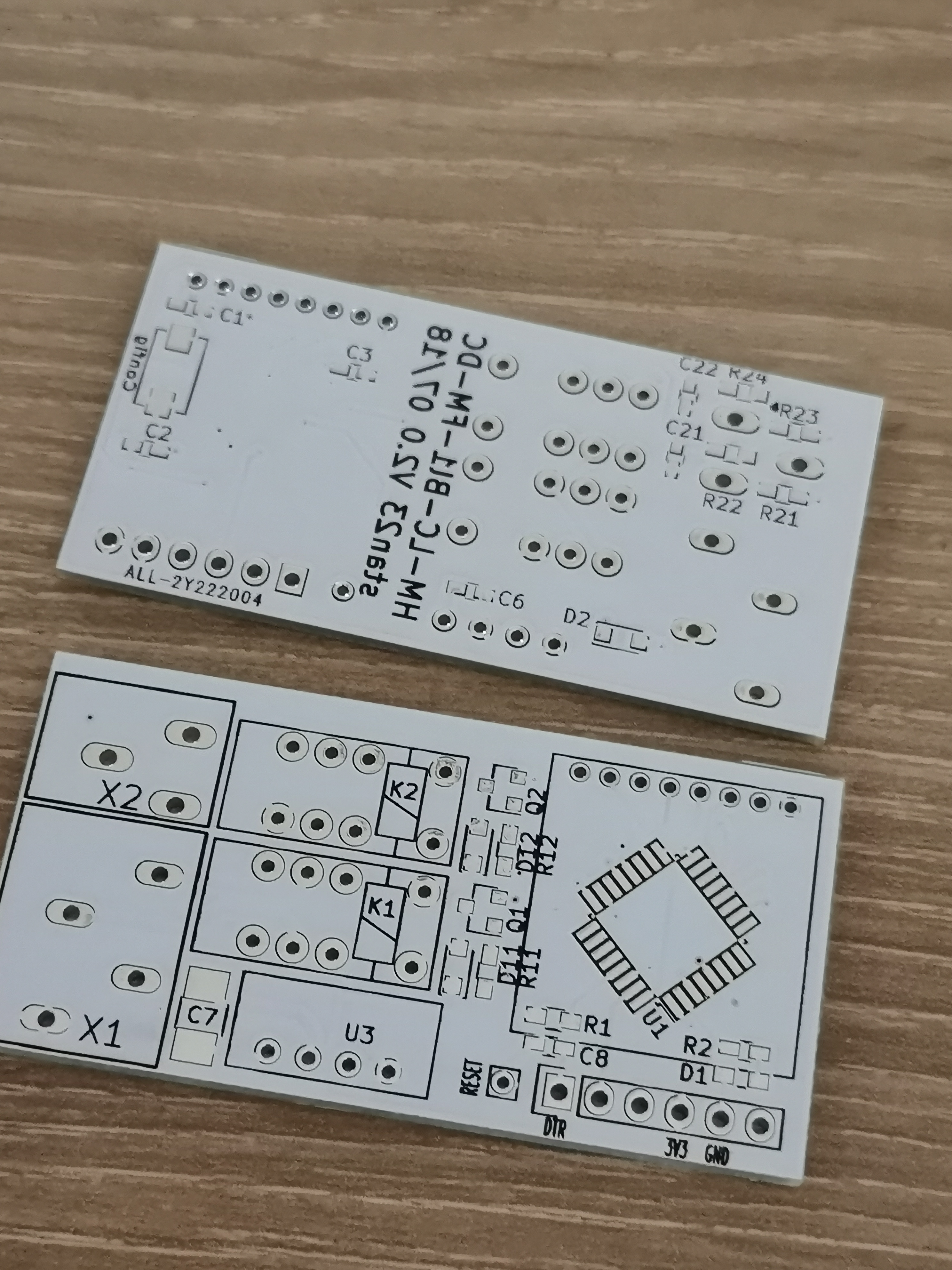

HM-LC-Bl1-FM-DC, from the project README
From the project README

Main components on the HM-LC-Bl1-FM-DC

ATMEGA328P-AUCC1101AM1S-2403S

HM-LC-Bl1-FM-DC bill of materials (BOM)

32 components, 19 distinct parts.

QtyPartRefs
1
ATMEGA328P-AU
U1
1
CC1101
U2
1
AM1S-2403S
U3
2
BC817
Q1, Q2
1
250-x04
X1
1
250-x03
X2
1
FTDI
J2
1
Reset
J4
2
OMRONG6S-2
K1, K2
1
Config
SW2
1
LED_Rot
D1
3
1N4148
D2, D11, D12
6
100n
C1, C2, C3, C8, C21, C22
1
10u
C6
1
3.3u 35V
C7
3
10k
R1, R21, R23
1
1k5
R2
2
2k7
R11, R12
2
47
R22, R24

HM-LC-Bl1-FM-DC design files

The KiCad project lives in the stan23/HM-LC-Bl1-FM-DC repository on GitHub; these links point at the commit this page was built from.

HM-LC-Bl1-FM-DC: common questions

What microcontroller does the HM-LC-Bl1-FM-DC use?

The HM-LC-Bl1-FM-DC is built around the ATMEGA328P-AU, from the AVR/Arduino family.

How big is the HM-LC-Bl1-FM-DC PCB?

The HM-LC-Bl1-FM-DC measures 53.1 × 26.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HM-LC-Bl1-FM-DC?

32 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the HM-LC-Bl1-FM-DC design files?

From the stan23/HM-LC-Bl1-FM-DC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the HM-LC-Bl1-FM-DC design in my own project?

The repository has no license, so all rights stay with stan23. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the HM-LC-Bl1-FM-DC without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
