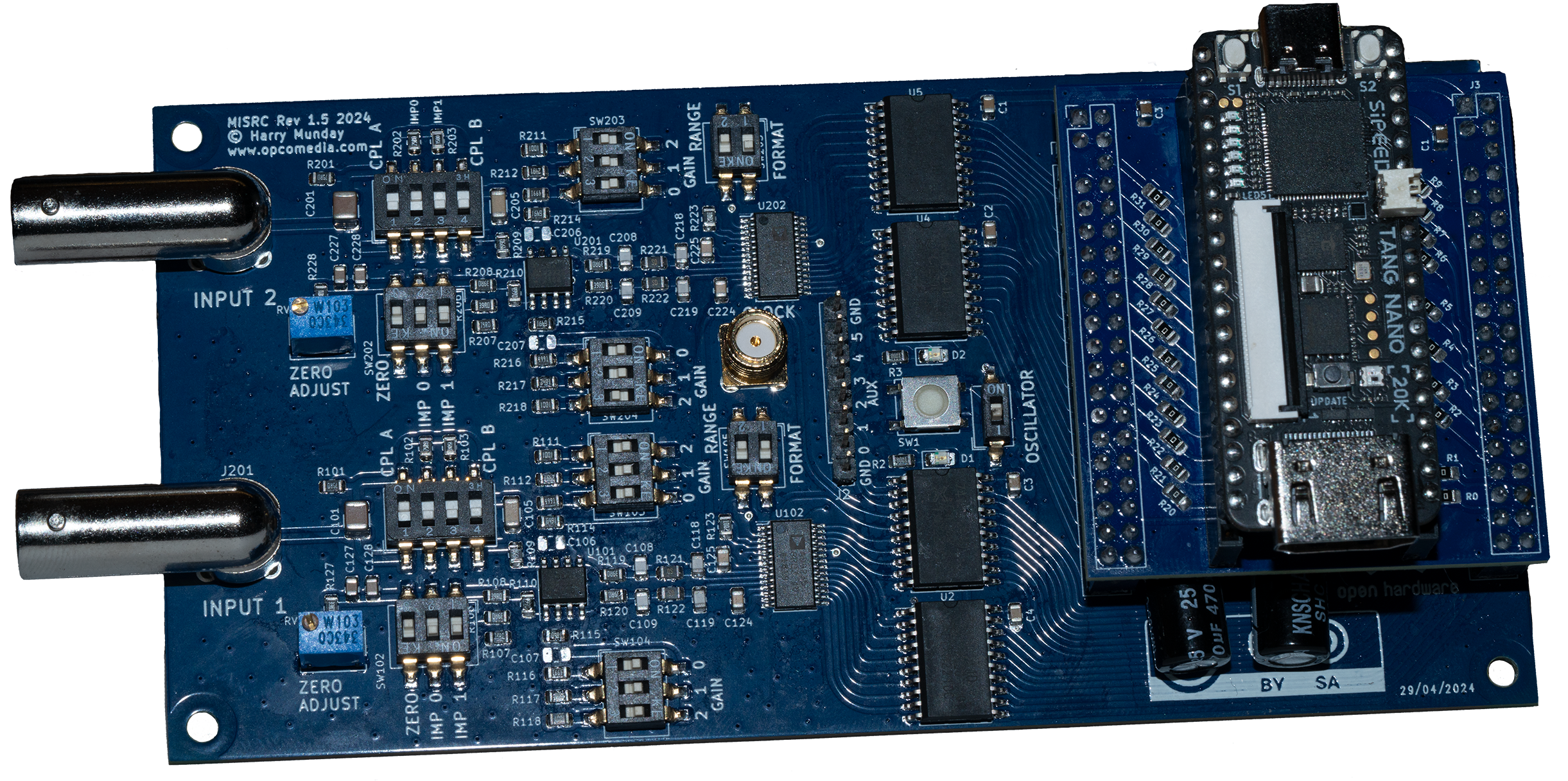

Misrc v2.5-rounded
About the Misrc v2.5-rounded PCB
Misrc v2.5-rounded is an open source PCB design by Stefan-Olt, published on GitHub under the CC-BY-4.0 license. It is a 4-layer board measuring 150 × 90 mm, with 318 components from 69 distinct parts.
Other key parts include the 74VHC541D,118, LM2662MX/NOPB, LT3042EMSE#TRPBF, LMK1C1106PWR and AD8138ARZ. By type, the board carries 156 capacitors, 82 resistors, 20 inductors, 15 ICs, 14 diodes and 9 switches.
It belongs with the rf & radio designs in this gallery.
From the project
MISRC Is a multi channel RF capture device for FM RF, S-Video, CVBS RAW capture and anything else, but intended and supported for the decode family of projects vhs-decode, ld-decode, hifi-decode.
Hardware - Firmware - Software - Usage example
MISRC is a device to capture two signals at 12-bit and up to 40 MSPS (20 Mhz bandwith) (This could be extended to 80 MSPS in the future) and an additional 8-bit's (2-bit's for v2.5) of binary (auxiliary data) over USB 3.0.
It is intended to capture modulated tape deck RF for software demodulation, but also baseband CVBS/S-Video (Composite) video signals for software decoding, and can be used as a direct stream Oscilloscope but limited to 2vpp input voltage.
Main components on the Misrc v2.5-rounded
Misrc v2.5-rounded bill of materials (BOM)
318 components, 69 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 74VHC541D,118 74VHC541 | SOIC-20W_7.5x12.8mm_P1.27mm | U2, U3, U4, U5 |
| 1 | LM2662MX/NOPB LM2662 | SOIC-8_3.9x4.9mm_P1.27mm | U6 |
| 1 | LT3042EMSE#TRPBF LT3042xMSE | MSOP-10-1EP_3x3mm_P0.5mm_EP1.68x1.88mm | U7 |
| 1 | LMK1C1106PWR LMK1C1106 | TSSOP-14_4.4x5mm_P0.65mm | U9 |
| 2 | AD8138ARZ | SO-8_3.9x4.9mm_P1.27mm | U101, U201 |
| 2 | AD9235BRUZ-40 AD9235 | TSSOP-28_4.4x9.7mm_P0.65mm | U102, U202 |
| 2 | ADA4004-1ARJZ-R7 ADA4004-1 | SOT-23-5 | U203, U204 |
| 2 | PCM1802DBR | SSOP-20_5.3x7.2mm_P0.65mm | U301, U401 |
| 1 | FZT690BTA FZT690B | SOT-223-3_TabPin2 | Q1 |
| 1 | FZT790A | SOT-223-3_TabPin2 | Q2 |
| 2 | AO3400A | SOT-23 | Q3, Q5 |
| 2 | AO3401A | SOT-23 | Q4, Q6 |
| 1 | ECS-TXO-2520-33-400-AN-TR | Oscillator_SMD_ECS_2520MV-xxx-xx-4Pin_2.5x2.0mm | Y1 |
| 1 | ECS-TXO-2016-33-400-TR ~ | Oscillator_SMD_SiT_PQFN-4Pin_2.0x1.6mm | Y2 |
| 1 | ~ | Oscillator_SMD_EuroQuartz_XO53-4Pin_5.0x3.2mm | Y3 |
| 1 | PZ2.54-2*20 GPIFII_J6 | PinHeader_2x20_P2.54mm_Vertical | J1 |
| 1 | PZ2.54-2*20 GPIFII_J7 | PinHeader_2x20_P2.54mm_Vertical | J2 |
| 1 | RF2-49B-T-00-50-G-HDW Conn_01x01_Shielded | SMA_Amphenol_901-144_Vertical2 | J4 |
| 1 | PM254-1-05-W-8.5 Conn_01x05_Socket | PinSocket_1x05_P2.54mm_Horizontal | J5 |
| 2 | DOSIN-801-0050 BNC_Rosenberger | BNC_Right_Angle-DOSIN-801-0050_5pin | J101, J201 |
Show 49 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | KLP42X-61-WW/RR KLP42X-61-WW_RR | KLP42X61WWRR | J301 |
| 1 | MISRC-Gain_Settings | misrc_settings | H5 |
| 1 | CC Licence | CC Licence | H6 |
| 1 | MISRC-Input_Circuit | misrc_input_circuit | H8 |
| 1 | MISRC-Settings-Cpl | misrc_settings_cpl | H9 |
| 2 | 3266W-1-103LF 10k | Potentiometer_Bourns_3266W_Vertical | RV101, RV201 |
| 5 | SDA03H1SBD SW_DIP_x03 | SW_DIP_SPSTx03_Slide_6.7x9.18mm_W8.61mm_P2.54mm_LowProfile | SW2, SW102, SW104, SW202, SW204 |
| 4 | SDA04H1SBD SW_DIP_x04 | SW_DIP_SPSTx04_Slide_6.7x11.72mm_W8.61mm_P2.54mm_LowProfile | SW101, SW103, SW201, SW203 |
| 2 | XL-1606UOC LED | LED_XL1606 | D1, D2 |
| 12 | BAT54H BAT54 | D_SOD-323 | D101, D102, D103, D104, D105, D106, D201, D202 +4 |
| 6 | BLM18AG102SN1D 1k@100MHz,280@10MHz | L_0603_1608Metric | FB1, FB2, FB3, FB101, FB201, FB301 |
| 2 | SRU8043-101Y 100µ | L_Bourns-SRU8043_2 | L1, L2 |
| 4 | LQW2UASR62F00L 620nF | L_1008_2520Metric | L101, L102, L201, L202 |
| 8 | LQW2UASR56F00L 560nF | L_1008_2520Metric | L103, L104, L105, L106, L203, L204, L205, L206 |
| 21 | UMK107AB7105KA-T 1µ | C_0603_1608Metric | C1, C2, C3, C4, C5, C7, C12, C13 +13 |
| 7 | 16SVPF1000M 1000µ | CP_Elec_10x12.6 | C6, C10, C11, C16, C17, C18, C19 |
| 2 | TMK325ABJ476MM-T 47µ | C_1210_3225Metric | C8, C28 |
| 43 | CC0603KRX7R9BB104 100n | C_0603_1608Metric | C9, C14, C15, C26, C37, C38, C39, C103 +35 |
| 22 | GRM21BR61H106KE43L 10µ | C_0805_2012Metric | C22, C25, C32, C34, C35, C36, C40, C41 +14 |
| 17 | CC0603JRNPO9BN102 1n/1 | C_0603_1608Metric | C23, C27, C33, C104, C111, C114, C116, C121 +9 |
| 4 | EMK325ABJ107MM-P 100µ | C_1210_3225Metric | C101, C143, C201, C243 |
| 2 | C2220C474J5GAC 470n/1 | C_2220_5750Metric | C105, C205 |
| 4 | C0805C109C2GACTU 1p | C_0603_1608Metric | C106, C107, C206, C207 |
| 4 | CC0603FRNPO9BN241 240pF/1 | C_0603_1608Metric | C108, C109, C208, C209 |
| 4 | CC0603FRNPO9BN150 15pF/1 | C_0603_1608Metric | C110, C117, C210, C217 |
| 4 | GCM1885C2A391FA16D 390pF/1 | C_0603_1608Metric | C118, C119, C218, C219 |
| 4 | CC0603FRNPO9BN680 68pF/1 | C_0603_1608Metric | C129, C130, C229, C230 |
| 4 | GCM1885C2A361FA16D 360pF/1 | C_0603_1608Metric | C132, C133, C232, C233 |
| 4 | CC0603FRNPO9BN510 51pF/1 | C_0603_1608Metric | C134, C135, C234, C235 |
| 4 | GCM1885C2A201FA16J 200pF/1 | C_0603_1608Metric | C137, C138, C237, C238 |
| 6 | C1812C944J5JLC7805 940n/1 | C_1812_4532Metric | C141, C241, C302, C305, C402, C405 |
| 2 | 0603WAF1000T5E 100 | R_0603_1608Metric | R2, R3 |
| 9 | 0603WAF4700T5E 470 | R_0603_1608Metric | R4, R5, R8, R305, R306, R308, R405, R406 +1 |
| 8 | 0603WAF100JT5E 10 | R_0603_1608Metric | R6, R11, R12, R13, R16, R17, R127, R227 |
| 1 | RT0603BRD0730KL 30kB | R_0603_1608Metric | R7 |
| 2 | 0603WAF3002T5E 30k | R_0603_1608Metric | R14, R15 |
| 4 | RT0603BRD07100RL 100B | R_0603_1608Metric | R101, R102, R201, R202 |
| 2 | RT0603BRD07300RL 300B | R_0603_1608Metric | R103, R203 |
| 8 | RT0603BRD071KL 1kB | R_0603_1608Metric | R104, R105, R111, R116, R204, R205, R211, R216 |
| 4 | RT0603BRD0749R9L 49R9B | R_0603_1608Metric | R106, R108, R206, R208 |
| 2 | TC0325B1500T5F 150B | R_0603_1608Metric | R107, R207 |
| 4 | ARG06BTC4990 499B | R_1206_3216Metric | R109, R110, R209, R210 |
| 4 | RT0603BRD072K49L 2k49B | R_0603_1608Metric | R112, R117, R212, R217 |
| 4 | RT0603BRD074K99L 4k99B | R_0603_1608Metric | R113, R118, R213, R218 |
| 4 | RT1206BRD076K65L 6k65B | R_1206_3216Metric | R114, R115, R214, R215 |
| 8 | TC0325B470JT5F 47B | R_0603_1608Metric | R119, R120, R121, R122, R219, R220, R221, R222 |
| 10 | 0603WAF1002T5E 10k | R_0603_1608Metric | R123, R124, R128, R223, R224, R228, R301, R302 +2 |
| 2 | 0603WAF6801T5E 6k8 | R_0603_1608Metric | R126, R226 |
| 4 | 0603WAF4702T5E 47k | R_0603_1608Metric | R303, R304, R403, R404 |
Misrc v2.5-rounded design files
The KiCad project lives in the Stefan-Olt/MISRC repository on GitHub; these links point at the commit this page was built from.
Misrc v2.5-rounded: common questions
How big is the Misrc v2.5-rounded PCB?
The Misrc v2.5-rounded measures 150 × 90 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Misrc v2.5-rounded?
318 components, from 69 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Misrc v2.5-rounded design files?
From the Stefan-Olt/MISRC repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Misrc v2.5-rounded design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which Stefan-Olt chose for the repository.
