AcolyteHandPICd24 PCB layout, top view — open source PIC board by stevenchadburrow

About the AcolyteHandPICd24 PCB

AcolyteHandPICd24 is an open source PIC PCB design by stevenchadburrow, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 100 × 100 mm, with 108 components from 21 distinct parts.

Its main chip is the PIC24EP512GP204, from the PIC family. Other key parts include the LM1117MP-3.3. By type, the board carries 51 test points, 18 resistors, 14 connectors, 11 capacitors, 10 switches and 2 ICs.

It belongs with the audio, displays & leds and retro computing designs in this gallery.

From the project

PIC24FJ based game console

This is a single-chip retro-style computer using only the PIC24EP512GP204 microcontroller. Inspired by Voja Antonic's design found here: http://www.voja.rs/PROJECTS/GAMEHTM/1intro.htm

It is designed to output VGA display at 320x240 with 16 colors, and 2-voice audio square waves.

It is designed to receive input from a Sega Genesis controller, PS/2 Keyboard or Mouse, and 8 on-board buttons.

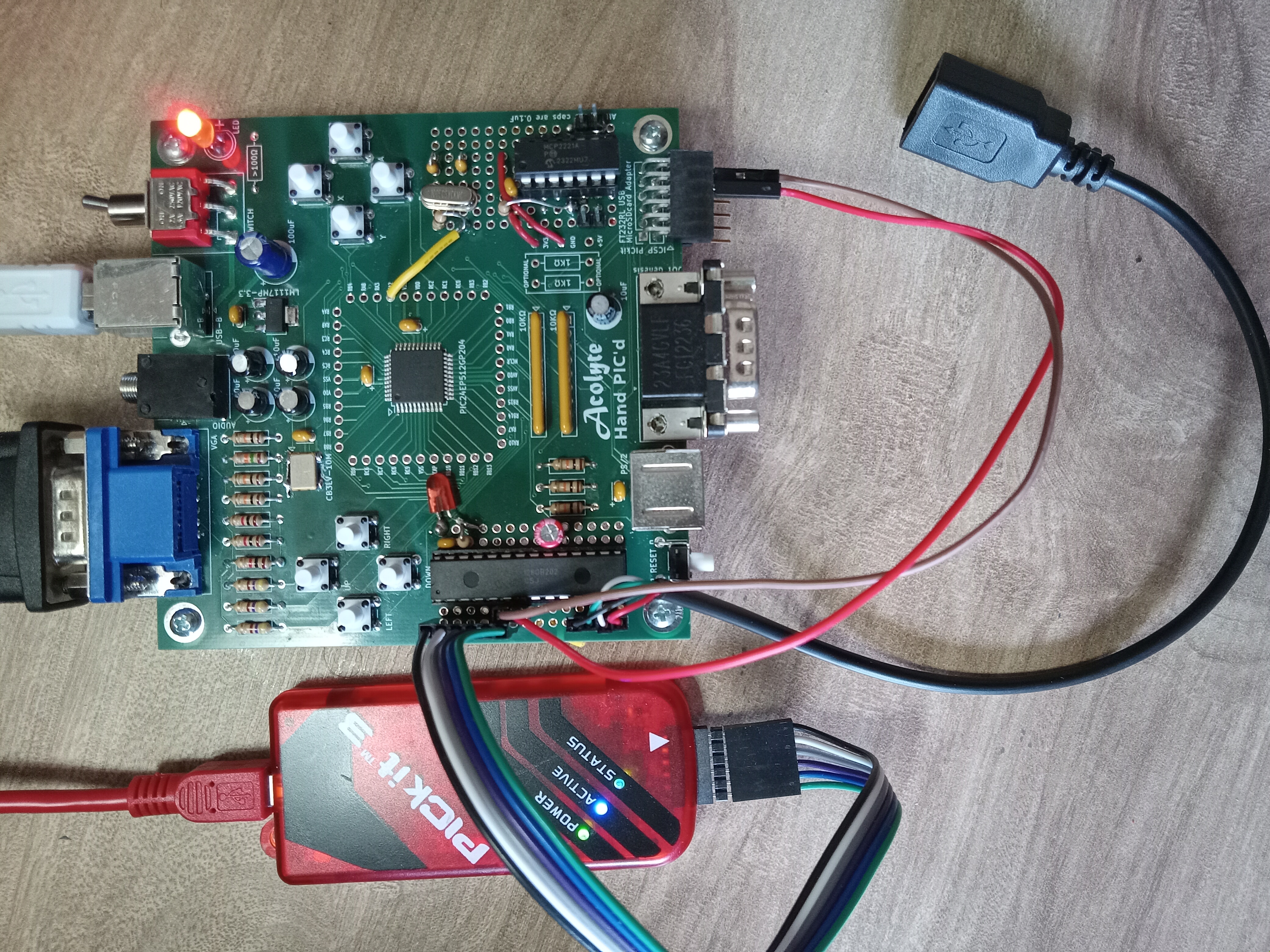

AcolyteHandPICd24, from the project README
From the project README

Main components on the AcolyteHandPICd24

PIC24EP512GP204LM1117MP-3.3

AcolyteHandPICd24 bill of materials (BOM)

108 components, 21 distinct parts.

QtyPartRefs
1
PIC24EP512GP204
U1
1
LM1117MP-3.3
U2
1
CB3LV
X1
1
Conn_02x06_Odd_Even
J1
1
Mini-DIN-6
J2
1
USB_B
J4
1
DE15_Receptacle_HighDensity
J5
1
AudioJack3
J6
8
Conn_02x14_Odd_Even
J10, J11, J12, J13, J14, J15, J16, J17
1
Conn_01x06
J18
1
SW_Push
SW1
8
SW_Push
SW2, SW4, SW5, SW6, SW7, SW8, SW9, SW10
1
SW_SPDT
SW3
4
TestPoint
TP1, TP2, TP3, TP4
47
TestPoint
TP5, TP6, TP7, TP8, TP9, TP10, TP11, TP12 +39
1
LED
D1
5
C_Polarized_Small_US
C1, C3, C4, C6, C8
1
C_Polarized_US
C2
5
C_Small
C5, C7, C19, C25, C28
16
R_US
R1, R2, R3, R4, R5, R6, R7, R8 +8
Show 1 more
QtyPartRefs
2
R_Network08_US
RN1, RN2

AcolyteHandPICd24 design files

The KiCad project lives in the stevenchadburrow/AcolyteHandPICd24 repository on GitHub; these links point at the commit this page was built from.

AcolyteHandPICd24: common questions

What microcontroller does the AcolyteHandPICd24 use?

The AcolyteHandPICd24 is built around the PIC24EP512GP204, from the PIC family.

How big is the AcolyteHandPICd24 PCB?

The AcolyteHandPICd24 measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the AcolyteHandPICd24?

108 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the AcolyteHandPICd24 design files?

From the stevenchadburrow/AcolyteHandPICd24 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AcolyteHandPICd24 design in my own project?

Yes, under the terms of its GPL-3.0 license, which stevenchadburrow chose for the repository.

Can I test firmware for the AcolyteHandPICd24 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
