Interactiles Module Neopixel
About the Interactiles Module Neopixel
Interactiles Module Neopixel is an open source PCB design by sullyjason, published on GitHub. It is a 2-layer board measuring 134.8 × 82.4 mm, with 22 components from 8 distinct parts.
By type, the board carries 4 connectors, 1 switch, 1 diode and 1 resistor.
It belongs with the displays & leds and iot & wireless designs in this gallery.
From the project
Interactive LED button grids that connect two locations over MQTT — press a button in one place, see it light up in the other. ESP32 + NeoPixel switch hardware, KiCad designs, and firmware.

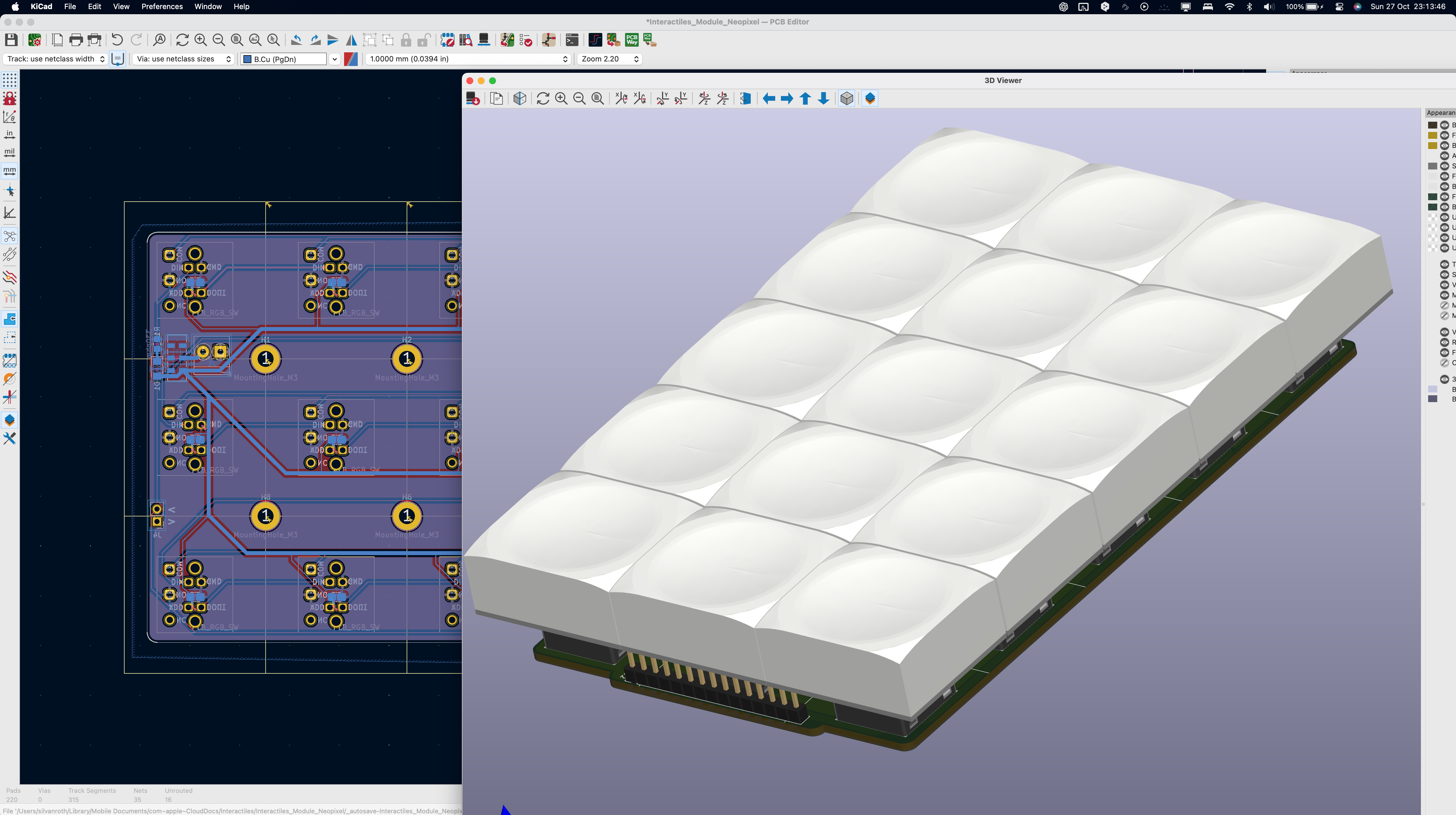

3×5 grid of PLB NeoPixel switches (~3×3 cm each). 15 switches routed to an FPC connector, with headers for LED data and screw terminals for 5V/GND.
WIP - signal loss issues on LED Data line.
Interactiles Module Neopixel bill of materials (BOM)
22 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SCREW_TERMINAL_2_P3.50MM Screw_Terminal_2_P3.50mm | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J1 |
| 1 | PINHD_1X15_MALE PINHD_1x15_Male | PinHeader_1x15_P2.54mm_Vertical | J2 |
| 1 | PINHD_1X15_MALE PINHD_1x15_Male | TE_1-84952-6_1x16-1MP_P1.0mm_Horizontal | J3 |
| 1 | PINHD_1X2_FEMALE PINHD_1x2_Female | PinSocket_1x02_P2.54mm_Vertical | J4 |
| 15 | PLB_RGB_SW | PLB-N1PRGB-GTW-AI | RGB_SW1, RGB_SW2, RGB_SW3, RGB_SW4, RGB_SW5, RGB_SW6, RGB_SW7, RGB_SW8 +7 |
| 1 | SW_SPST | SW_DPDT_CK_JS202011JCQN | SW1 |
| 1 | LED | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D1 |
| 1 | 330OHM 330ohm | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
Interactiles Module Neopixel design files
The KiCad project lives in the sullyjason/interactiles repository on GitHub; these links point at the commit this page was built from.
Interactiles Module Neopixel: common questions
How big is the Interactiles Module Neopixel?
The Interactiles Module Neopixel measures 134.8 × 82.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Interactiles Module Neopixel?
22 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Interactiles Module Neopixel design files?
From the sullyjason/interactiles repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Interactiles Module Neopixel design in my own project?
The repository has no license, so all rights stay with sullyjason. Use it as a reference, and ask the author before reusing the design.
