Mini Module
About the Mini Module
Mini Module is an open source PCB design by sullyjason, published on GitHub. It is a 4-layer board measuring 38 × 33.2 mm, with 25 components from 8 distinct parts.
By type, the board carries 4 resistors and 3 connectors.
It belongs with the displays & leds and iot & wireless designs in this gallery.
From the project
Interactive LED button grids that connect two locations over MQTT — press a button in one place, see it light up in the other. ESP32 + NeoPixel switch hardware, KiCad designs, and firmware.

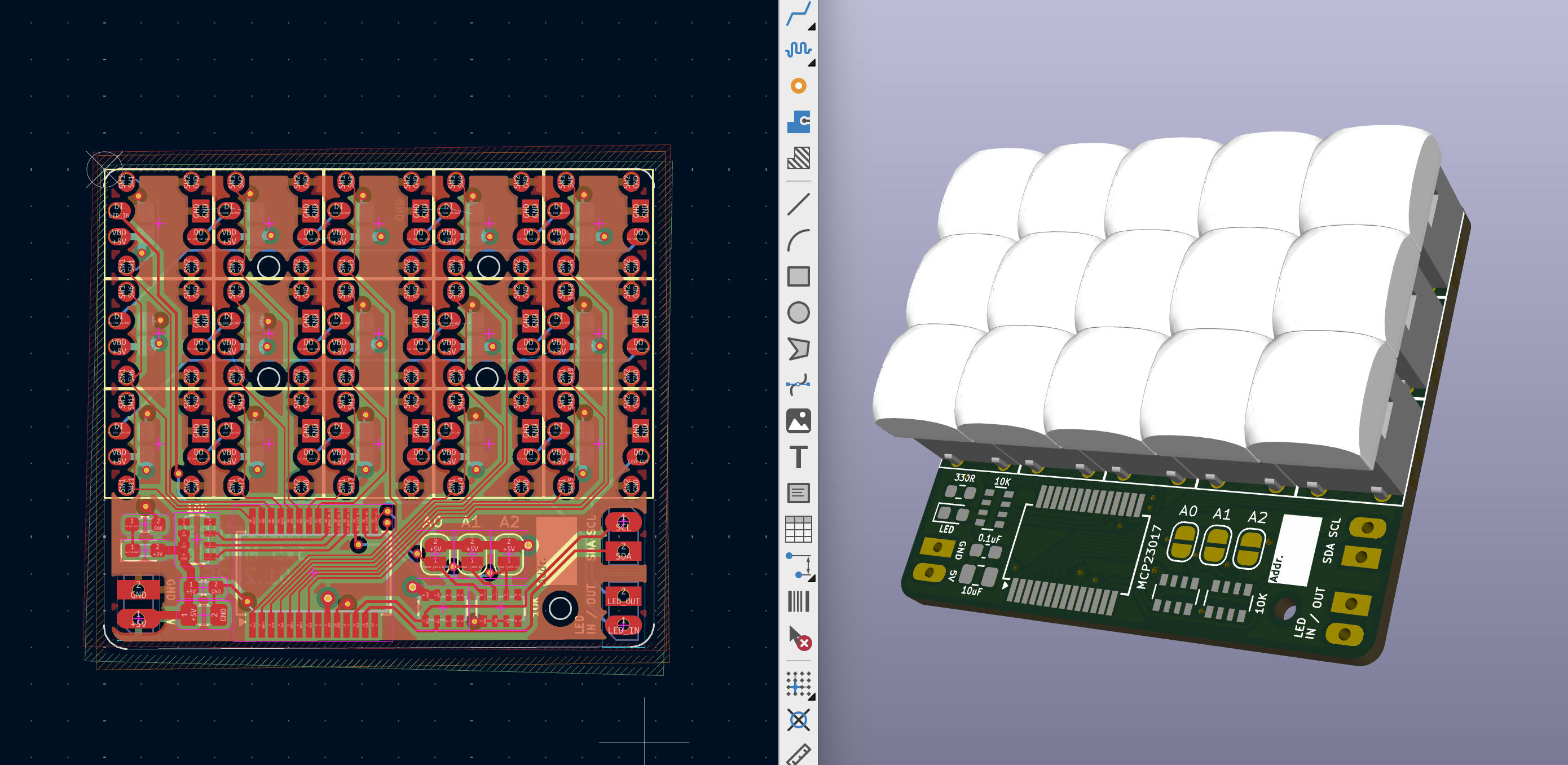

3×5 grid of TL1 NeoPixel switches (7.5mm² each). 4-layer board with MCP23017 I/O expander mounted directly on the underside. Pinout is non-obvious due to space constraints — refer to schematic.
Mini Module bill of materials (BOM)
25 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PINHD_1X2_MALE PINHD_1x2_Male | PinHeader_1x02_P2.00mm_Vertical | J1 |
| 2 | PINHD_1X2_FEMALE PINHD_1x2_Female | PinHeader_1x02_P2.00mm_Vertical | J2, J4 |
| 1 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | 0.1uF |
| 1 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | 10uF |
| 1 | MCP23017_SS | SSOP-28_5.3x10.2mm_P0.65mm | MCP23017 |
| 15 | PLB_RGB_SW | TL1_RBG_Adressable_1_mini | RGB_SW1, RGB_SW2, RGB_SW3, RGB_SW4, RGB_SW5, RGB_SW6, RGB_SW7, RGB_SW8 +7 |
| 1 | 330R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 3 | R_PACK04 R_Pack04 | R_Array_Convex_4x0603 | RN1, RN2, RN3 |
Mini Module design files
The KiCad project lives in the sullyjason/interactiles repository on GitHub; these links point at the commit this page was built from.
Mini Module: common questions
How big is the Mini Module?
The Mini Module measures 38 × 33.2 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Mini Module?
25 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Mini Module design files?
From the sullyjason/interactiles repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Mini Module design in my own project?
The repository has no license, so all rights stay with sullyjason. Use it as a reference, and ask the author before reusing the design.
