Interactiles Controller

sullyjason·interactiles·Interactiles_Controller/Interactiles_Controller.kicad_pcb

Interactiles Controller PCB layout, top view — open source ESP32 board by sullyjason

About the Interactiles Controller PCB

Interactiles Controller is an open source ESP32 PCB design by sullyjason, published on GitHub. It is a 2-layer board measuring 62.5 × 103.3 mm, with 25 components from 17 distinct parts.

Its main chip is the XIAO-ESP32-S3-SMD, from the ESP32 family. Other key parts include the TXS0102DCTR, SN74AHCT1G125DBVR and MCP23017_SS. By type, the board carries 7 capacitors, 5 ICs, 5 connectors, 5 resistors, 2 diodes and 1 switch.

It belongs with the iot & wireless and displays & leds designs in this gallery.

From the project

Interactive LED button grids that connect two locations over MQTT — press a button in one place, see it light up in the other. ESP32 + NeoPixel switch hardware, KiCad designs, and firmware.

Main controller board for the scaled-up Interactiles installation.

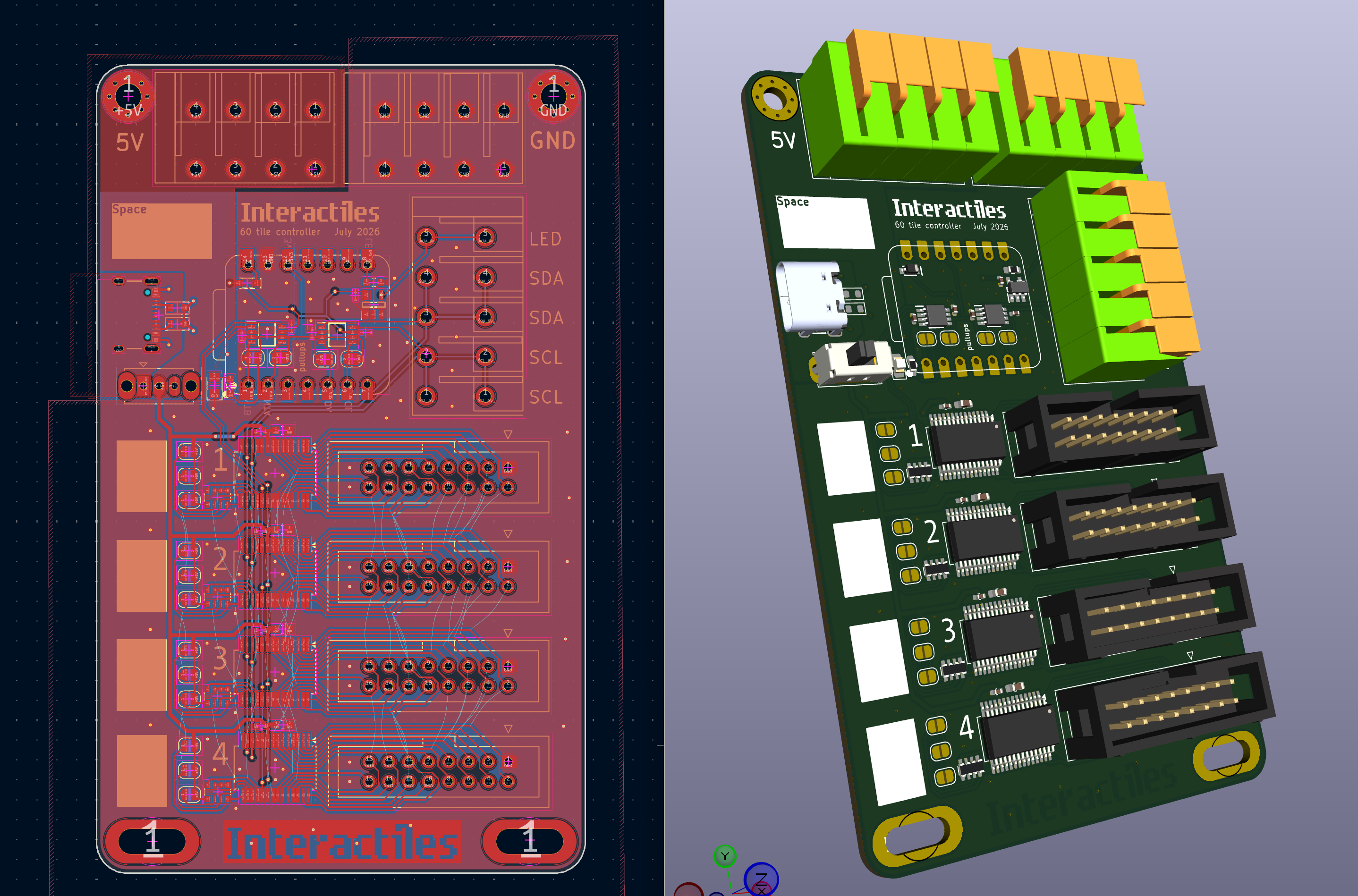

Interactiles Controller, from the project README
From the project README

Main components on the Interactiles Controller

TXS0102DCTRSN74AHCT1G125DBVRMCP23017_SSXIAO-ESP32-S3-SMD

Interactiles Controller bill of materials (BOM)

25 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
TXS0102DCTR
IC2, IC4
1
SN74AHCT1G125DBVR
IC3
1
MCP23017_SS
U2
1
XIAO-ESP32-S3-SMD
U6
1
USB_C_Receptacle
J2
2
SCREW_TERMINAL_01X04
Screw_Terminal_01x04
J3, J4
1
SCREW_TERMINAL_01X05
Screw_Terminal_01x05
J5
1
CONN_01X16
Conn_01x16
J7
1
Slide_Switch_SPDT
SW4
1
LED
D1
1
BAT60J
D6
5
1UF
1uF
Samsung Electro-Mechanics
C2, C4, C6, C7, C8
1
10UF
10uF
C3
1
0.1UF
0.1uF
C5
2
5.1K
5.1k
R1, R2
2
100R
R3, R8
1
10K
10k
RN1

Interactiles Controller design files

The KiCad project lives in the sullyjason/interactiles repository on GitHub; these links point at the commit this page was built from.

Interactiles Controller: common questions

What microcontroller does the Interactiles Controller use?

The Interactiles Controller is built around the XIAO-ESP32-S3-SMD, from the ESP32 family.

How big is the Interactiles Controller PCB?

The Interactiles Controller measures 62.5 × 103.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Interactiles Controller?

25 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Interactiles Controller design files?

From the sullyjason/interactiles repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Interactiles Controller design in my own project?

The repository has no license, so all rights stay with sullyjason. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Interactiles Controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
