Kgc

szczurkosmiczny·kgc·kicad/kgc.kicad_pcb

Kgc PCB layout, top view — open source RP2040/RP2350 board by szczurkosmiczny

About the Kgc PCB

Kgc is an open source RP2040/RP2350 PCB design by szczurkosmiczny, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 200 × 100 mm, with 36 components from 20 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the MAX7219. By type, the board carries 12 resistors, 10 diodes, 4 capacitors, 3 ICs and 1 buzzer.

From the project

Kerbal Guidance Computer

A HW flight computer for Kerbal Space Program inspired by NASA's DSKY - interface for Apollo Guidance Computer.

It consists of Python script for PC which grab data from the kRPC mod, KGC's DSKY based on Raspberry Pi Pico and program for it. DSKY communicate with PC via UART, so you also need some USB-UART converter. KiCad project for DSKY is located in kicad directory.

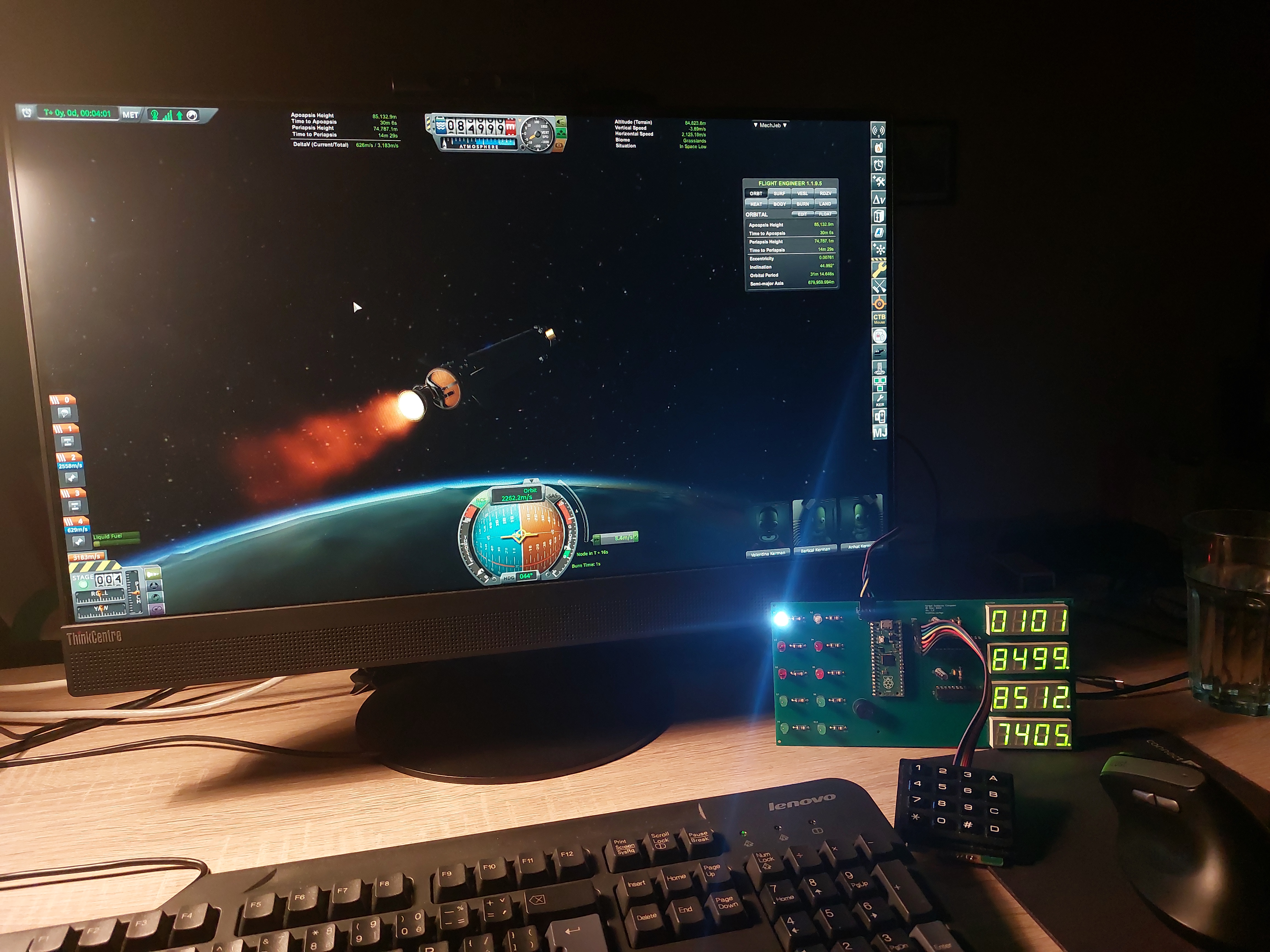

Kgc, from the project README
From the project README

Main components on the Kgc

PicoMAX7219

Kgc bill of materials (BOM)

36 components, 20 distinct parts.

QtyPartRefs
1
Pico
IC1
2
MAX7219
IC2, IC3
1
Buzzer
BZ1
4
CC56-12GWA
DISP1, DISP2, DISP3, DISP4
1
ak1604
KBD1
1
UART
UART1
1
CON
D1
1
FLD
D2
1
ELC
D3
1
MOP
D4
1
LFO
D5
1
OTR
D6
1
SAS
D7
1
RCS
D8
1
GEA
D9
1
BRK
D10
2
10 uF
C1, C3
2
0.1 uF
C2, C4
10
100R
R1, R2, R3, R4, R5, R6, R7, R8 +2
2
10k
R11, R12

Kgc design files

The KiCad project lives in the szczurkosmiczny/kgc repository on GitHub; these links point at the commit this page was built from.

Kgc: common questions

What microcontroller does the Kgc use?

The Kgc is built around the Pico, from the RP2040/RP2350 family.

How big is the Kgc PCB?

The Kgc measures 200 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kgc?

36 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kgc design files?

From the szczurkosmiczny/kgc repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kgc design in my own project?

Yes, under the terms of its GPL-3.0 license, which szczurkosmiczny chose for the repository.

Can I test firmware for the Kgc without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
