Esp32-tiny led controller

t3mschm2d·esp32-tiny-led-controller·pcb/v1.0/esp32-led.kicad_pcb

Esp32-tiny led controller PCB layout, top view — open source ESP32 board by t3mschm2d
Simulate this board

About the Esp32-tiny led controller PCB

Esp32-tiny led controller is an open source ESP32 PCB design by t3mschm2d, published on GitHub. It is a 4-layer board measuring 33.5 × 33.5 mm, with 25 components from 21 distinct parts.

Its main chip is the ESP32-U4WDH, from the ESP32 family. Other key parts include the CP2102N-AXX-XQFN24, AMS1117-3.3 and YAGEO_ANT3216LL00R2400A. By type, the board carries 9 capacitors, 7 resistors, 3 ICs, 1 module, 1 transistor and 1 connector.

It belongs with the iot & wireless and usb & debug tools designs in this gallery.

From the project

The main goal of this project is to develop an OpenHardware board for controlling digital LED strips. The control shall be done via Homeassistant and esphome.The PCB is based around an ESP32-U4WDH microcontroller and includes the following features:

The main goal of this project is to develop an OpenHardware board for controlling digital LED strips. The control shall be done via Homeassistant and esphome.The PCB is based around an ESP32-U4WDH microcontroller and includes the following features:

- 2,4GHz antenna for WLAN / Bluetooth - 5 pin screw terminal for external power and the LED-strip - USB-C connector - USB-to-UART converter - JST PH-S4B for connecting external sensors

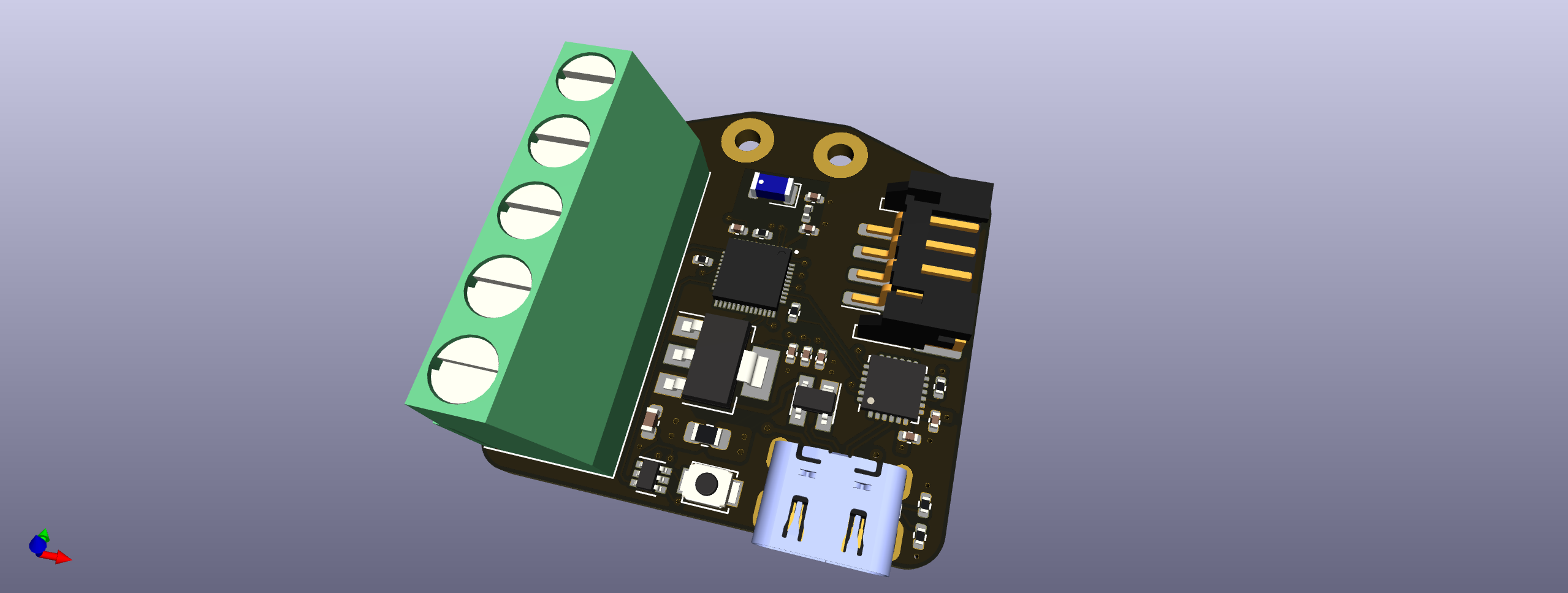

Esp32-tiny led controller, from the project README
From the project README

Main components on the Esp32-tiny led controller

ESP32-U4WDHCP2102N-AXX-XQFN24AMS1117-3.3YAGEO_ANT3216LL00R2400A

Esp32-tiny led controller bill of materials (BOM)

25 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-U4WDH
IC1
1
CP2102N-AXX-XQFN24
CP2102N-Axx-xQFN24
U1
1
AMS1117-3.3
U2
1
YAGEO_ANT3216LL00R2400A
A1
1
MUN5211DW1
Q1
1
JST-PH-4
J3
1
SW_Push
SW1
1
SP0503BAHT
D1
1
1n
L1
1
8p
C1
1
10P
10p
C2
2
100N
100n
C3, C9
2
4.7U
4.7u
C4, C8
1
10N
10n
C5
1
10U
10u
C6
1
10U
10u
C7
2
100K
100k
R1, R2
1
1k
R3
1
499R
R4
1
C169855
0R
R5
Show 1 more
QtyPartRefs
2
5.11K
R6, R7

Esp32-tiny led controller design files

The KiCad project lives in the t3mschm2d/esp32-tiny-led-controller repository on GitHub; these links point at the commit this page was built from.

Esp32-tiny led controller: common questions

What microcontroller does the Esp32-tiny led controller use?

The Esp32-tiny led controller is built around the ESP32-U4WDH, from the ESP32 family.

How big is the Esp32-tiny led controller PCB?

The Esp32-tiny led controller measures 33.5 × 33.5 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the Esp32-tiny led controller?

25 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32-tiny led controller design files?

From the t3mschm2d/esp32-tiny-led-controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32-tiny led controller design in my own project?

The repository has no license, so all rights stay with t3mschm2d. Use it as a reference, and ask the author before reusing the design.
