KmartReflowMiniOven
About the KmartReflowMiniOven PCB
KmartReflowMiniOven is an open source PCB design by takigama, published on GitHub. It is a 2-layer board measuring 49.5 × 35.6 mm, with 19 components from 15 distinct parts.
By type, the board carries 10 connectors, 6 resistors and 3 capacitors.
It belongs with the sensors designs in this gallery.
From the project

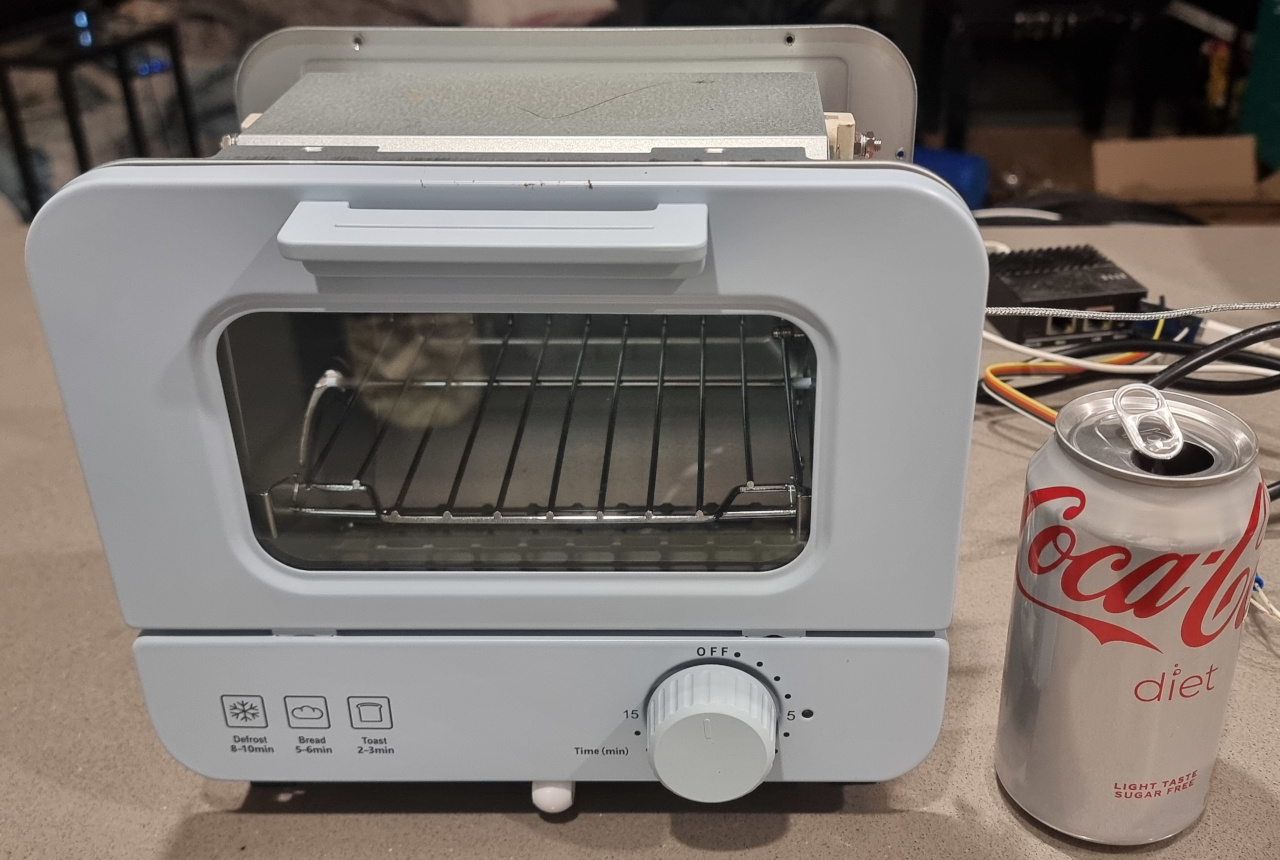

Reflow Oven from the KMart mini oven
its only just started and the code is ugly as sin.
The goal is to produce a codebase that might be useful for any reflow oven where: - heat control is done via SSR (100hz cycle) - Temperature via a thermistor (similar to 3d printer) - Lilygo t-display controller (with a daughter board), but this might be changed later for something more "modular"
Yes, I know theres tonnes of toaster oven reflow ovens around (I even have one!), but this one is half the size and half the price and felt like a fun project...
KmartReflowMiniOven bill of materials (BOM)
19 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | T Display RST Side | PinHeader_1x12_P2.54mm_Vertical | J1 |
| 1 | T Display Empty Side | PinHeader_1x12_P2.54mm_Vertical | J2 |
| 1 | T1 | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | T2 | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 1 | T3 | PinHeader_1x02_P2.54mm_Vertical | J5 |
| 1 | I2C | PinHeader_1x04_P2.54mm_Vertical | J6 |
| 1 | SSR | PinHeader_1x02_P2.54mm_Vertical | J7 |
| 1 | Breakout | PinHeader_1x08_P2.54mm_Vertical | J8 |
| 1 | S3-ZERO-POWERSIDE | PinHeader_1x09_P2.54mm_Vertical | J9 |
| 1 | S3-ZERO-SERIALSIDE | PinHeader_1x09_P2.54mm_Vertical | J10 |
| 3 | 10uf | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2, C3 |
| 1 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 1 | 2k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 1 | 5k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 3 | 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4, R5, R6 |
KmartReflowMiniOven design files
The KiCad project lives in the takigama/KmartReflowMiniOven repository on GitHub; these links point at the commit this page was built from.
KmartReflowMiniOven: common questions
How big is the KmartReflowMiniOven PCB?
The KmartReflowMiniOven measures 49.5 × 35.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KmartReflowMiniOven?
19 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the KmartReflowMiniOven design files?
From the takigama/KmartReflowMiniOven repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the KmartReflowMiniOven design in my own project?
The repository has no license, so all rights stay with takigama. Use it as a reference, and ask the author before reusing the design.
