Electrode Breakout

TallesSantosCUBoulder·EIT-Capstone-Project-2023·PCBs/Breakout_Boards/Electrode_Breakout/Electrode_Breakout.kicad_pcb

Electrode Breakout layout, top view — open source board by TallesSantosCUBoulder

About the Electrode Breakout

Electrode Breakout is an open source PCB design by TallesSantosCUBoulder, published on GitHub under the MIT license. It is a 2-layer board measuring 30.3 × 65.8 mm, with 6 components from 3 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This repository was created for the Electrical Impedance Tomography (EIT) Senior Design Project. The goals of this project were to make open-source hardware and software to reduce the cost of EIT in medical imaging.

This repository was created for the Electrical Impedance Tomography (EIT) Senior Design Project. The goals of this project were to make open-source hardware and software to reduce the cost of EIT in medical imaging.

First Year Team: Diego Sena, Keegan Erickson, Jonathan Keleppinger

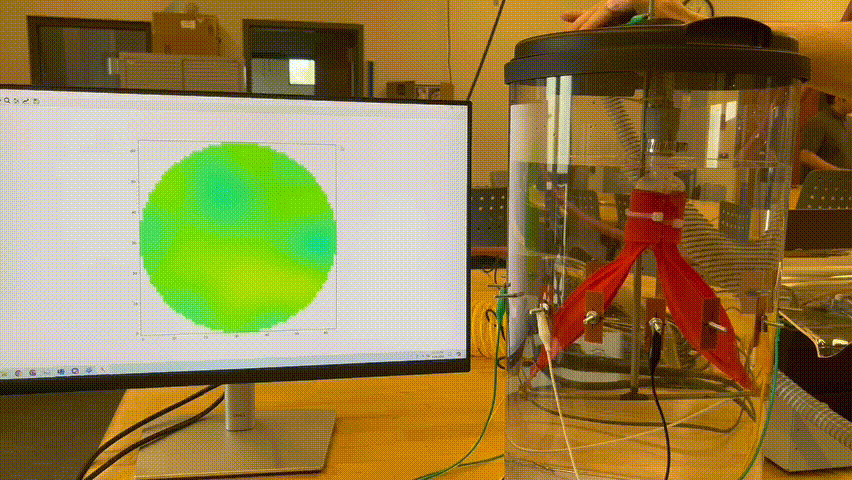

Electrode Breakout, from the project README
From the project README

Electrode Breakout bill of materials (BOM)

6 components, 3 distinct parts.

QtyPartRefs
2
DB-9_Female
J1, J2
2
Conn_01x06
J3, J4
2
Conn_01x03
J5, J6

Electrode Breakout design files

The KiCad project lives in the TallesSantosCUBoulder/EIT-Capstone-Project-2023 repository on GitHub; these links point at the commit this page was built from.

Electrode Breakout: common questions

How big is the Electrode Breakout?

The Electrode Breakout measures 30.3 × 65.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Electrode Breakout?

6 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Electrode Breakout design files?

From the TallesSantosCUBoulder/EIT-Capstone-Project-2023 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Electrode Breakout design in my own project?

Yes, under the terms of its MIT license, which TallesSantosCUBoulder chose for the repository.
