About the C64 Pi1541-III Module

C64 Pi1541-III Module is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 100 × 100 mm, with 20 components from 13 distinct parts.

Other key parts include the 7406 and I2C LC. By type, the board carries 6 resistors, 5 modules, 4 connectors, 2 capacitors, 1 IC and 1 buzzer.

It belongs with the retro computing designs in this gallery.

From the project

I wanted a Pi1541-module that did not feel like I was handling bare electronics, so I made another that manages to hide most of the scary bits without needing a 3d-printer.

- 1> Build instructions - 2> Schematic - 3> BOM

1) There are multiple configurations of these being sold, this is usually sold with a blue PCB. When in doubt, compare the sale listing with the one shown in this image. 2) This is the resistor for the LEDs mounted on Pi1541-III Module Panel, the value need to be sized according to the type of LED being used. This value is a somewhat safe choice cheaper coloured LEDs, for anything blue or especially marked as being bright - then you need to calculate a proper value for these. 3) There are unfortunately counterfeit 7406-chips being circulated…

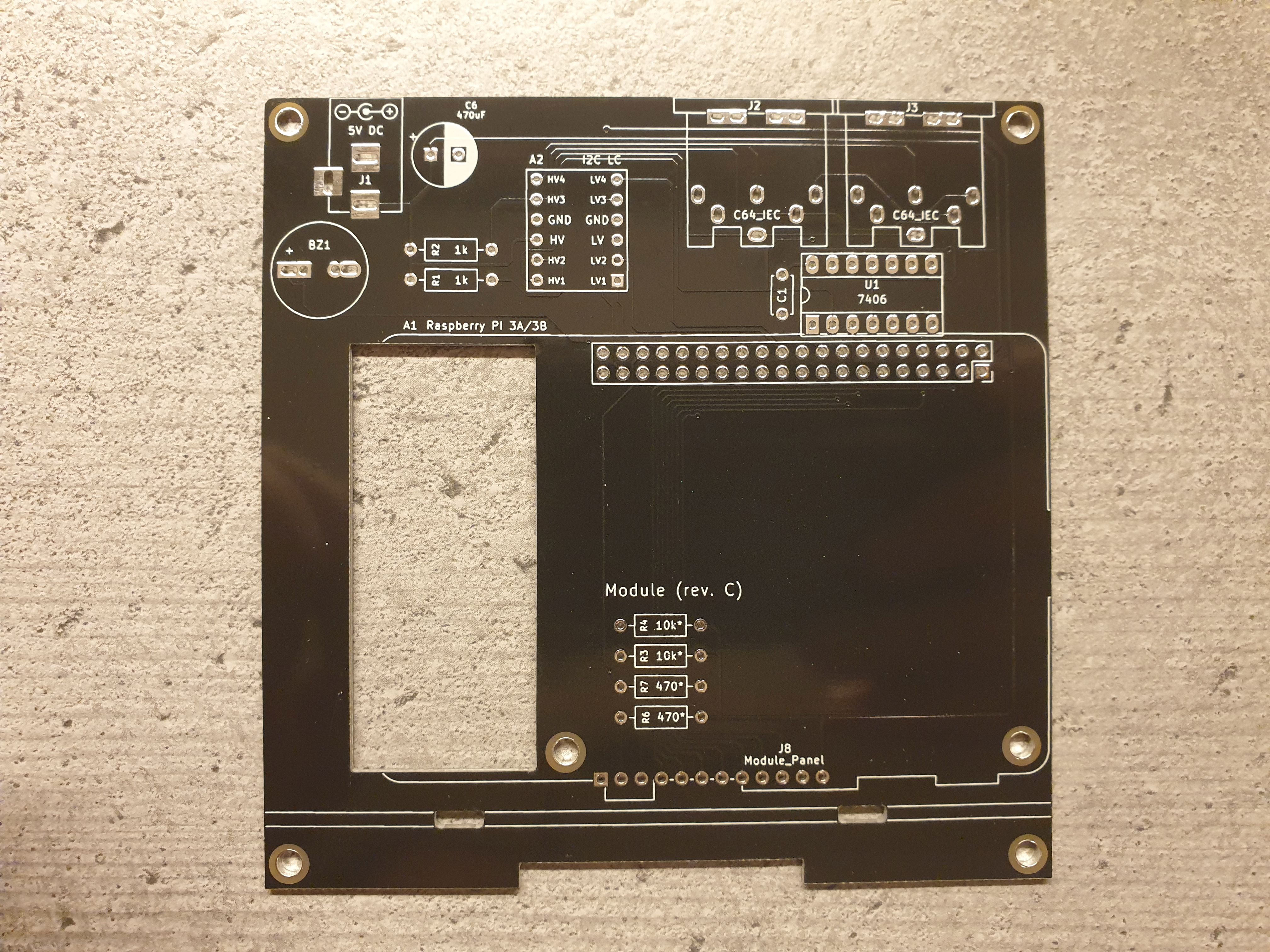

C64 Pi1541-III Module, from the project README
From the project README

Main components on the C64 Pi1541-III Module

7406I2C LC

C64 Pi1541-III Module bill of materials (BOM)

20 components, 13 distinct parts.

QtyPartRefs
1
7406
U1
1
I2C LC
A2
4
Mounting
M1, M2, M3, M4
1
DC IN
J1
2
C64_IEC
J2, J3
1
Module_Panel
J8
1
Buzzer
BZ1
1
—
Pi1541-drive
1
100nF
C1
1
470uF
C6
2
1k
R1, R2
2
10k*
R3, R4
2
470*
R6, R7

C64 Pi1541-III Module design files

The KiCad project lives in the tebl/C64-Pi1541-III repository on GitHub; these links point at the commit this page was built from.

C64 Pi1541-III Module: common questions

How big is the C64 Pi1541-III Module?

The C64 Pi1541-III Module measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the C64 Pi1541-III Module?

20 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the C64 Pi1541-III Module design files?

From the tebl/C64-Pi1541-III repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the C64 Pi1541-III Module design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
