C64 Pi1541-III Module Panel

tebl·C64-Pi1541-III·C64 Pi1541-III Module Panel/C64 Pi1541-III Module Panel.kicad_pcb

C64 Pi1541-III Module Panel layout, top view — open source board by tebl

About the C64 Pi1541-III Module Panel

C64 Pi1541-III Module Panel is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 100 × 23.2 mm, with 11 components from 8 distinct parts.

Other key parts include the OLED. By type, the board carries 4 modules, 2 switches, 2 diodes, 1 IC and 1 connector.

It belongs with the retro computing and displays & leds designs in this gallery.

From the project

I wanted a Pi1541-module that did not feel like I was handling bare electronics, so I made another that manages to hide most of the scary bits without needing a 3d-printer.

- 1> Build instructions - 2> Schematic - 3> BOM

1) Many of these will be listed for sale as 1.3" ssd1306-based OLED displays, but they actually have the slightly different sh1106-controller. Something to keep in mind when ordering. 2) These are used in various places of the project, these are available in the form of kits usually advertised M3 nylon standoff kit which should contain most of what you'd need though you should check that they include them in sufficient quantity.

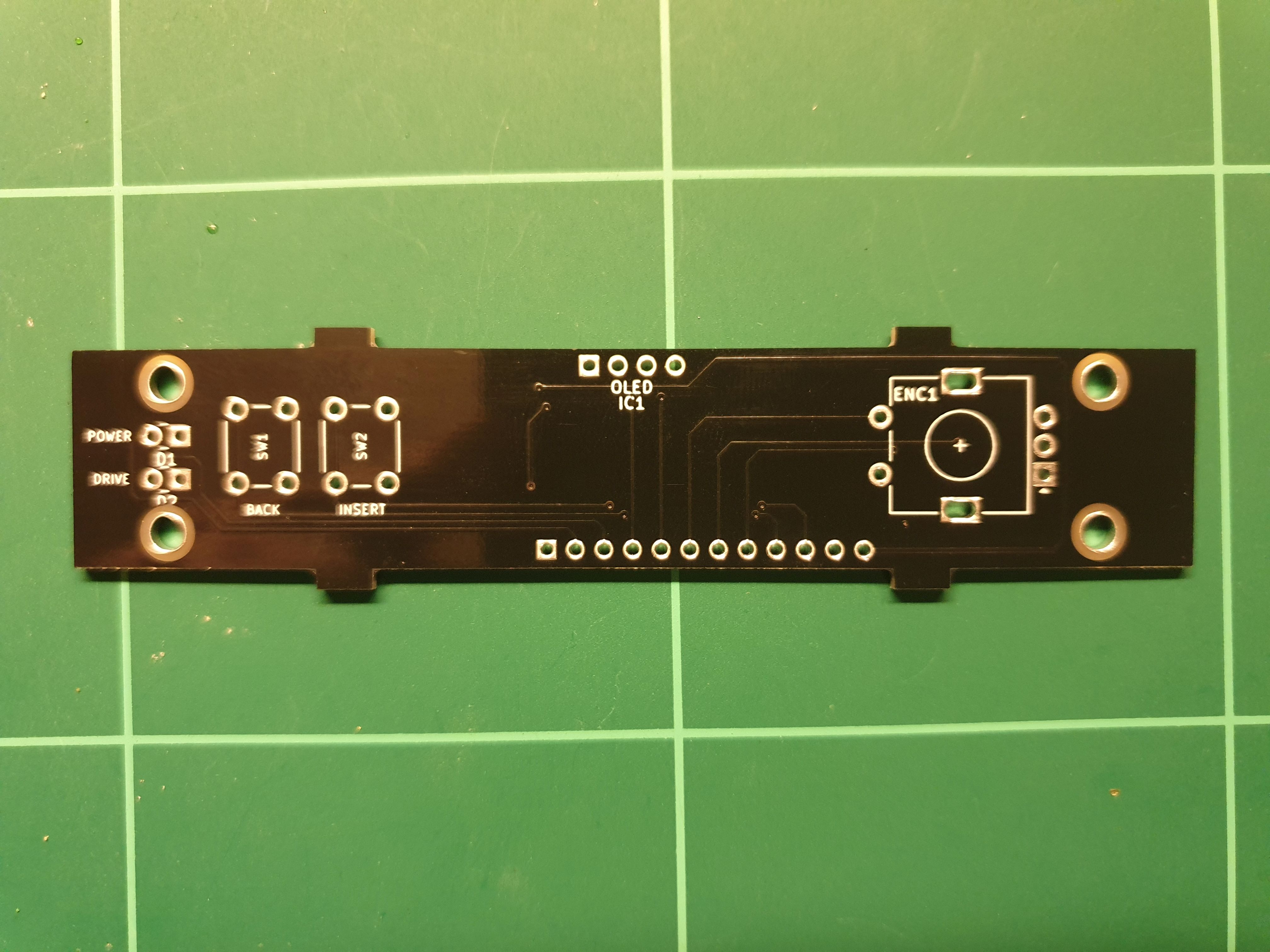

C64 Pi1541-III Module Panel, from the project README
From the project README

Main components on the C64 Pi1541-III Module Panel

OLED

C64 Pi1541-III Module Panel bill of materials (BOM)

11 components, 8 distinct parts.

QtyPartRefs
1
OLED
IC1
4
Mounting_Pin
M1, M2, M3, M4
1
Module Panel
J1
1
Rotary_Encoder_Switch
ENC1
1
BACK
SW1
1
INSERT
SW2
1
POWER
D1
1
DRIVE
D2

C64 Pi1541-III Module Panel design files

The KiCad project lives in the tebl/C64-Pi1541-III repository on GitHub; these links point at the commit this page was built from.

C64 Pi1541-III Module Panel: common questions

How big is the C64 Pi1541-III Module Panel?

The C64 Pi1541-III Module Panel measures 100 × 23.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the C64 Pi1541-III Module Panel?

11 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the C64 Pi1541-III Module Panel design files?

From the tebl/C64-Pi1541-III repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the C64 Pi1541-III Module Panel design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
