About the ZX Cartridge 1983 PCB

ZX Cartridge 1983 is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 57.9 × 71.1 mm, with 18 components from 11 distinct parts.

Other key parts include the 27C020 and MC14495P1. By type, the board carries 5 resistors, 4 modules, 2 ICs, 2 capacitors, 1 connector and 1 jumper.

It belongs with the test & measurement designs in this gallery.

From the project

An old-school remake of the ZX Interface 2 with some modern tweaks - mainly by integrating bank switching into the interface itself. Everything done with basic logic chips and components, no magic black boxes to be found anywhere!

True to form, I didn't simply want to build a 16K cartridge - so I sprinkled a little bit of extra feature creep upon it. I figured that I'd look into being able to use even larger EEPROMs that what I'd used so far, with the 27C020 able to hold 16 of these images - pretty extreme when considering that the system only had 10 officially released titles. There are a few cassette conversions that can be used as well, good enough to fill a couple of them. With 16 images possible combinations I needed a way to choose between them, cheap as I am the solution became a 4 position DIP-switch. Just…

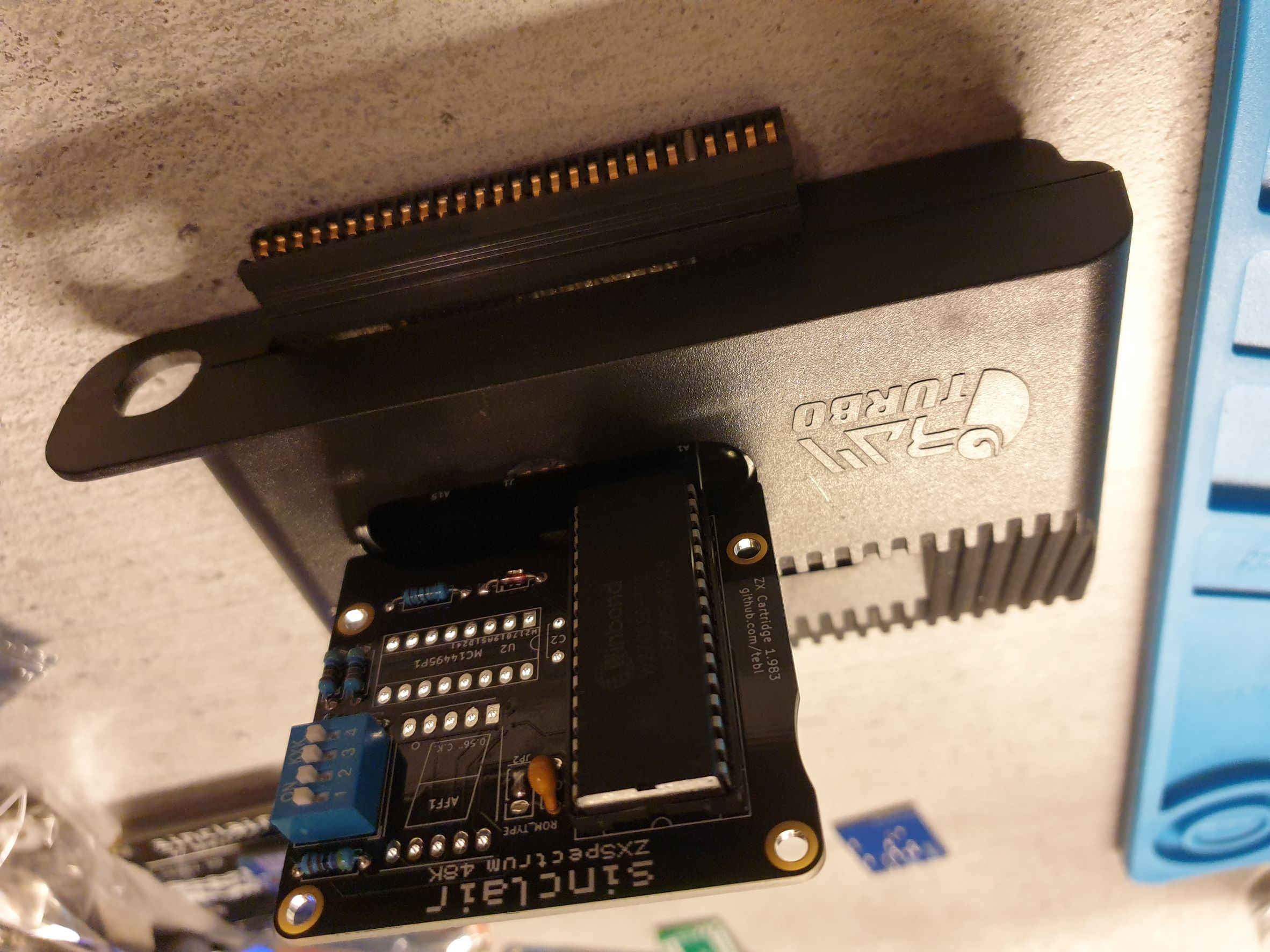

ZX Cartridge 1983, from the project README
From the project README

Main components on the ZX Cartridge 1983

27C020MC14495P1

ZX Cartridge 1983 bill of materials (BOM)

18 components, 11 distinct parts.

QtyPartRefs
1
27C020
U1
1
MC14495P1
U2
4
Mounting
M1, M2, M3, M4
1
Cartridge
J1
1
ROM_TYPE
JP2
1
ROM_SEL
SW1
1
0.56" C.K.
AFF1
1
1N4148
D1
2
100nF
C1, C2
1
680
R1
4
4k7
R2, R3, R4, R5

ZX Cartridge 1983 design files

The KiCad project lives in the tebl/ZX-Interface-2.021 repository on GitHub; these links point at the commit this page was built from.

ZX Cartridge 1983: common questions

How big is the ZX Cartridge 1983 PCB?

The ZX Cartridge 1983 measures 57.9 × 71.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ZX Cartridge 1983?

18 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the ZX Cartridge 1983 design files?

From the tebl/ZX-Interface-2.021 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ZX Cartridge 1983 design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
