About the ZX Interface 2021 PCB

ZX Interface 2021 is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 87.6 × 100 mm, with 56 components from 23 distinct parts.

Other key parts include the 74LS245, 74LS27, 74LS04, 74LS273 and 74LS138. By type, the board carries 16 diodes, 10 resistors, 8 capacitors, 7 ICs, 6 modules and 5 connectors.

It belongs with the test & measurement designs in this gallery.

From the project

An old-school remake of the ZX Interface 2 with some modern tweaks - mainly by integrating bank switching into the interface itself. Everything done with basic logic chips and components, no magic black boxes to be found anywhere!

While the original interface only supported 16K cartridges, severely limiting the amount of titles that could have been released for it, I didn't want to design a new interface without addressing those shortcomings. This was solved by adding a new section of pins to the end of the cartridge - these'll probably get in the way of original cartridges, but I can't afford any of those so unless someone straight-up sends me some I can't design anything for them. In theory, it should work without any changes.

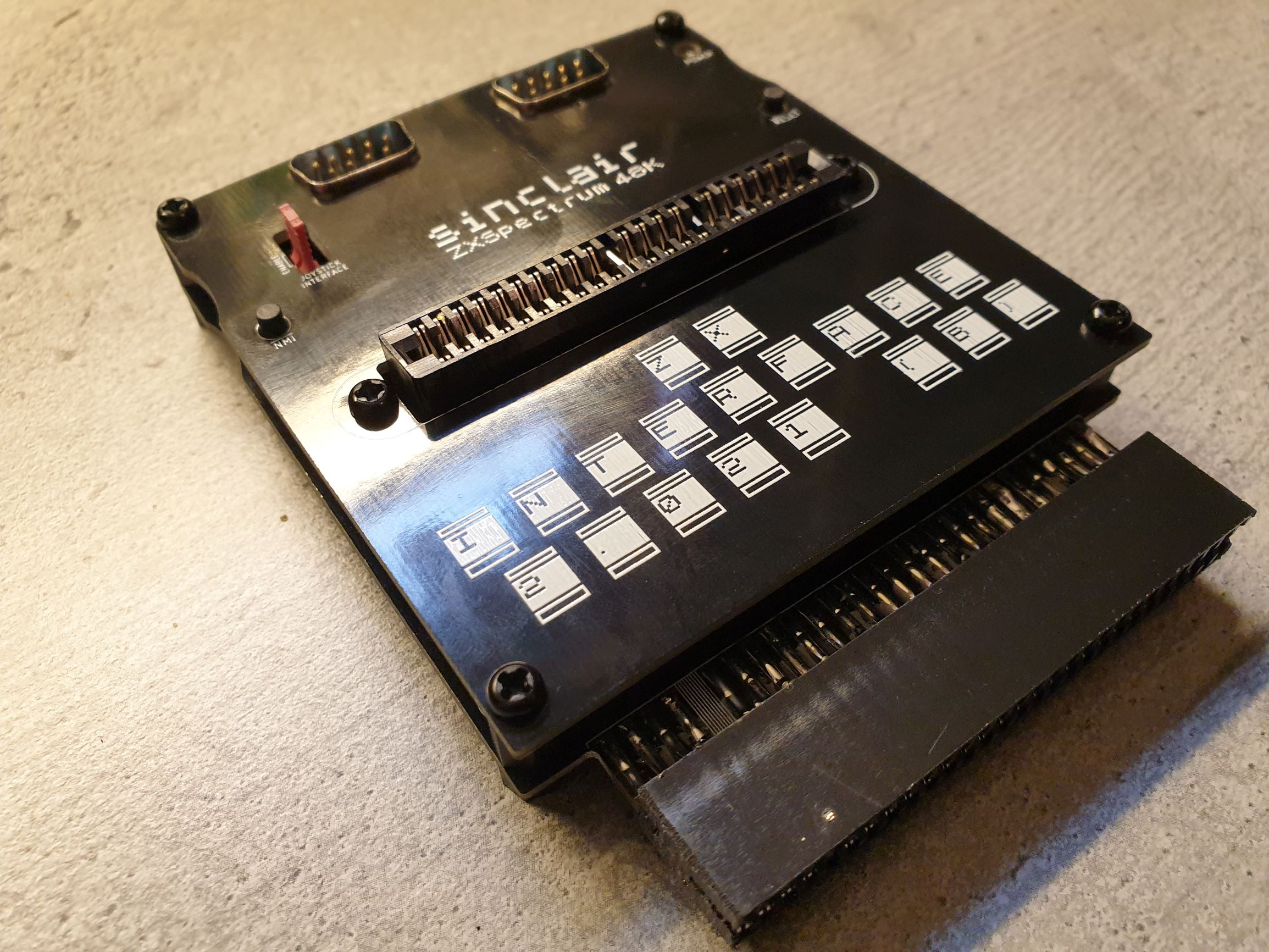

ZX Interface 2021, from the project README
From the project README

Main components on the ZX Interface 2021

74LS24574LS2774LS0474LS27374LS138

ZX Interface 2021 bill of materials (BOM)

56 components, 23 distinct parts.

QtyPartRefs
2
74LS245
U1, U2
1
74LS27
U3
1
74LS04
U4
1
74LS273
U6
2
74LS138
U7, U8
6
Mounting
M1, M2, M3, M4, M5, M6
1
2N3904
Q1
1
JOYSTICK 2
J1
1
JOYSTICK 1
J2
1
BA14_HI
J3
1
Extended Cartridge Port
J4
1
JOYSTICK_EN
J5
1
~RESET
SW1
1
~NMI
SW2
1
ZX Spectrum
Z1
15
1n4148
D1, D2, D3, D4, D5, D6, D7, D8 +7
1
POWER
D11
7
100nF
C1, C2, C3, C4, C6, C7, C8
1
10uF
C5
6
10k
R1, R2, R3, R4, R5, R12
Show 3 more
QtyPartRefs
2
1k
R11, R13
1
330
R14
1
20k
R15

ZX Interface 2021 design files

The KiCad project lives in the tebl/ZX-Interface-2.021 repository on GitHub; these links point at the commit this page was built from.

ZX Interface 2021: common questions

How big is the ZX Interface 2021 PCB?

The ZX Interface 2021 measures 87.6 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ZX Interface 2021?

56 components, from 23 distinct parts. The full bill of materials is listed on this page.

Where can I download the ZX Interface 2021 design files?

From the tebl/ZX-Interface-2.021 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ZX Interface 2021 design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
