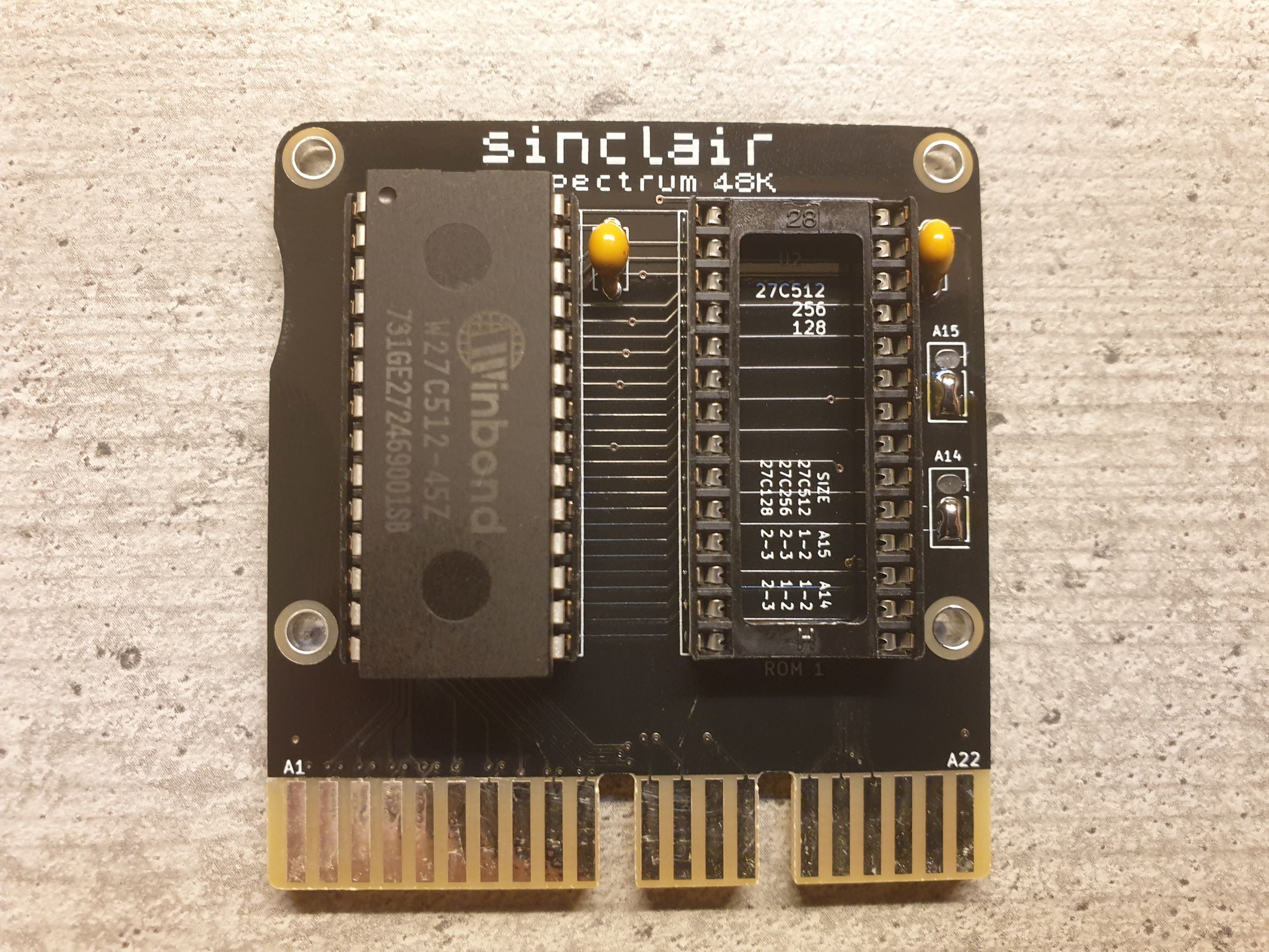

ZX Cartridge 2021
About the ZX Cartridge 2021 PCB
ZX Cartridge 2021 is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 57.9 × 61.6 mm, with 11 components from 6 distinct parts.
Other key parts include the 27C512. By type, the board carries 4 modules, 2 ICs, 2 jumpers, 2 capacitors and 1 connector.
It belongs with the test & measurement designs in this gallery.
From the project
An old-school remake of the ZX Interface 2 with some modern tweaks - mainly by integrating bank switching into the interface itself. Everything done with basic logic chips and components, no magic black boxes to be found anywhere!
Though the interface itself is able to address ROM chips in sizes up to 512K, four of them actually, the cartridge itself was designed with the ROM chips ranging from 27C128 up to 27C512. I might make a monster cartridge at some point, but given that there were only around 10 cartridges released for the original system - having the space for 8 of them is a good starting point.
Main components on the ZX Cartridge 2021
ZX Cartridge 2021 bill of materials (BOM)
11 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 27C512 | DIP-28_W15.24mm_Socket_LongPads | U1, U2 |
| 4 | Mounting | M3_pin | M1, M2, M3, M4 |
| 1 | Cartridge | ZX_Spectrum_Cartridge | J1 |
| 1 | A15 | select | JP1 |
| 1 | A14 | select | JP2 |
| 2 | 100nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C1, C2 |
ZX Cartridge 2021 design files
The KiCad project lives in the tebl/ZX-Interface-2.021 repository on GitHub; these links point at the commit this page was built from.
ZX Cartridge 2021: common questions
How big is the ZX Cartridge 2021 PCB?
The ZX Cartridge 2021 measures 57.9 × 61.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ZX Cartridge 2021?
11 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the ZX Cartridge 2021 design files?
From the tebl/ZX-Interface-2.021 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ZX Cartridge 2021 design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
