ZX Interface 2021 FA1

tebl·ZX-Interface-2.021·faceplates/ZX Interface 2021 FA1/ZX Interface 2021 FA1.kicad_pcb

ZX Interface 2021 FA1 PCB layout, top view — open source board by tebl

About the ZX Interface 2021 FA1 PCB

ZX Interface 2021 FA1 is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 87.6 × 92.7 mm, with 6 components from 1 distinct parts.

It belongs with the test & measurement designs in this gallery.

From the project

An old-school remake of the ZX Interface 2 with some modern tweaks - mainly by integrating bank switching into the interface itself. Everything done with basic logic chips and components, no magic black boxes to be found anywhere!

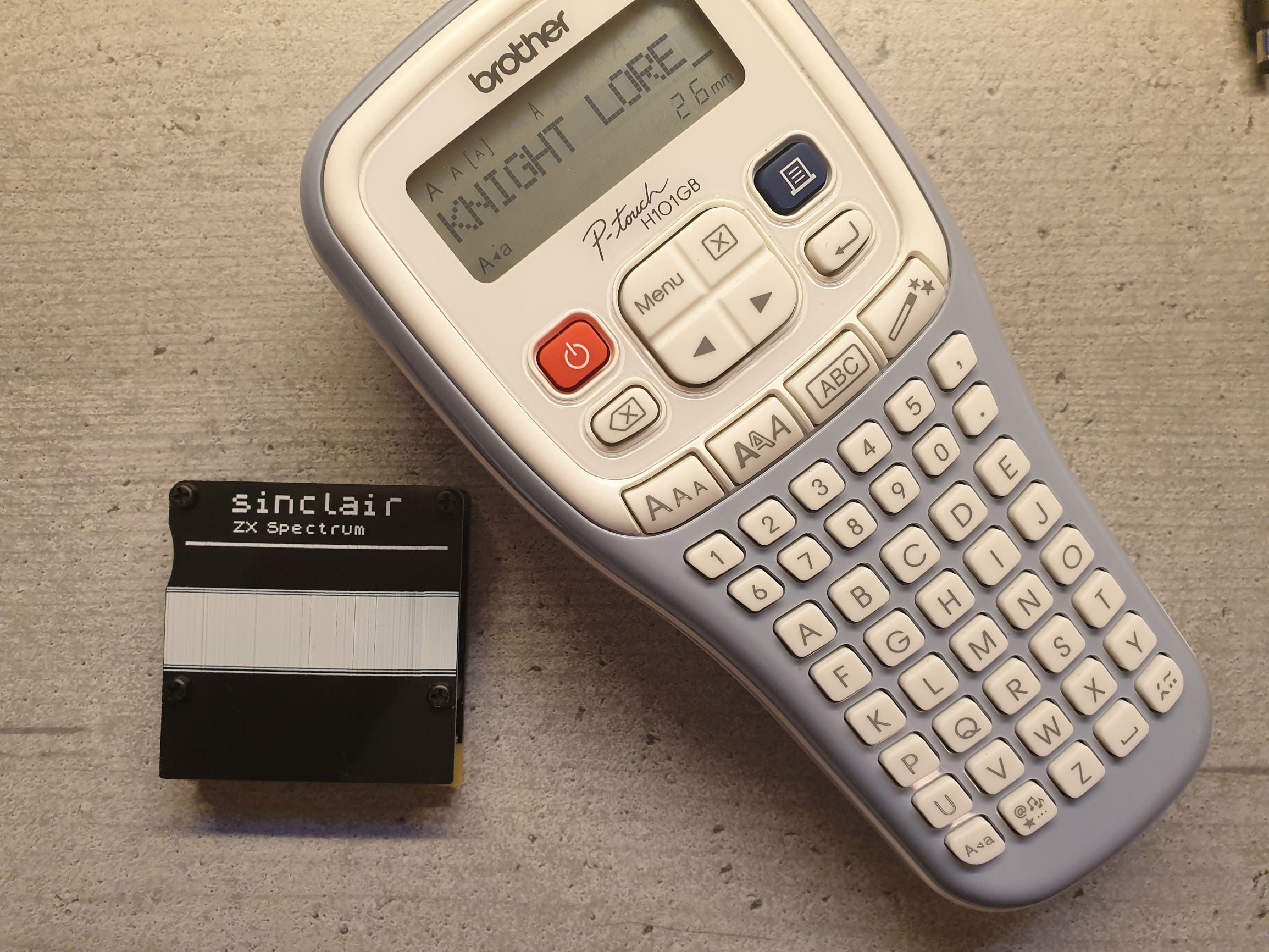

ZX Interface 2021 FA1, from the project README
From the project README

ZX Interface 2021 FA1 bill of materials (BOM)

6 components, 1 distinct parts.

QtyPartRefs
6
Mounting
M1, M2, M3, M4, M5, M6

ZX Interface 2021 FA1 design files

The KiCad project lives in the tebl/ZX-Interface-2.021 repository on GitHub; these links point at the commit this page was built from.

ZX Interface 2021 FA1: common questions

How big is the ZX Interface 2021 FA1 PCB?

The ZX Interface 2021 FA1 measures 87.6 × 92.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ZX Interface 2021 FA1?

6 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the ZX Interface 2021 FA1 design files?

From the tebl/ZX-Interface-2.021 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ZX Interface 2021 FA1 design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
