TekTag BioSensor

teklabsdigital·TekTag·electronics/pcb_main/tektag.kicad_pcb

TekTag BioSensor PCB layout, top view — open source STM32 board by teklabsdigital

About the TekTag BioSensor PCB

TekTag BioSensor is an open source STM32 PCB design by teklabsdigital, published on GitHub under the MIT license. It is a 6-layer board measuring 26 × 25 mm, with 77 components from 48 distinct parts.

Its main chip is the STM32WB55VGY6TR - Seq, from the STM32 family. Other key parts include the MLPF-WB55-01E3, BQ51052BYFP, TLV75533PDRV, KTD2052 and LSM6DSV16XTR. By type, the board carries 34 capacitors, 16 resistors, 6 ICs, 3 connectors, 3 diodes and 3 inductors.

It belongs with the iot & wireless designs in this gallery.

From the project

Biosensor for telehealth, patient monitoring, fall detection, dementia geofencing and cardiograms

Introducing the latest open-source project from Teklabs Digital™, a sophisticated state-of-the-art IoT biosensor for patient monitoring, telehealth, pressure are management in hospitals, cardiac monitoring, fall detection and dementia geofencing. This community project, released under an open source license, showcases our commitment to pushing the boundaries of digital design innovation.

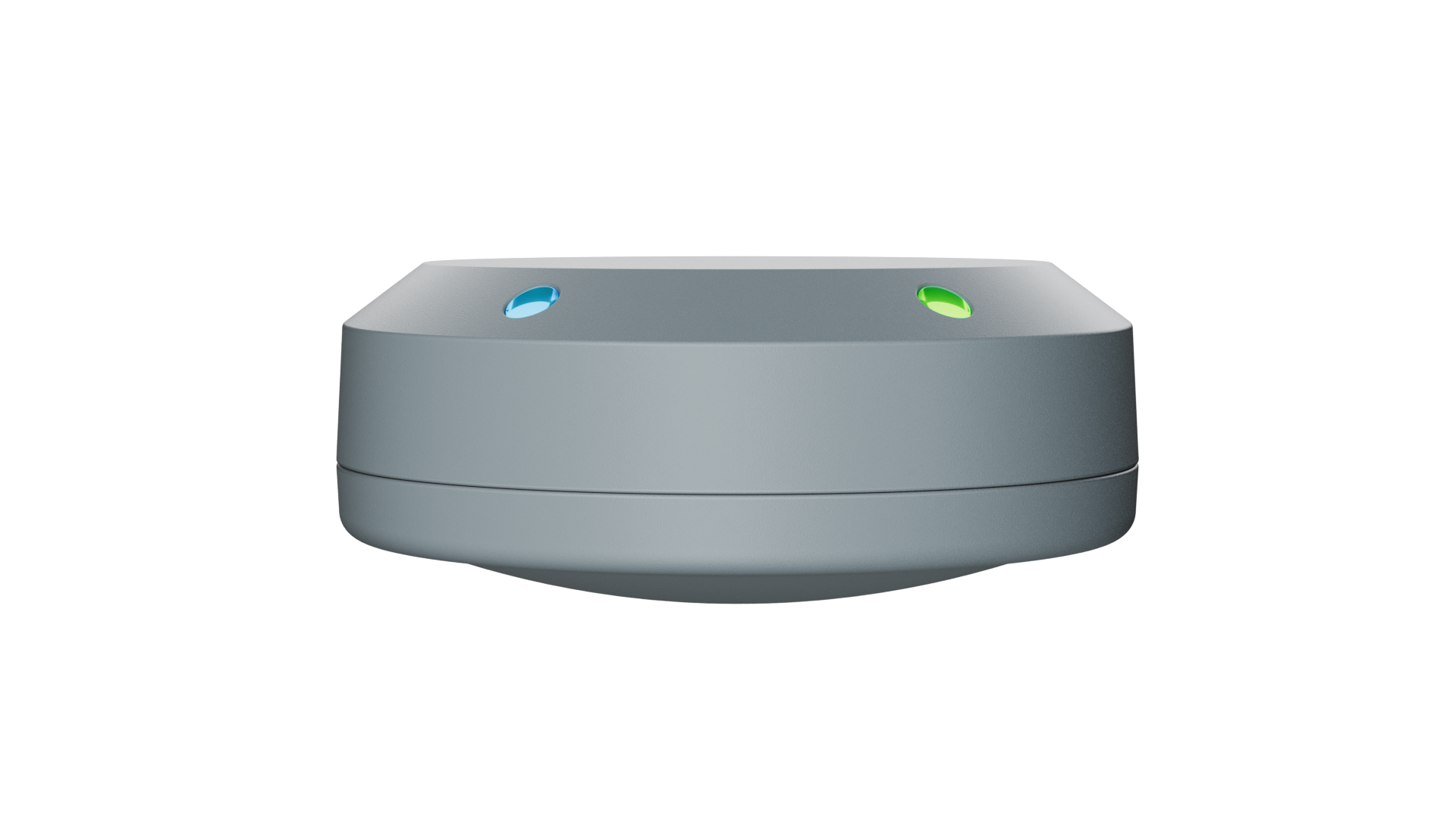

TekTag BioSensor, from the project README
From the project README

Main components on the TekTag BioSensor

STM32WB55VGY6TR - SeqMLPF-WB55-01E3BQ51052BYFPTLV75533PDRVKTD2052LSM6DSV16XTR

TekTag BioSensor bill of materials (BOM)

77 components, 48 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32WB55VGY6TR - Seq
U1
1
MLPF-WB55-01E3
U3
1
BQ51052BYFP
U4
1
TLV75533PDRV
U5
1
KTD2052
U6
1
LSM6DSV16XTR
U7
1
Motor_DC
M1
2
2N7002
Q1, Q2
1
32MHZ
32MHz
Y1
1
32768KHZ
32768kHz
Y2
1
SWD Trace
J1
1
Touch FFC
J2
1
ExtBatt
J3
1
BLE Antenna
AE1
1
Bridge
BOOT0
1
Battery_Cell
BT1
1
Buzzer
BZ1
1
5V Trace
JP1
1
Batt Source
JP2
1
10k???
TH1
Show 28 more
QtyPartRefs
1
LEDA
D1
1
LEDB
D2
1
1N4148
D3
1
10UH
10uH
L1
1
10NH
10nH
L2
1
RX Coil
L3
2
18PF
18pF
C1, C2
2
12PF
12pF
C3, C4
1
4.7UF
4.7uF
C6
9
100NF
100nF
C7, C8, C9, C10, C11, C12, C13, C14 +1
3
C1
C16, C17, C18
3
C2
C19, C20, C21
2
0.47UF
0.47uF
C22, C27
2
22NF
22nF
C23, C26
2
10NF
10nF
C24, C25
2
10UF
10uF
C28, C29
4
10UF
10uF
C30, C31, C32, C33
1
1UF
1uF
C34
1
47NF
47nF
C35
6
1K
R1, R2, R12, R13, R14, R15
2
47K
R3, R8
1
2K4
R4
1
100K
R5
1
820R
R6
1
220R
R7
1
3.3M
R9
2
1M
R10, R11
1
1.5M
R16

TekTag BioSensor design files

The KiCad project lives in the teklabsdigital/TekTag repository on GitHub; these links point at the commit this page was built from.

TekTag BioSensor: common questions

What microcontroller does the TekTag BioSensor use?

The TekTag BioSensor is built around the STM32WB55VGY6TR - Seq, from the STM32 family.

How big is the TekTag BioSensor PCB?

The TekTag BioSensor measures 26 × 25 mm, has 6 copper layers and is 1 mm thick.

How many components are on the TekTag BioSensor?

77 components, from 48 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TekTag BioSensor design files?

From the teklabsdigital/TekTag repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the TekTag BioSensor design in my own project?

Yes, under the terms of its MIT license, which teklabsdigital chose for the repository.

Can I test firmware for the TekTag BioSensor without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
