Rp2350b launchpad PCB layout, top view — open source RP2040/RP2350 board by Terstegge

About the Rp2350b launchpad PCB

Rp2350b launchpad is an open source RP2040/RP2350 PCB design by Terstegge, published on GitHub. It is a 2-layer board measuring 58.4 × 83.8 mm, with 122 components from 54 distinct parts.

Its main chip is the C424093, from the RP2040/RP2350 family. Other key parts include the C2468807, C22466451, C571260, C2040 and C2940197. By type, the board carries 40 capacitors, 33 resistors, 16 ICs, 16 connectors, 6 diodes and 5 switches.

It belongs with the power & battery designs in this gallery.

From the project

This repository contains the KiCad design files for a TI-style Launchpad board with the RP2350B microcontroller. The board has the following features:

This repository contains the KiCad design files for a TI-style Launchpad board with the RP2350B microcontroller. The board has the following features:

- RP2350B microcontroller with 48 GPIOs (8 of these can be used as ADC inputs) - 8MB of flash and 8MB of PSRAM - A single red LED (connected to GPIO 38). Can be disabled with a jumper. - Eight WS2812 RGB LEDs (connected to GPIO 39) - A reset button - Two user buttons (S1/S2 connected to GPIO 28/29) - USB-C socket connected to the target RP2350 If the target USB interface is operated in host mode, the 5V power supply can be enabled with a…

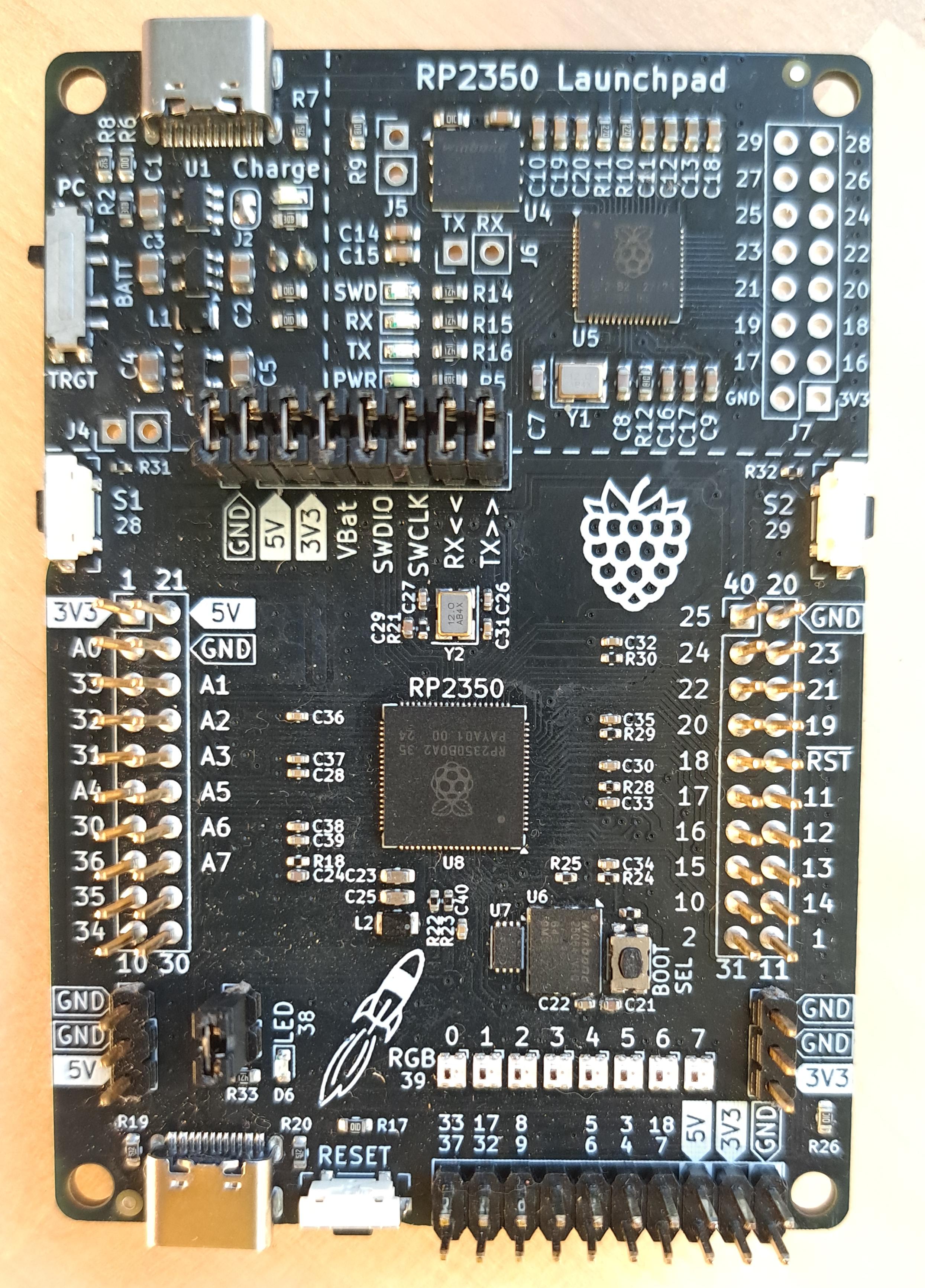

Rp2350b launchpad, from the project README
From the project README

Main components on the Rp2350b launchpad

C424093C2468807C22466451C571260C2040C2940197C3040877C42415655C965555

Rp2350b launchpad bill of materials (BOM)

122 components, 54 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C424093
MCP73831
U1
1
C2468807
XC9142B50C
U2
1
C22466451
XC6220B33
U3
1
C571260
25Q32
U4
1
C2040
RP2040
U5
1
C2940197
25Q64
U6
1
C3040877
APS6404L-3SQR
U7
1
C42415655
RP2350_80QFN
U8
8
C965555
WS2812B-2020
U9, U10, U11, U12, U13, U14, U15, U16
2
C20625731
12MHz
Y1, Y2
1
Target Isolation Jumpers
J1
1
Jumper
J2
1
LiPo 3,7V Batt.
J3
2
Jumper
J4, J11
1
DBG_PRGM
J5
1
UART_DBG
J6
1
DGB Exp. Header
J7
3
Jumper
J8, J9, J10
1
LP Header left
J12
2
PWR Header
J13, J16
Show 34 more
QtyPartRefs
1
LP Extension Heder
J14
1
LP Header right
J15
1
C240289
S1
S1
1
C240289
S2
S2
1
C221842
Power Select
SW1
1
C240289
RESET
SW2
1
C221680
BOOT
SW3
2
C2837092
USB-C Connector
USB1, USB2
1
C84269
Charge
D1
1
C84269
PWR
D2
1
C2288
LED BLUE
D3
1
C12624
LED GREEN
D4
1
C2286
LED RED
D5
1
C2286
LED
D6
2
C42411119
4u7
L1, L2
5
C45783
22u
C1, C2, C3, C4, C5
10
C14663
100nF
C6, C9, C10, C14, C15, C16, C17, C18 +2
2
C1644
15pF
C7, C8
3
C15849
1uF
C11, C12, C13
3
C23733
4u7
C21, C24, C29
13
C1525
100nF
C22, C28, C30, C31, C32, C33, C34, C35 +5
2
C19666
4u7
C23, C25
2
C1548
15pF
C26, C27
3
C22975
2k
R1, R2, R5
4
C25803
100k
R3, R4, R6, R17
4
C23186
5k1
R7, R8, R19, R20
2
C21190
1k
R9, R12
2
C25190
27
R10, R11
2
C25804
10k
R13, R26
4
C23179
470
R14, R15, R16, R33
1
C25161
33
R18
7
C11702
1k
R21, R27, R28, R29, R30, R31, R32
2
C137890
27
R22, R23
2
C25531
10k
R24, R25

Rp2350b launchpad design files

The KiCad project lives in the Terstegge/rp2350b-launchpad-PCB repository on GitHub; these links point at the commit this page was built from.

Rp2350b launchpad: common questions

What microcontroller does the Rp2350b launchpad use?

The Rp2350b launchpad is built around the C424093, from the RP2040/RP2350 family.

How big is the Rp2350b launchpad PCB?

The Rp2350b launchpad measures 58.4 × 83.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rp2350b launchpad?

122 components, from 54 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rp2350b launchpad design files?

From the Terstegge/rp2350b-launchpad-PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rp2350b launchpad design in my own project?

The repository has no license, so all rights stay with Terstegge. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rp2350b launchpad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
