About the Attnode addon mh z19 PCB

Attnode addon mh z19 is an open source PCB design by theArcher73, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 30.5 × 37.3 mm, with 12 components from 9 distinct parts.

Other key parts include the MCP1703T-3302E_CB. By type, the board carries 5 connectors, 3 diodes, 2 capacitors, 1 IC and 1 resistor.

It belongs with the sensors designs in this gallery.

From the project

small functional CO2-sensor based on attnode v3 and MH-Z19

pictures from @seiichiro0185 |   ---------------------------------------------------------------------- | -------- |   |

You can find more information and the latest firmware at attno.de v3. @seiichiro0185 is continuously developing the software, which is why it is only linked here.

This pcb allows the extension of the attno.de v3 with the possibility to be operated with 5V-15V operating voltage as well as CO2 measurement by means of MH-Z19.

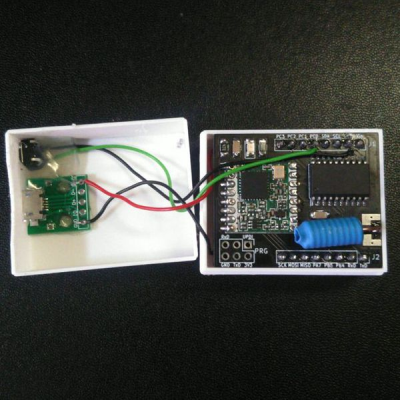

Attnode addon mh z19, from the project README — From the project README

Main components on the Attnode addon mh z19

MCP1703T-3302E_CB

Attnode addon mh z19 bill of materials (BOM)

12 components, 9 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	MCP1703T-3302E_CB MCP1703T	SOT95P255X145-3N	U2
2	attnode	PinHeader_1x08_P2.54mm_Vertical	J1, J2
1	MZ-H19	PinHeader_1x05_P2.54mm_Vertical	J3
1	MZ-H19	PinHeader_1x04_P2.54mm_Vertical	J4
1	SM04B-SRSS-TBT(LF)(SN)	JST_SM04B-SRSS-TB(LF)(SN)	J5
1	1N4148	D_1206_3216Metric_Pad1.42x1.75mm_HandSolder	D1
2	WS2812B	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D2, D3
2	1uF	C_1206_3216Metric_Pad1.33x1.80mm_HandSolder	C1, C2
1	4K7 4k7	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R1

Attnode addon mh z19 design files

The KiCad project lives in the theArcher73/attnode-addon_mh-z19 repository on GitHub; these links point at the commit this page was built from.

Layoutkicad-project/addon_MH-Z19.kicad_pcb
BOMaddon_MH-Z19-BOM.csv

Attnode addon mh z19: common questions

How big is the Attnode addon mh z19 PCB?

The Attnode addon mh z19 measures 30.5 × 37.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Attnode addon mh z19?

12 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Attnode addon mh z19 design files?

From the theArcher73/attnode-addon_mh-z19 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Attnode addon mh z19 design in my own project?

Yes, under the terms of its GPL-3.0 license, which theArcher73 chose for the repository.
