IMU Array Experimental Board - ICM-42688-P

thejamesrhodes·IMU-Quantisation-research-project·Array Electronics ICM42688P/IMU-Array ICM-42688-P.kicad_pcb

IMU Array Experimental Board - ICM-42688-P layout, top view — open source STM32 board by thejamesrhodes

About the IMU Array Experimental Board - ICM-42688-P

IMU Array Experimental Board - ICM-42688-P is an open source STM32 PCB design by thejamesrhodes, published on GitHub under the MIT license. It is a 4-layer board measuring 81.3 × 45.7 mm, with 84 components from 28 distinct parts.

Its main chip is the STM32F723ZETx, from the STM32 family. Other key parts include the ICM-42688-P, LT3045xDD, USBLC6-2P6 and XC6206P332MR. By type, the board carries 53 capacitors, 10 resistors, 9 ICs, 3 connectors, 2 crystals and 2 switches.

It belongs with the sensors and test & measurement designs in this gallery.

From the project

Research into quantisation effects in MEMS gyroscopes using custom STM32 hardware.

Custom STM32F723 hardware, firmware and analysis for measuring output-register quantisation noise in MEMS rate gyroscopes. Specifically gyroscopes that report an angular-rate register rather than an integrated angle increment.

This is a pre-publication research project. The preprint is not yet released. the results, figures and numbers in this repository are working values and are subject to change. Nothing here has been peer-reviewed. Preliminary Datasets are available on Zenodo

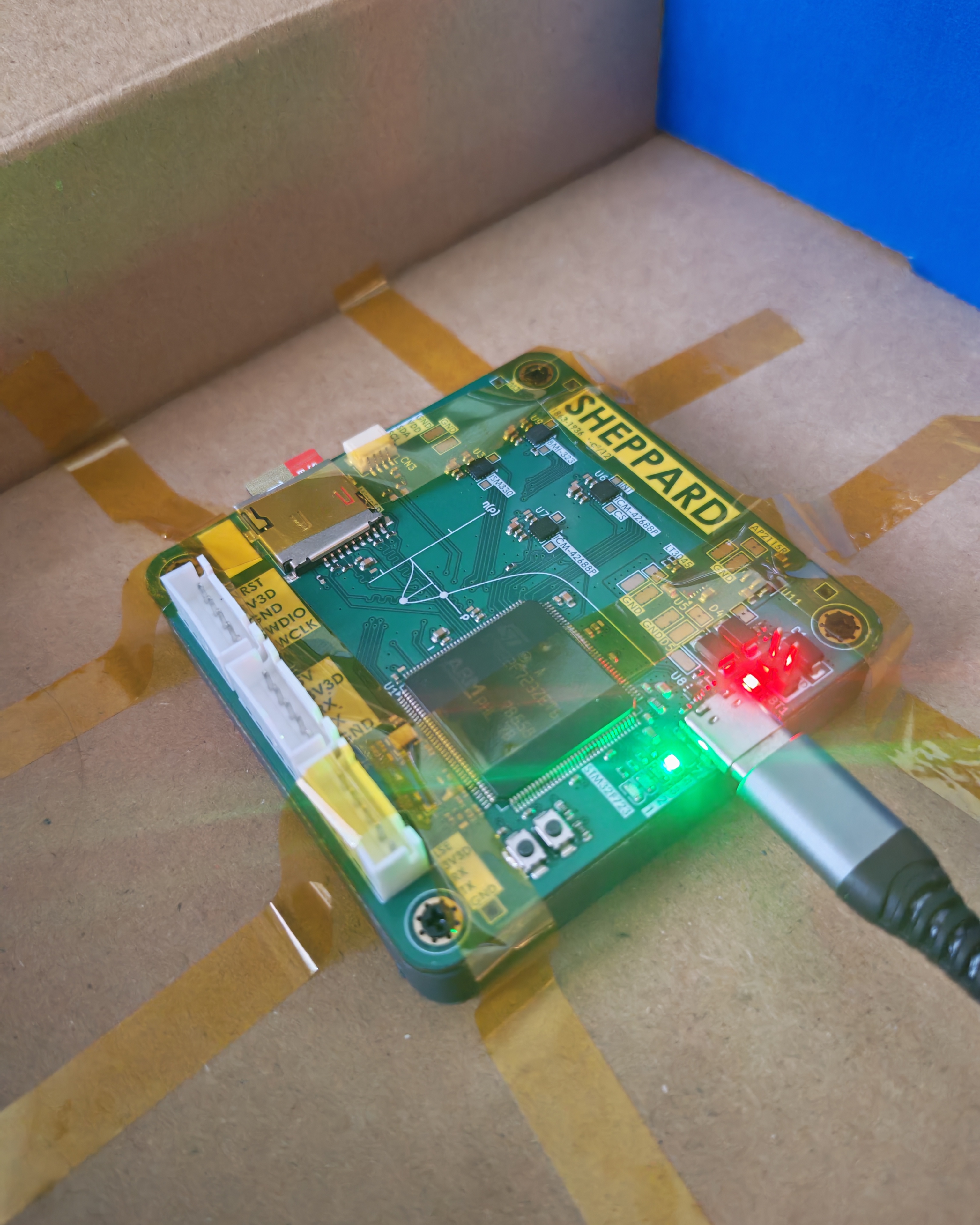

IMU Array Experimental Board - ICM-42688-P, from the project README
From the project README

Main components on the IMU Array Experimental Board - ICM-42688-P

ICM-42688-PLT3045xDDUSBLC6-2P6STM32F723ZETxXC6206P332MR

IMU Array Experimental Board - ICM-42688-P bill of materials (BOM)

84 components, 28 distinct parts.

QtyPartRefs
4
ICM-42688-P
TDK InvenSense
U1, U2, U3, U4
1
LT3045xDD
U5
1
USBLC6-2P6
U6
1
STM32F723ZETx
U7
1
XC6206P332MR
Torex Semicon
U8
1
XC6206P332MR
Torex Semicon
U9
1
ASDM1-24_000MHZ-LC-T
Abracon LLC
X1
1
ASH7KW-32_768KHZ-L-T
Abracon LLC
X2
2
PINHD_1x4_Male
J1, J2
1
KH-TYPE-C-16P
J7
4
~
H1, H2, H3, H4
2
TS-1088-AR02016
XUNPU
SW3, SW4
1
KT-0603R
Hubei KENTO Elec
LED1
6
10nF
Samsung Electro-Mechanics
C1, C6, C11, C12, C45, C47
27
100nF
Samsung Electro-Mechanics
C2, C3, C5, C7, C9, C10, C13, C14 +19
7
2.2uF
Samsung Electro-Mechanics
C4, C8, C15, C16, C32, C34, C43
4
1uF
Samsung Electro-Mechanics
C17, C21, C50, C51
3
10uF
Samsung Electro-Mechanics
C18, C20, C49
1
470nF
Samsung Electro-Mechanics
C19
1
4.7uF
Samsung Electro-Mechanics
C33
Show 8 more
QtyPartRefs
4
1uF
Samsung Electro-Mechanics
C35, C37, C39, C41
1
33kΩ
UNI-ROYAL(Uniroyal Elec)
R1
1
200Ω
UNI-ROYAL(Uniroyal Elec)
R2
1
3kΩ
UNI-ROYAL(Uniroyal Elec)
R3
1
100kΩ
UNI-ROYAL(Uniroyal Elec)
R4
2
10kΩ
UNI-ROYAL(Uniroyal Elec)
R5, R12
3
5.1kΩ
UNI-ROYAL(Uniroyal Elec)
R6, R7, R13
1
330Ω
UNI-ROYAL(Uniroyal Elec)
R8

IMU Array Experimental Board - ICM-42688-P design files

The KiCad project lives in the thejamesrhodes/IMU-Quantisation-research-project repository on GitHub; these links point at the commit this page was built from.

IMU Array Experimental Board - ICM-42688-P: common questions

What microcontroller does the IMU Array Experimental Board - ICM-42688-P use?

The IMU Array Experimental Board - ICM-42688-P is built around the STM32F723ZETx, from the STM32 family.

How big is the IMU Array Experimental Board - ICM-42688-P?

The IMU Array Experimental Board - ICM-42688-P measures 81.3 × 45.7 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the IMU Array Experimental Board - ICM-42688-P?

84 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the IMU Array Experimental Board - ICM-42688-P design files?

From the thejamesrhodes/IMU-Quantisation-research-project repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the IMU Array Experimental Board - ICM-42688-P design in my own project?

Yes, under the terms of its MIT license, which thejamesrhodes chose for the repository.

Can I test firmware for the IMU Array Experimental Board - ICM-42688-P without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
