Esp32-pico module

thingler·esp32-pico-module

Esp32-pico module layout, top view — open source ESP32 board by thingler
Simulate this board

About the Esp32-pico module

Esp32-pico module is an open source ESP32 PCB design by thingler, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 20.6 × 15.6 mm, with 9 components from 7 distinct parts.

Its main chip is the ESP32_PICO_V3, from the ESP32 family. Other key parts include the Trace. By type, the board carries 3 capacitors, 2 ICs, 2 connectors, 1 antenna and 1 resistor.

It belongs with the iot & wireless and dev boards & breakouts designs in this gallery.

From the project

Thingler ESP32-PICO Module

Thingler ESP32-PICO Module is a small size ESP32 development board with a minimum of required external components (including antenna). It's in the size of 20.60 mm x 15.60 mm with 16 pins and can be placed on a breadboard for prototyping. The module can be powered and programmed with the Thingler ESP32 Programmer but can also be powered with a separate power supply for small-sized designs.

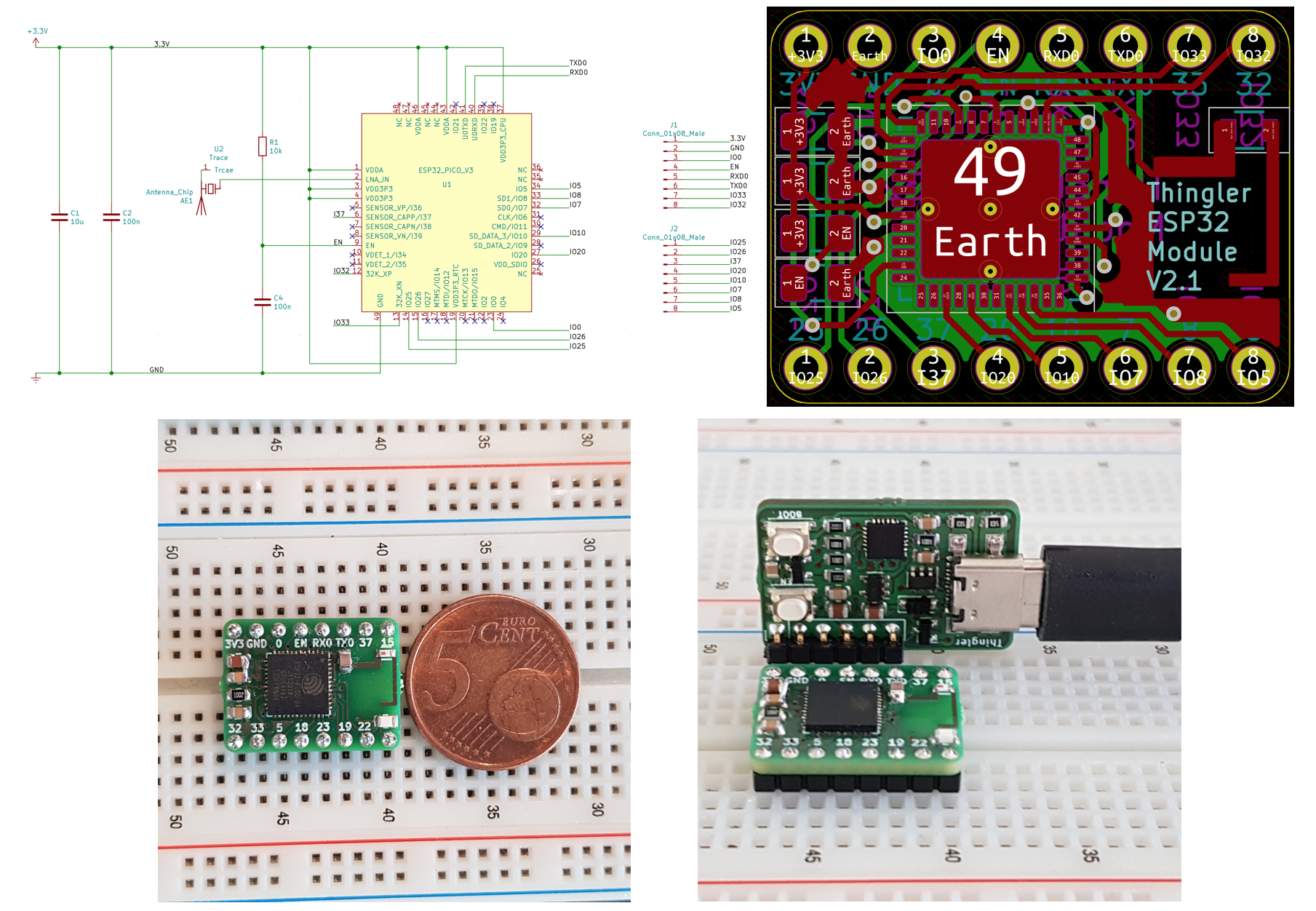

Esp32-pico module, from the project README
From the project README

Main components on the Esp32-pico module

ESP32_PICO_V3Trace

Esp32-pico module bill of materials (BOM)

9 components, 7 distinct parts.

QtyPartRefs
1
ESP32_PICO_V3
U1
1
Trace
U2
2
Conn_01x08_Male
J1, J2
1
Antenna_Chip
AE1
1
10u
C1
2
100n
C2, C4
1
10k
R1

Esp32-pico module design files

The KiCad project lives in the thingler/esp32-pico-module repository on GitHub; these links point at the commit this page was built from.

Esp32-pico module: common questions

What microcontroller does the Esp32-pico module use?

The Esp32-pico module is built around the ESP32_PICO_V3, from the ESP32 family.

How big is the Esp32-pico module?

The Esp32-pico module measures 20.6 × 15.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-pico module?

9 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-pico module design files?

From the thingler/esp32-pico-module repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Esp32-pico module design in my own project?

Yes, under the terms of its GPL-3.0 license, which thingler chose for the repository.

Can I test firmware for the Esp32-pico module without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
