TFESC02

ThunderFly-aerospace·TFESC02·hw/sch_pcb/TFESC02.kicad_pcb

TFESC02 PCB layout, top view — open source board by ThunderFly-aerospace

About the TFESC02 PCB

TFESC02 is an open source PCB design by ThunderFly-aerospace, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 45 × 45 mm, with 63 components from 31 distinct parts.

Other key parts include the MCF8329A1IREER and MIC5504-3.3YM5. By type, the board carries 23 resistors, 21 capacitors, 6 transistors, 5 diodes, 4 connectors and 2 ICs.

It belongs with the robotics & motion and sensors designs in this gallery.

From the project

ESC for BLDC motors for UAVs with I2C interface

The TFESC02 is a high-performance BLDC motor driver device designed specifically for unmanned aerial vehicle (UAV) applications. At its core uses the MCF8329A integrated circuit, which enables advanced Field Oriented Control (FOC) without requiring feedback sensors. The TFESC02 is optimized for integration into UAV systems via the I2C interface and is supported in PX4 autopilot firmware, providing a seamless solution for propulsion systems in small and micro UAVs.

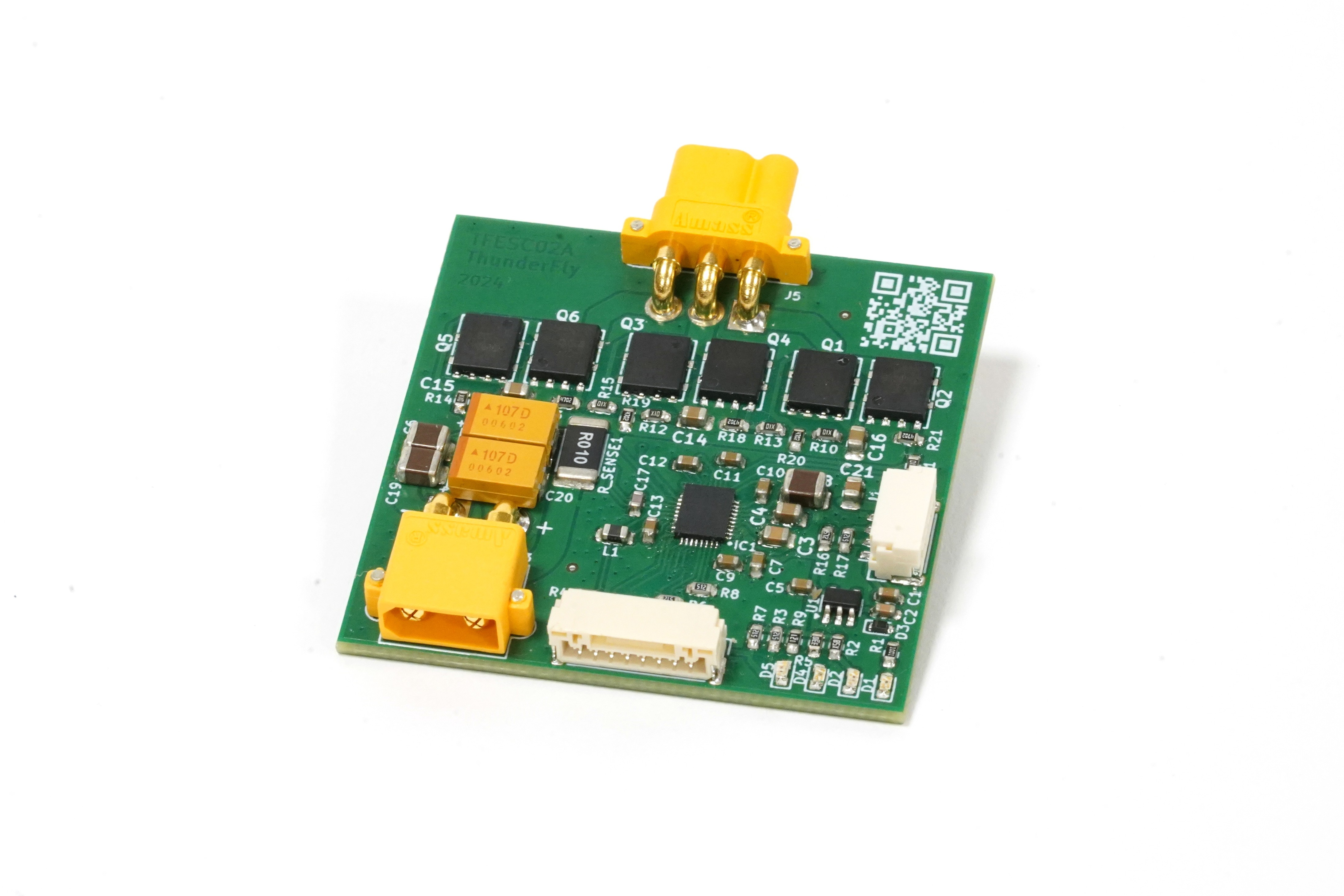

TFESC02, from the project README
From the project README

Main components on the TFESC02

MCF8329A1IREERMIC5504-3.3YM5

TFESC02 bill of materials (BOM)

63 components, 31 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCF8329A1IREER
IC1
1
MIC5504-3.3YM5
U1
6
DMT31M7LPS-13
DMTH3002LPS-13
Q1, Q2, Q3, Q4, Q5, Q6
1
SM04B-GHS-TB
J1
1
XT30PW-M
J3
1
SM08B-GHS-TB
J4
1
MR30PW-F
J5
1
WW25NR010FTL
0R01
R_SENSE1
1
YELLOW
D1
1
GREEN
D2
1
BZX585-B5V6.115
D3
1
BLUE
D4
1
RED
D5
1
BLM21BD601SN1D
FerriteChip
L1
1
10U
10u
C1
1
100N
100n
C2
1
100NF
100nF
C3
4
470nF
C4, C14, C15, C16
4
1u
C5, C7, C9, C13
3
10uF
C6, C8, C19
Show 11 more
QtyPartRefs
3
1u, 25V
C10, C11, C12
1
100P
100p
C17
2
100u, 25V
C18, C20
1
1UF
1uF
C21
1
1k
R1
1
75R
R2
7
5k1
R3, R4, R6, R7, R8, R16, R17
1
33R
R5
1
120R
R9
6
10R
R10, R11, R12, R13, R14, R15
6
47k
R18, R19, R20, R21, R22, R23

TFESC02 design files

The KiCad project lives in the ThunderFly-aerospace/TFESC02 repository on GitHub; these links point at the commit this page was built from.

TFESC02: common questions

How big is the TFESC02 PCB?

The TFESC02 measures 45 × 45 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TFESC02?

63 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TFESC02 design files?

From the ThunderFly-aerospace/TFESC02 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the TFESC02 design in my own project?

Yes, under the terms of its GPL-3.0 license, which ThunderFly-aerospace chose for the repository.
