TFSBEC01 PCB layout, top view — open source board by ThunderFly-aerospace

About the TFSBEC01 PCB

TFSBEC01 is an open source PCB design by ThunderFly-aerospace, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 45 × 30 mm, with 38 components from 25 distinct parts.

Other key parts include the ACS781LLRTR-050U-T, MIC5504-3.3YM5 and LMR14050. By type, the board carries 19 capacitors, 7 resistors, 4 connectors, 4 diodes, 3 ICs and 1 inductor.

It belongs with the robotics & motion and power & battery designs in this gallery.

From the project

High efficient switching power supply for UAV actuators.

Many devices in unmanned vehicles require a quality power supply, and it is very useful to know the actual and real consumption of these components. Our TFSBEC module is designed to provide power to servos, autopilot (flight controller), and other medium-power drone accessories. In case the user needs more current or two independent sources on his drone, for example, a separate source for avionics and power-consuming elements (actuators), it is possible to chain these modules.

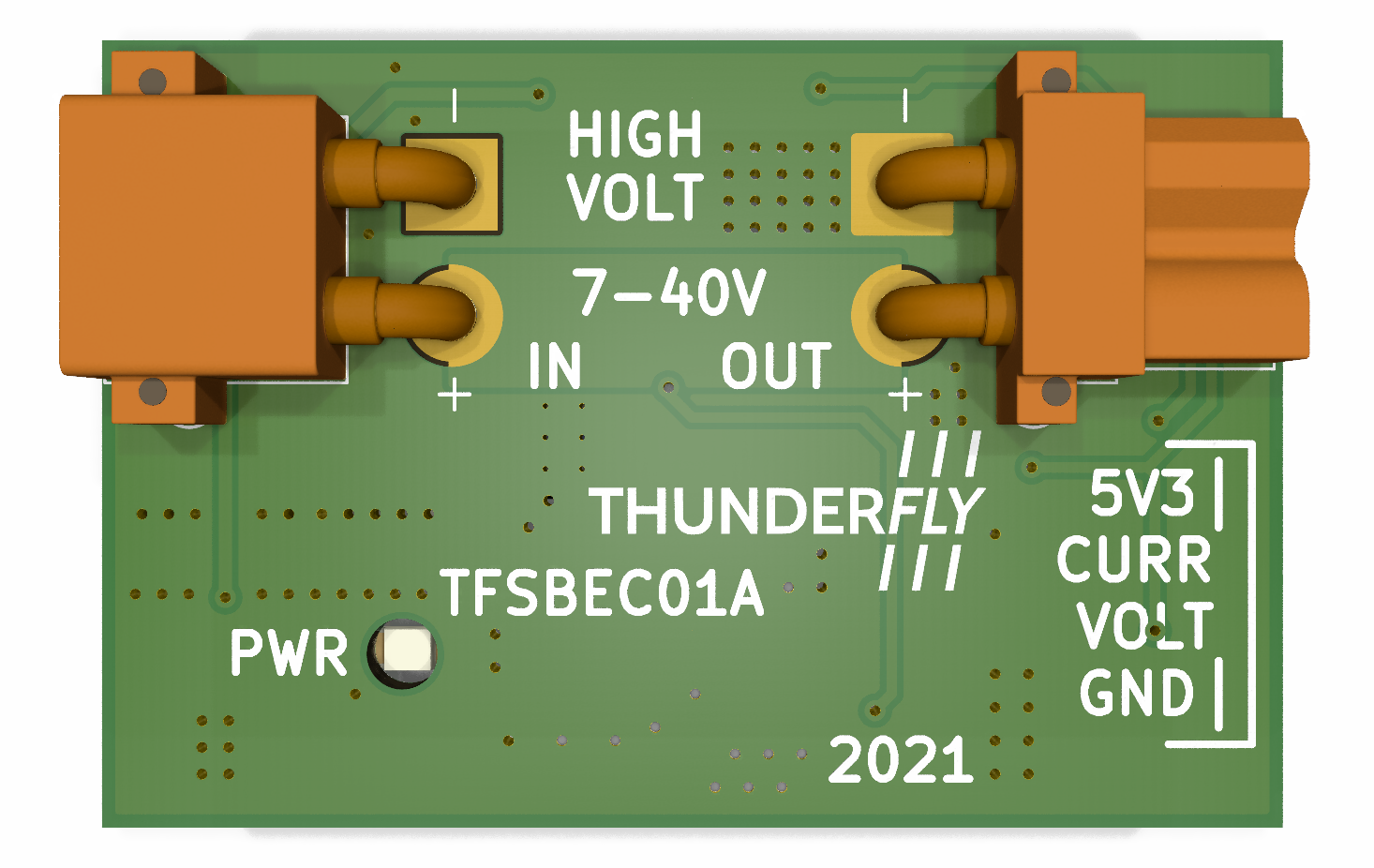

TFSBEC01, from the project README
From the project README

Main components on the TFSBEC01

ACS781LLRTR-050U-TMIC5504-3.3YM5LMR14050

TFSBEC01 bill of materials (BOM)

38 components, 25 distinct parts.

QtyPartRefs
1
ACS781LLRTR-050U-T
U1
1
MIC5504-3.3YM5
U2
1
LMR14050
U3
1
213226-0611
J1
1
SM06B-GHS-TB
J2
1
XT30PW-M
J18
1
XT30PW-F
J19
1
LED GREEN
D1
2
BZX585-B5V6.115
D2, D4
1
PDS760-13
D3
1
HCI1050-5R5
L1
8
10uF/50V
C1, C2, C6, C7, C8, C9, C10, C11
1
10uF
C3
3
100nF
C4, C5, C15
1
100nF/50V
C12
2
1uF
C13, C16
1
22nF
C14
2
100uF/6V3
C17, C18
1
?
C19
1
180R
R1
Show 5 more
QtyPartRefs
1
59kR
R2
1
13k7
R3
1
1k5
R4
2
R
R5, R6
1
?
R7

TFSBEC01 design files

The KiCad project lives in the ThunderFly-aerospace/TFSBEC01 repository on GitHub; these links point at the commit this page was built from.

TFSBEC01: common questions

How big is the TFSBEC01 PCB?

The TFSBEC01 measures 45 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TFSBEC01?

38 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the TFSBEC01 design files?

From the ThunderFly-aerospace/TFSBEC01 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TFSBEC01 design in my own project?

Yes, under the terms of its GPL-3.0 license, which ThunderFly-aerospace chose for the repository.
