Window curtain alarm

timbleman·Window_curtain_alarm·curtain_wiring/curtain_wiring.kicad_pcb

Window curtain alarm PCB layout, top view — open source ESP8266 board by timbleman

About the Window curtain alarm PCB

Window curtain alarm is an open source ESP8266 PCB design by timbleman, published on GitHub. It is a 2-layer board measuring 99.1 × 62.2 mm, with 21 components from 17 distinct parts.

Its main chip is the NodeMCU1.0(ESP-12E), from the ESP8266 family. By type, the board carries 7 connectors, 6 resistors, 4 capacitors, 1 IC, 1 module and 1 switch.

It belongs with the robotics & motion designs in this gallery.

From the project

A standalone alarm system that opens your curtain.

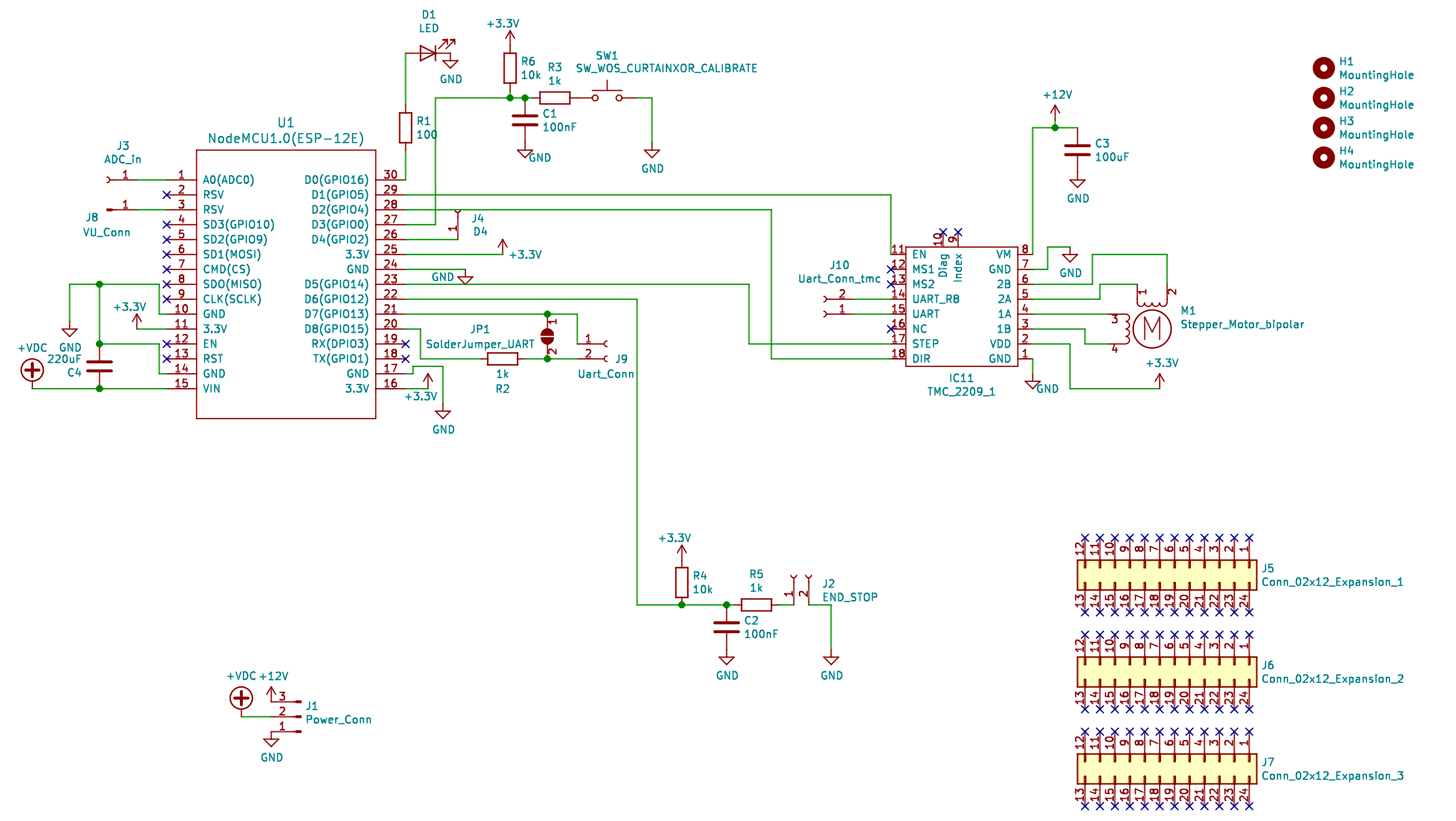

Window curtain alarm, from the project README
From the project README

Main components on the Window curtain alarm

NodeMCU1.0(ESP-12E)

Window curtain alarm bill of materials (BOM)

21 components, 17 distinct parts.

QtyPartRefs
1
NodeMCU1.0(ESP-12E)
U1
1
Stepper_Motor_bipolar
M1
1
Power_Conn
J1
1
END_STOP
J2
1
ADC_in
J3
1
D4
J4
1
VU_Conn
J8
1
Uart_Conn
J9
1
Uart_Conn_tmc
J10
1
SW_WOS_CURTAINXOR_CALIBRATE
SW1
1
LED
D1
2
100nF
C1, C2
1
100uF
C3
1
220uF
C4
1
100
R1
3
1k
R2, R3, R5
2
10k
R4, R6

Window curtain alarm design files

The KiCad project lives in the timbleman/Window_curtain_alarm repository on GitHub; these links point at the commit this page was built from.

Window curtain alarm: common questions

What microcontroller does the Window curtain alarm use?

The Window curtain alarm is built around the NodeMCU1.0(ESP-12E), from the ESP8266 family.

How big is the Window curtain alarm PCB?

The Window curtain alarm measures 99.1 × 62.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Window curtain alarm?

21 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Window curtain alarm design files?

From the timbleman/Window_curtain_alarm repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Window curtain alarm design in my own project?

The repository has no license, so all rights stay with timbleman. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Window curtain alarm without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
