HDMI2USB-TOFE-Milkymist

timvideos·HDMI2USB-TOFE-Milkymist·board/TOFE-Milkymist.kicad_pcb

HDMI2USB-TOFE-Milkymist PCB layout, top view — open source board by timvideos

About the HDMI2USB-TOFE-Milkymist PCB

HDMI2USB-TOFE-Milkymist is an open source PCB design by timvideos, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 110 × 116.3 mm, with 115 components from 55 distinct parts.

Other key parts include the PC817, LM4550, 7805_N, ST3232CDR and SN74LVC1G17. By type, the board carries 39 capacitors, 33 resistors, 9 ICs, 8 connectors, 8 relays and 7 diodes.

It belongs with the audio designs in this gallery.

From the project

A board which adds control interfaces and audio for Milkymist compatibility for use with TOFE-8x hosts like the Numato Opsis.

The Numato Opsis board is already very similar to the Milkymist M1 and Mixxeo devices created by M-Labs, but lacks the DJ hardware interfaces. This expansion board adds these missing components.

This board can be ordered from the Numato Opsis page on CrowdSupply.com.

This extension board has the following features;

* AC‘97 compatible audio interface with Microphone, Headphones, Line In + Out (on standard 3.5mm connectors).

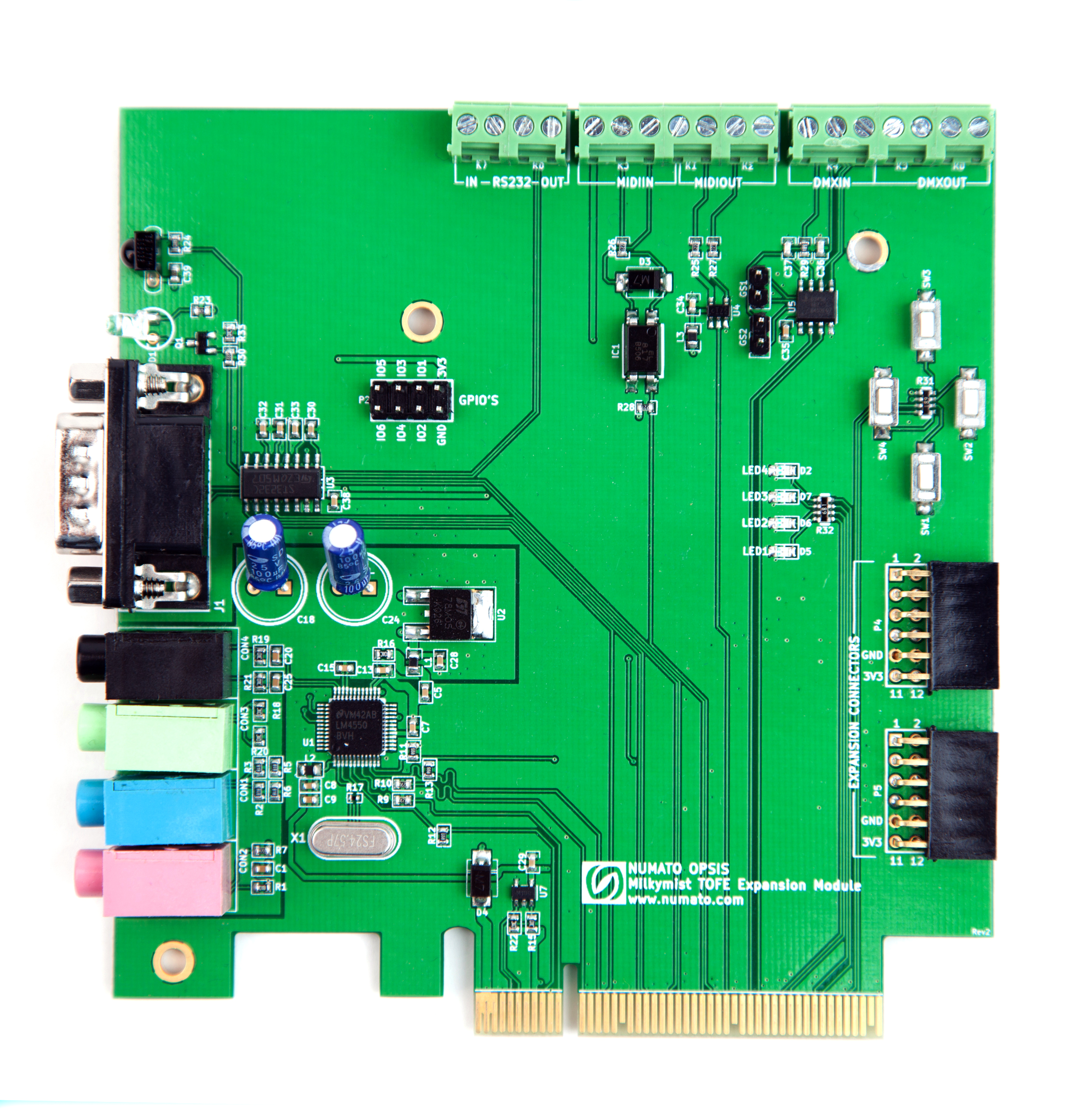

HDMI2USB-TOFE-Milkymist, from the project README
From the project README

Main components on the HDMI2USB-TOFE-Milkymist

PC817LM45507805_NST3232CDRSN74LVC1G17ISL83490IR-RX24AA01/24LC01BTOFE-8X

HDMI2USB-TOFE-Milkymist bill of materials (BOM)

115 components, 55 distinct parts.

QtyPartRefs
1
PC817
IC1
1
LM4550
U1
1
7805_N
U2
1
ST3232CDR
U3
1
SN74LVC1G17
U4
1
ISL83490
U5
1
IR-RX
U6
1
24AA01/24LC01B
U7
1
TOFE-8X
U8
1
TRANSISTOR-NPN
Q1
1
CRYSTAL
X1
4
AUDIO_JACK_3535NG
CON1, CON2, CON3, CON4
1
DB9
J1
1
CONN_4X2
P2
2
CONN_6X2
P4, P5
2
GS2
GS1, GS2
6
CONN_2
K1, K2, K5, K6, K7, K8
2
CONN_3
K3, K4
4
SW_PUSH
SW1, SW2, SW3, SW4
1
IR-LED
D1
Show 35 more
QtyPartRefs
4
LED
D2, D5, D6, D7
2
DIODE
D3, D4
3
4.7uH
L1, L2, L3
8
1uF
C1, C2, C3, C9, C12, C16, C20, C25
5
220pF
C4, C21, C22, C26, C27
7
0.1uF
C5, C7, C8, C11, C13, C28, C33
1
2.2uF
C6
2
100uF
C10, C17
1
3.3uF
C14
1
22nF
C15
2
220uF
C18, C24
2
20pF
C19, C23
4
0.1uF
C29, C30, C31, C32
3
0.1uF
C34, C35, C38
2
15pF
C36, C37
1
10uF
C39
1
1K
R1
4
6.81K
R2, R3, R5, R6
1
47K
R4
1
47R
R7
1
2.2K
R8
2
27.4
R9, R10
3
4.75K
R11, R12, R13
1
0R
R14
6
10K
R15, R18, R19, R20, R21, R22
1
R
R16
1
1M
R17
1
47R
R23
1
1K
R24
4
220R
R25, R26, R27, R28
1
60R
R29
1
2K2
R30
1
680R
R31
1
10K
R32
1
10K
R33

HDMI2USB-TOFE-Milkymist design files

The KiCad project lives in the timvideos/HDMI2USB-TOFE-Milkymist repository on GitHub; these links point at the commit this page was built from.

HDMI2USB-TOFE-Milkymist: common questions

How big is the HDMI2USB-TOFE-Milkymist PCB?

The HDMI2USB-TOFE-Milkymist measures 110 × 116.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HDMI2USB-TOFE-Milkymist?

115 components, from 55 distinct parts. The full bill of materials is listed on this page.

Where can I download the HDMI2USB-TOFE-Milkymist design files?

From the timvideos/HDMI2USB-TOFE-Milkymist repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the HDMI2USB-TOFE-Milkymist design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which timvideos chose for the repository.
